8-Ton Spider Crane
Used in construction, warehousing, logistics, and landscaping,great for lifting, transportation, and maintenance tasks.
8-Ton Spider Crane Instruction

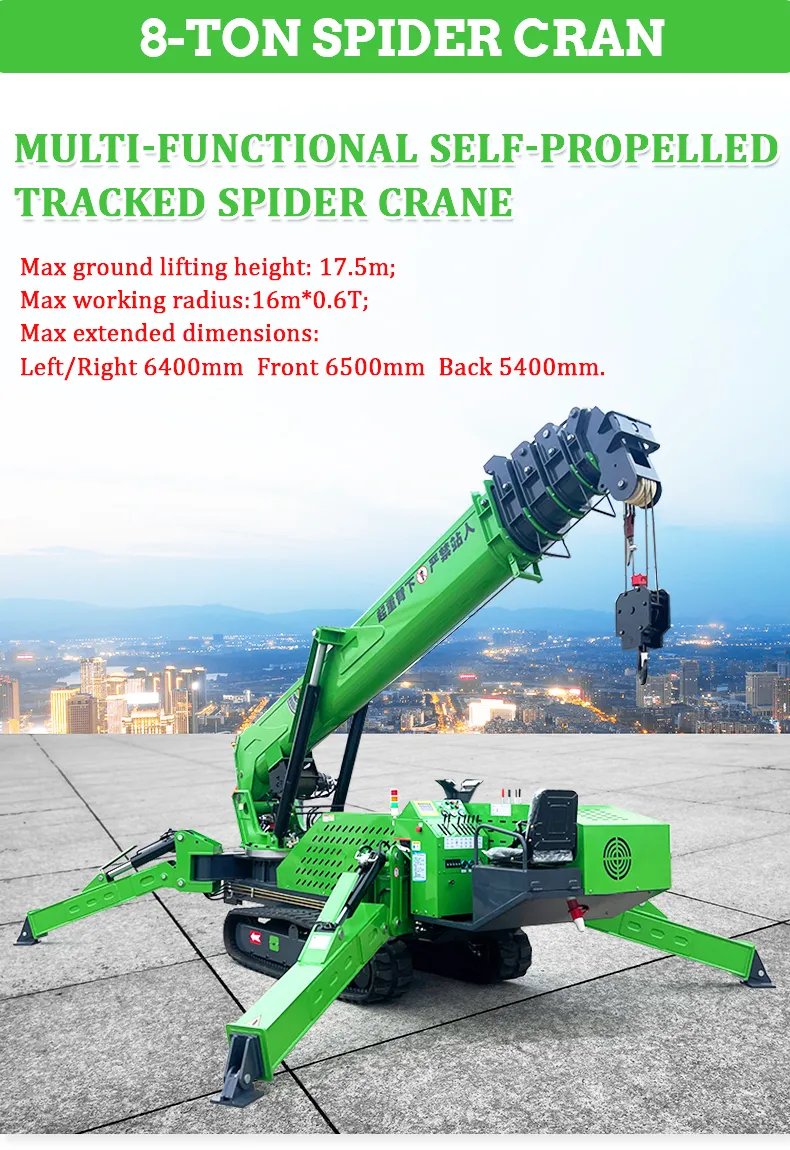

MULTI-FUNCTIONAL SELF-PROPELLEDTRACKED SPIDER CRANE
Max ground lifting height: 17.5m;
Max working radius:16m*0.6T;
Max extended dimensions:
Left/Right 6400mm Front 6500mmBack 5400mm.
Wide Application
Used in construction, warehousing, logistics, and landscaping,great for lifting, transportation, and maintenance tasks.

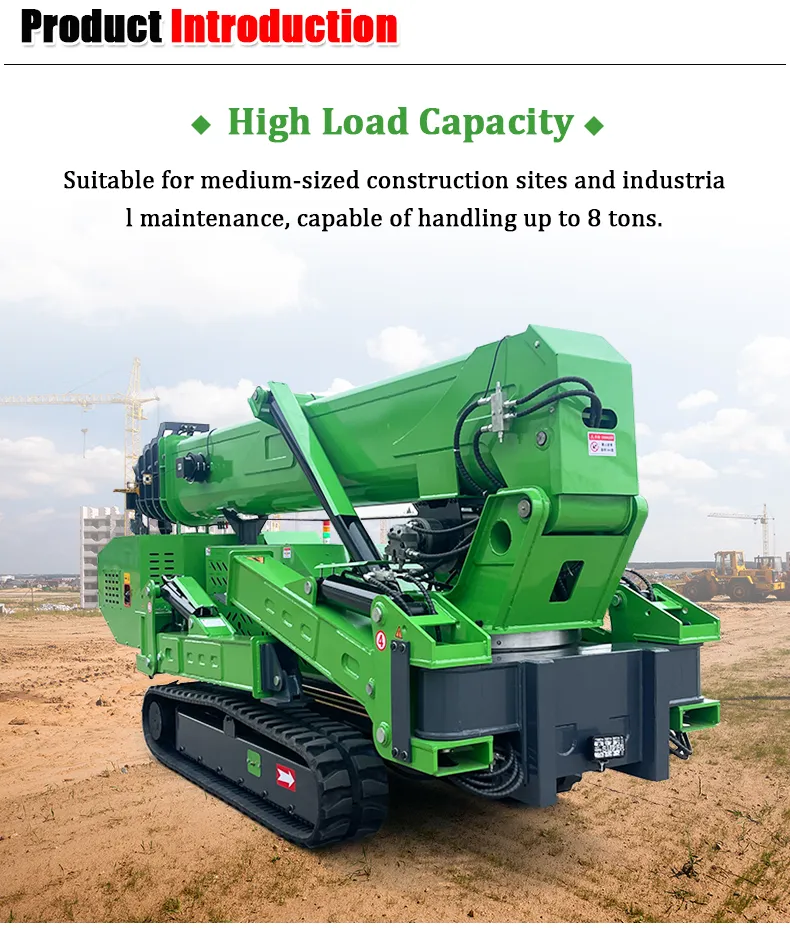

High Load Capacity
Suitable for medium-sized construction sites and industriaI maintenance, capable of handling up to 8 tons.

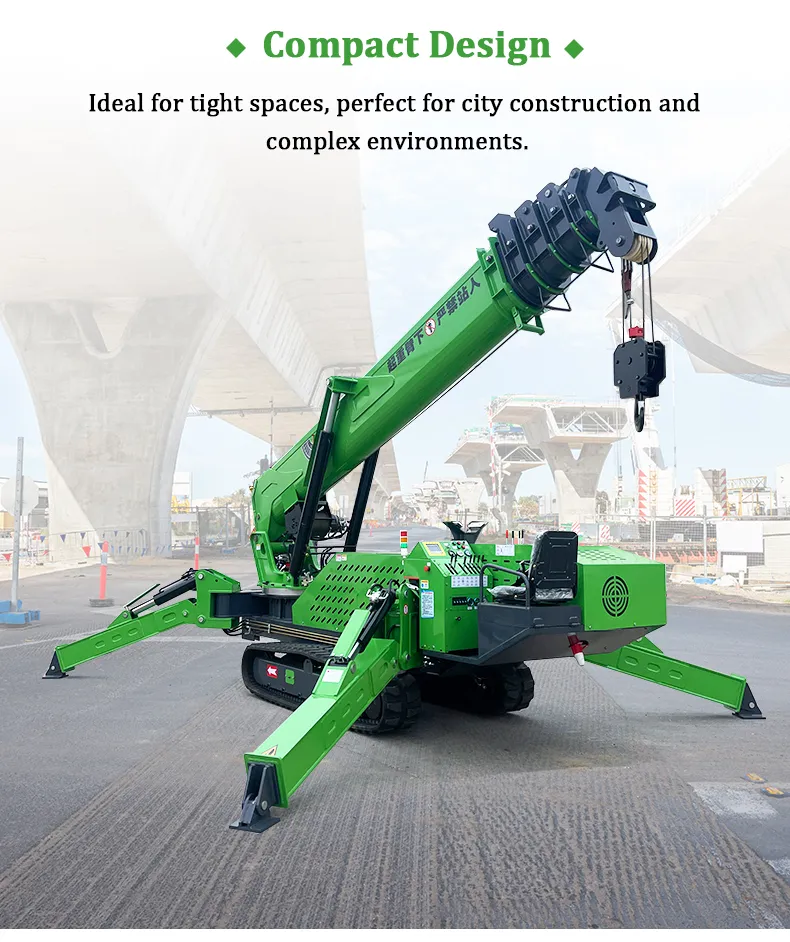

Compact Design
Ideal for tight spaces, perfect for city construction andcomplex environments.

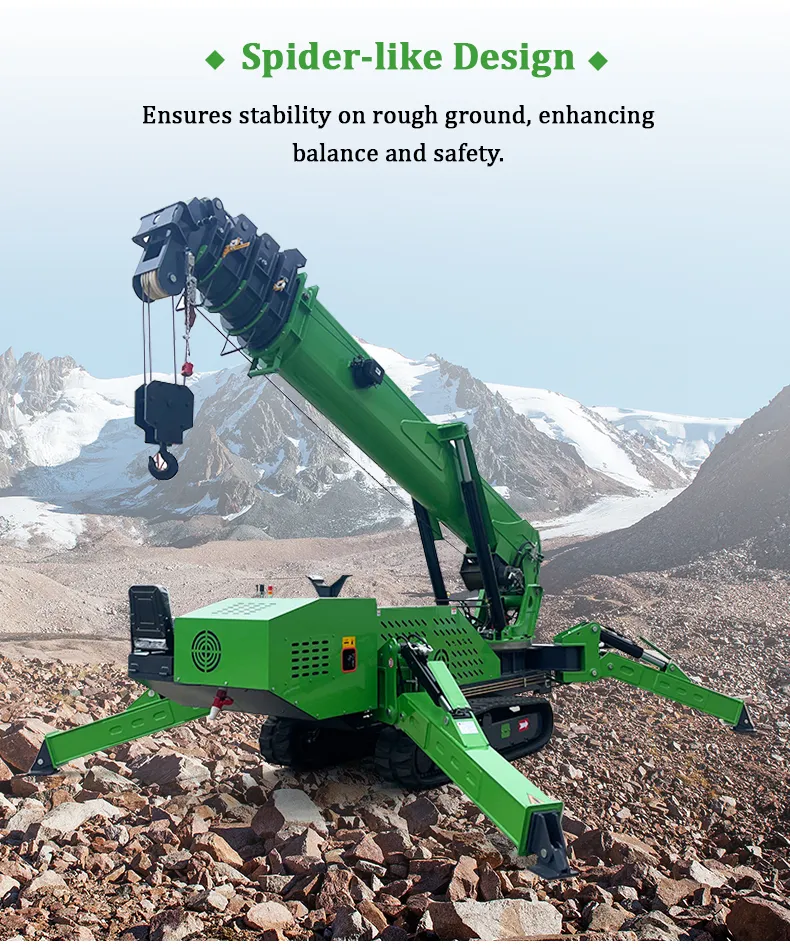

Spider-like Design
Ensures stability on rough ground, enhancingbalance and safety.

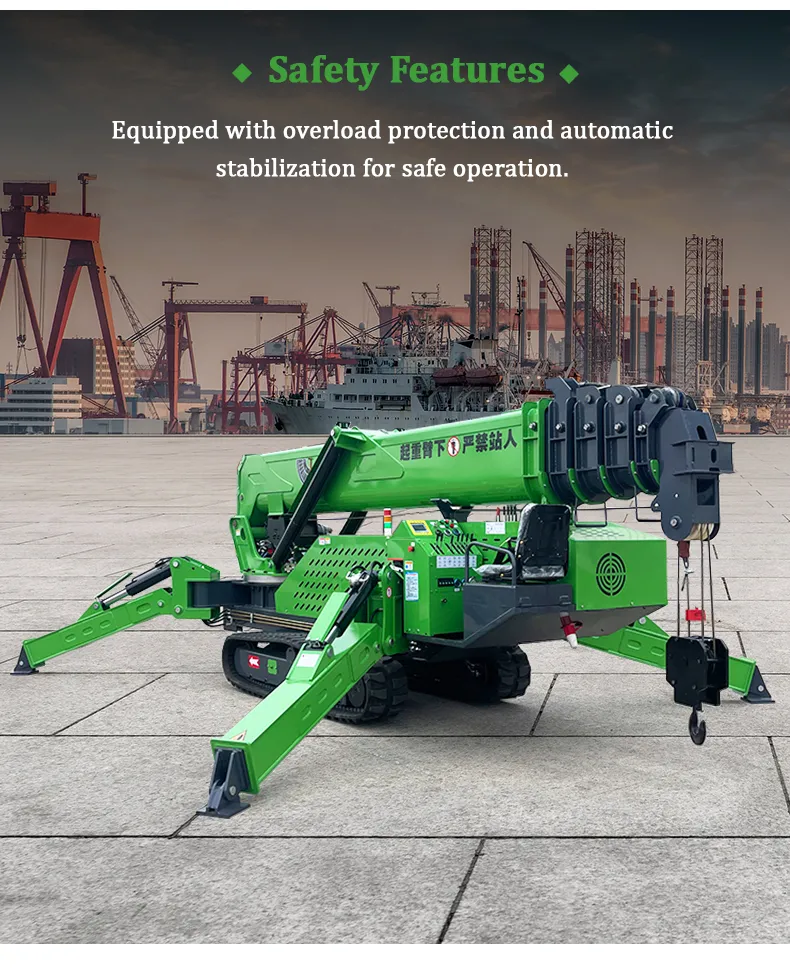

Safety Features
Equipped with overload protection and automaticstabilization for safe operation.

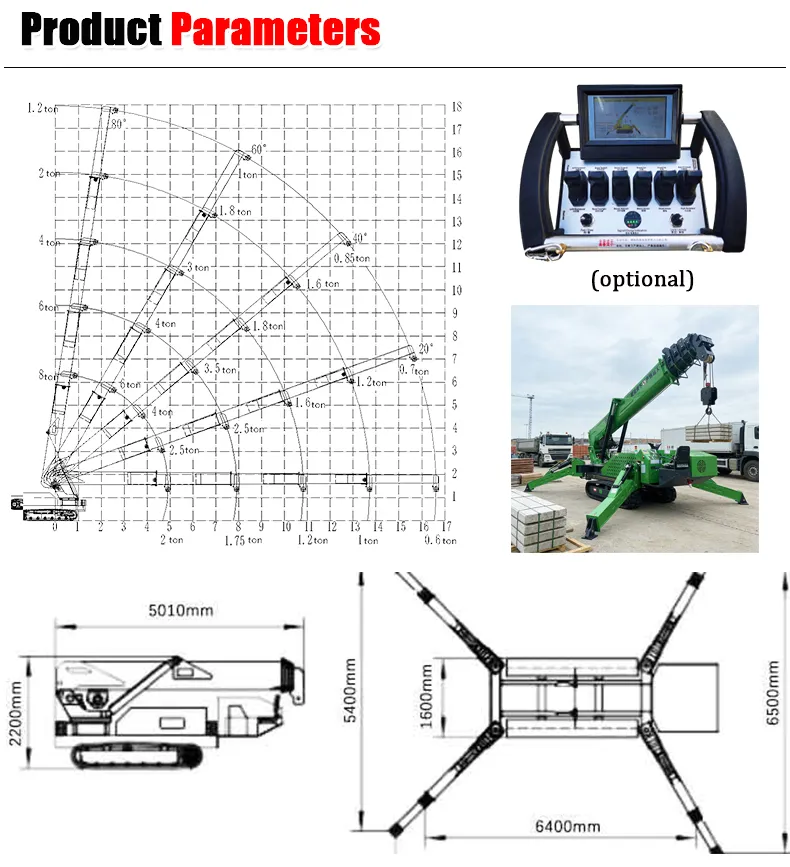

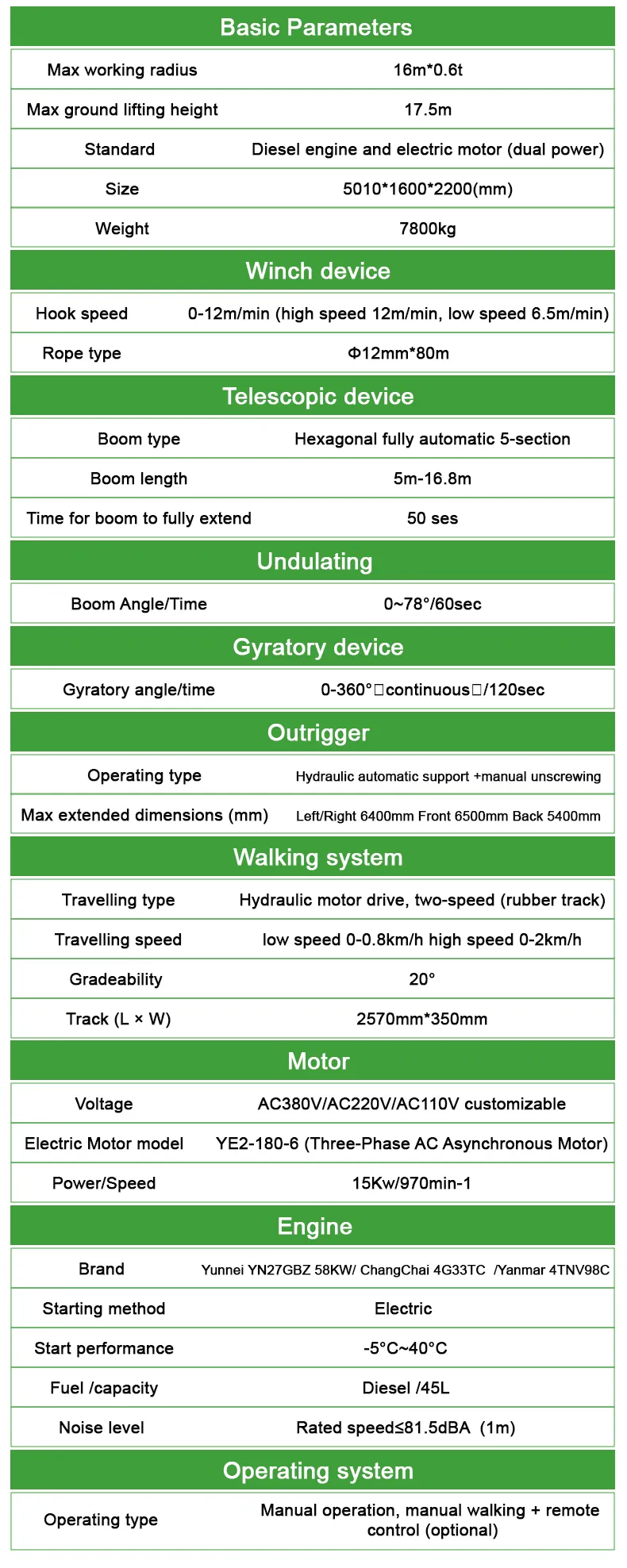

8-Ton Spider Crane Parameter
| Basic Parameters | |
| Max working radius | 16m*0.6t |
| Max ground lifting height | 17.5m |
| Standard | Diesel engine and electric motor (dual power) |
| Size | 5010*1600*2200(mm) |
| Weight | 7800kg |
| Winch device | |
| Hook speed | 0-12m/min (high speed 12m/min, low speed 6.5m/min) |
| Rope type | 012mm*80m |
| Telescopic device | |
| Boom type | Hexagonal fully automatic 5-section |
| Boom length | 5m-16.8m |
| Time for boom to fully extend | 50 ses |
| Undulating | |
| Boom Angle/Time | 0~78°/60sec |
| Gyratory device | |
| Gyratory angle/time | 0-360°continuous/120sec |
| Walking system | |
| Travelling type | Hydraulic motor drive, two-speed (rubber track) |
| Travelling speed | low speed 0-0.8km/h high speed 0-2km/h |
| Gradeability | 20° |
| Track (L x W) | 2570mm*350mm |
| Motor | |
| Voltage | AC380V/AC220V/AC110V customizable |
| Electric Motor model | YE2-180-6(Three-PhaseAC Asynchronous Motor) |
| Power/Speed | 15Kw/970min-1 |
| Engine | |
| Brand | Yunnei YN27GBZ 58KW/ ChangChai4G33TC /Yanmar 4TNV98C |
| Starting method | Electric |
| Start performance | -5°C~40°℃ |
| Fuel /capacity | Diesel /45L |
| Noise level | Rated speed≤81.5dBA(1m) |
| Operating system | |
| Operating type | Manual operation, manual walking + remote control (optional) |
