HTDLO6 Wheel Loader
Support customized exclusive specifications.
Large selection of attachment tools.
One machine with multi-function.
.jpg)

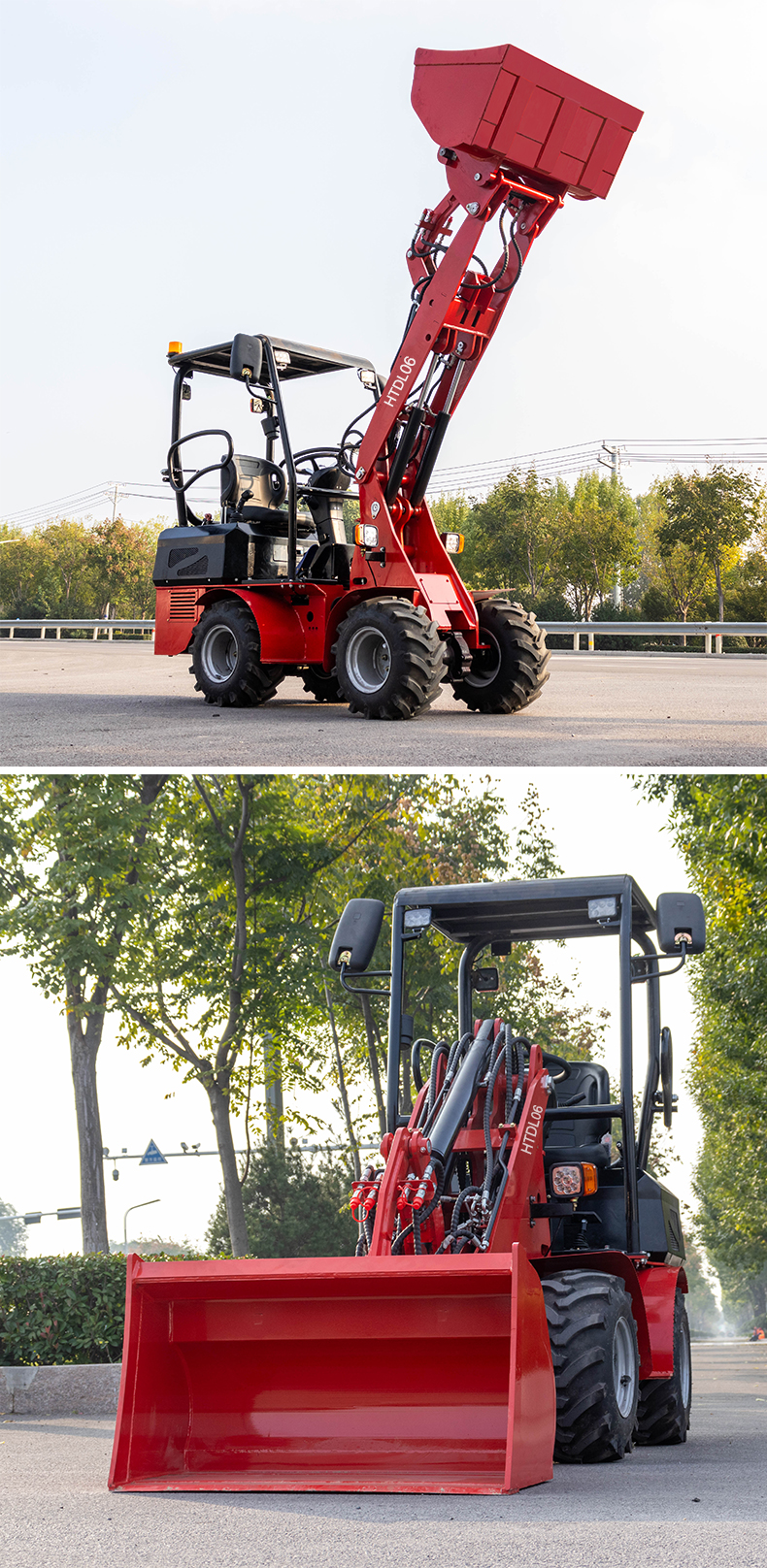

HTDLO6 Wheel Loader
Support customized exclusive specifications
Large selection of attachment tools
One machine with multi-function

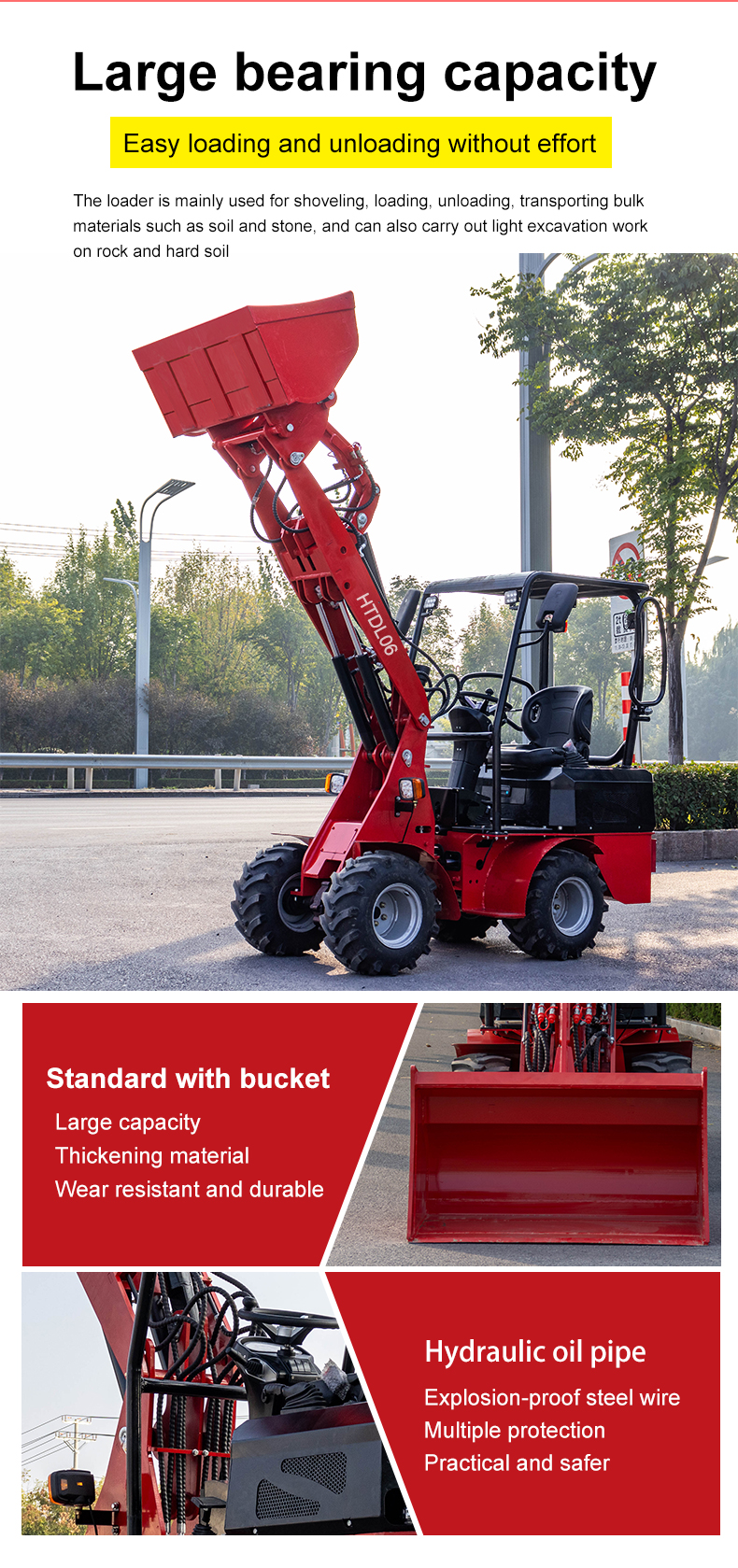

Large bearing capacity
Easy loading and unloading without effort
The loader is mainly used for shoveling, loading, unloading, transporting bulk
materials such as soil and stone, and can also carry out light excavation work
on rock and hard soil.
Standard with bucket
Large capacity
Thickening material
Wear resistant and durable
Hydraulic oil pipe
Explosion-proof steel wire
Multiple protection
Practical and safer

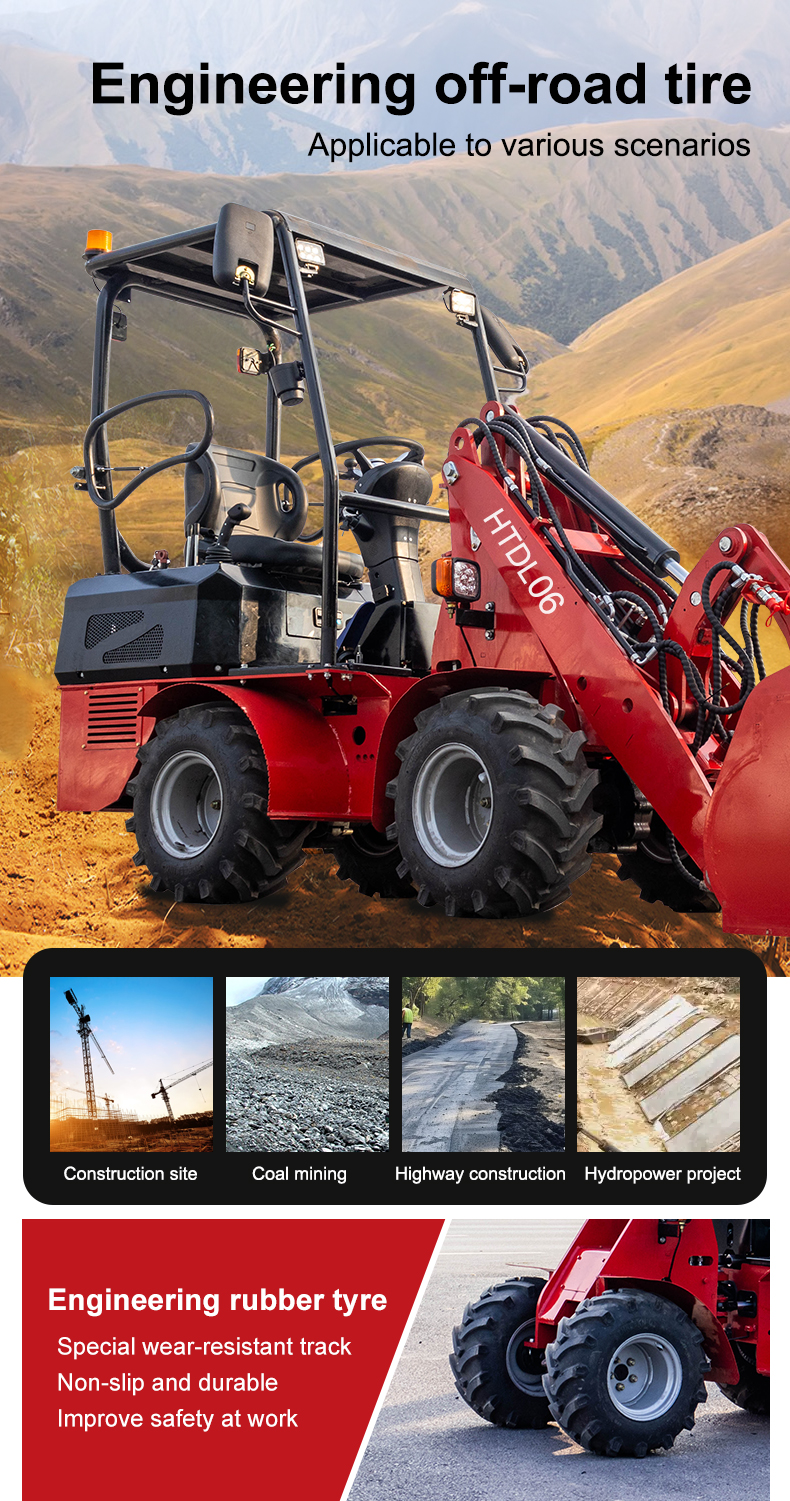

Engineering off-road tire
Applicable to various scenarios
Construction site
Coal mining
Highway construction
Hydropower project
Engineering rubber tyre
Special wear-resistant track
Non-slip and durable
Improve safety at work

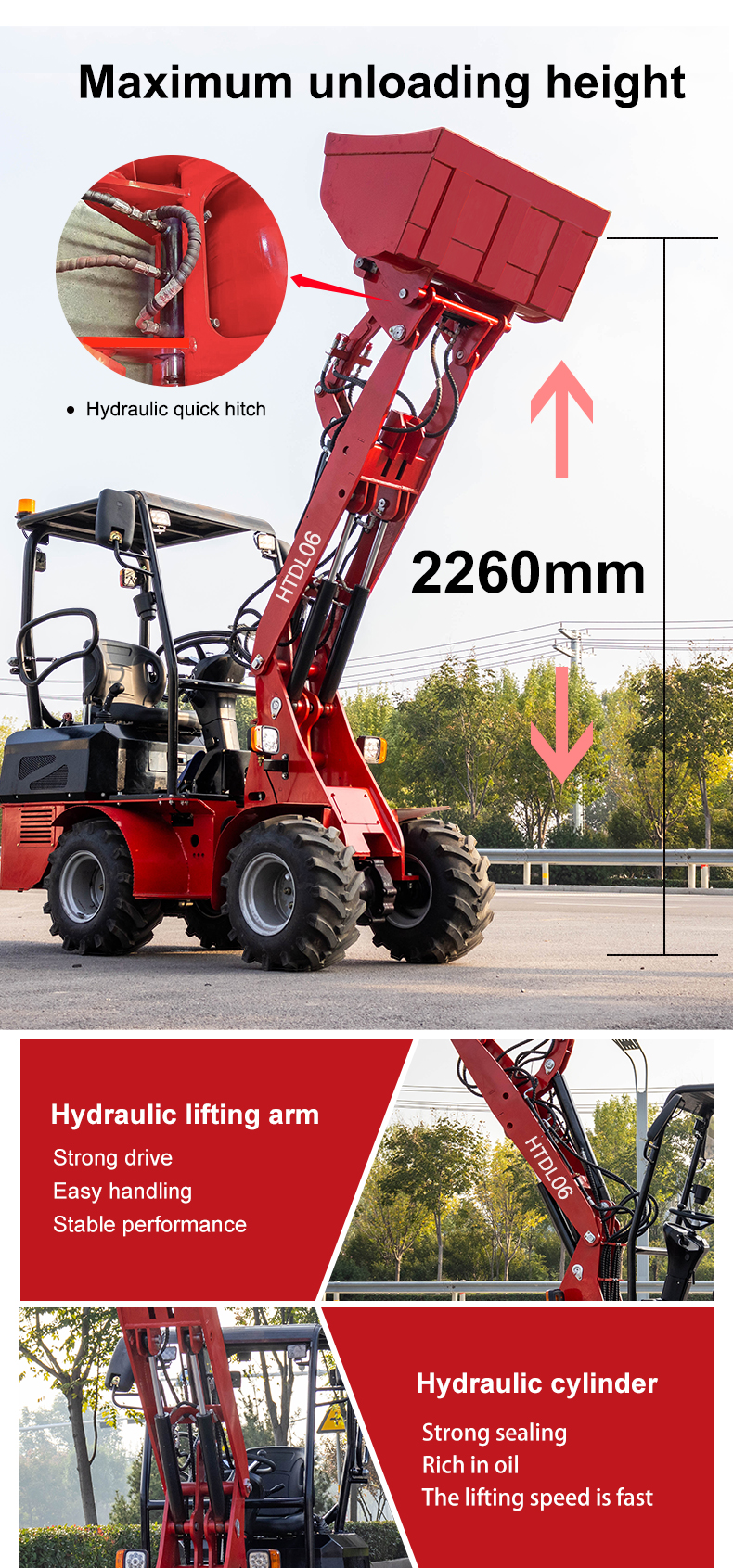

Maximum unloading height
Hydraulic quick hitch
Hydraulic lifting arm
Strong drive
Easy handling
Stable performance
Hydraulic cylinder
Strong sealing
Rich in oil
The lifting speed is fast

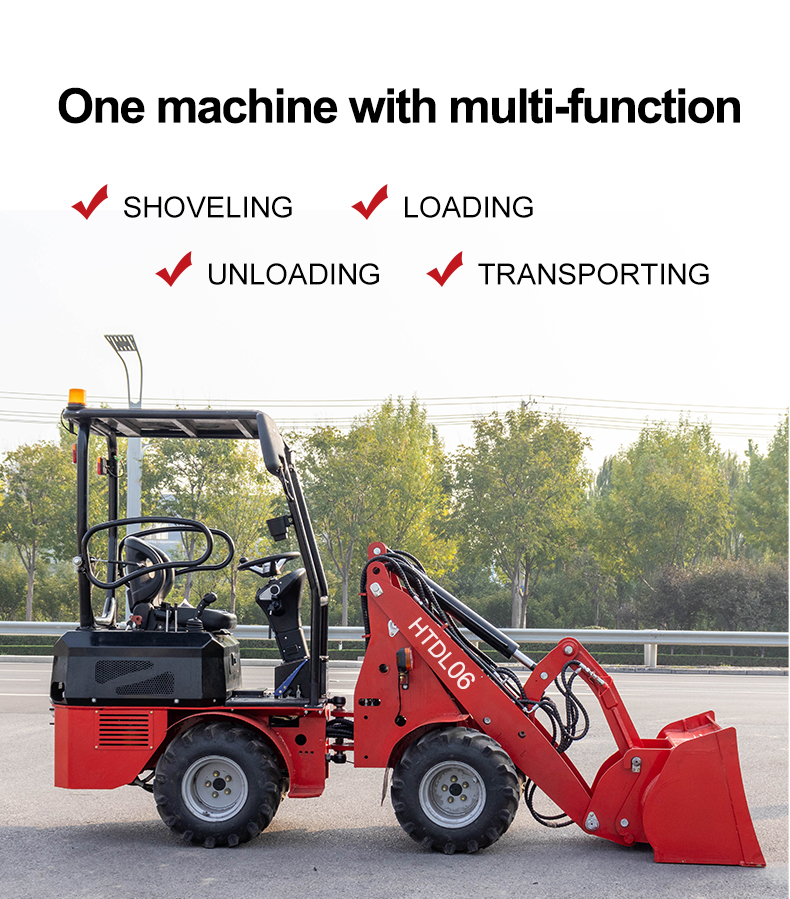

One machine with multi-function
SHOVELING
UNLOADING
LOADING
TRANSPORTING

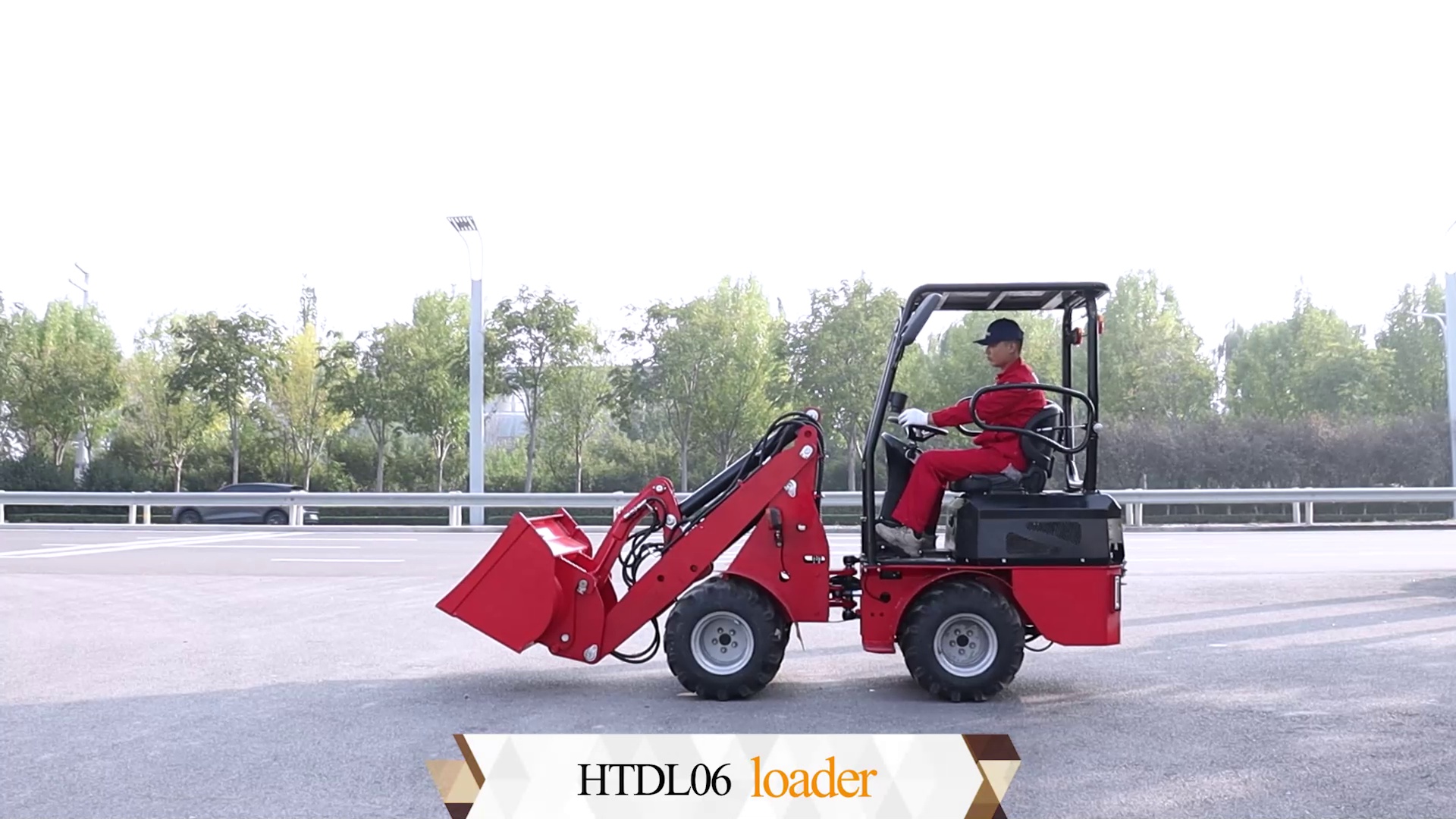

Hightop HTDLO6 Wheel Loader

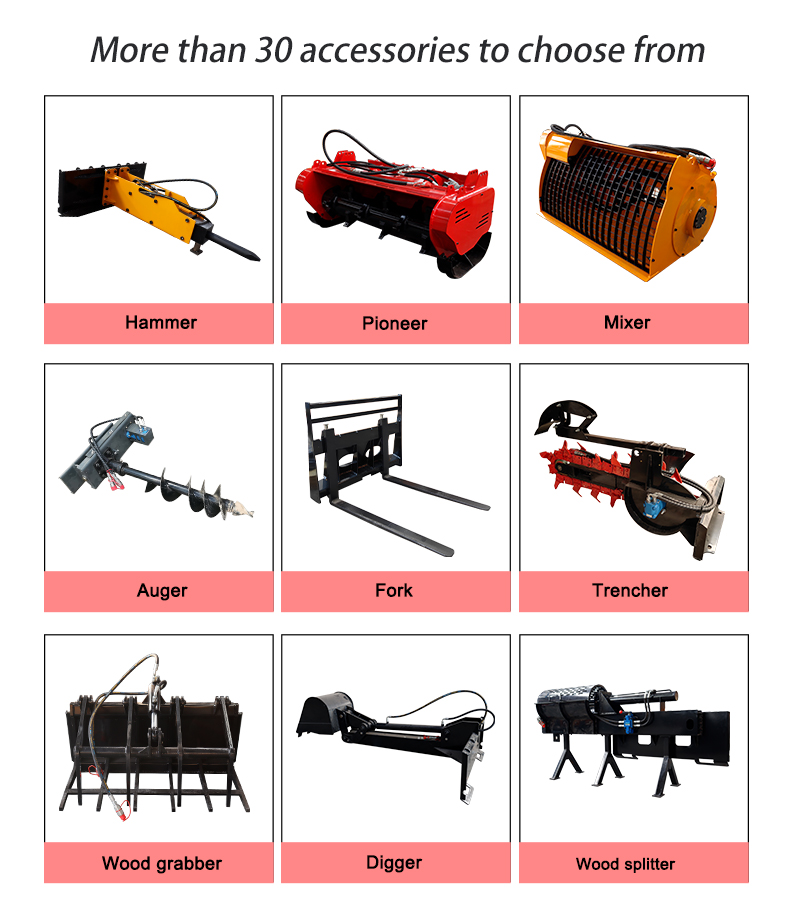

More than 30 accessories to choose from
Hammer,Auger,Wood grabber,Pioneer,Fork,Digger,Mixer,Trencher,Wood splitter,more...

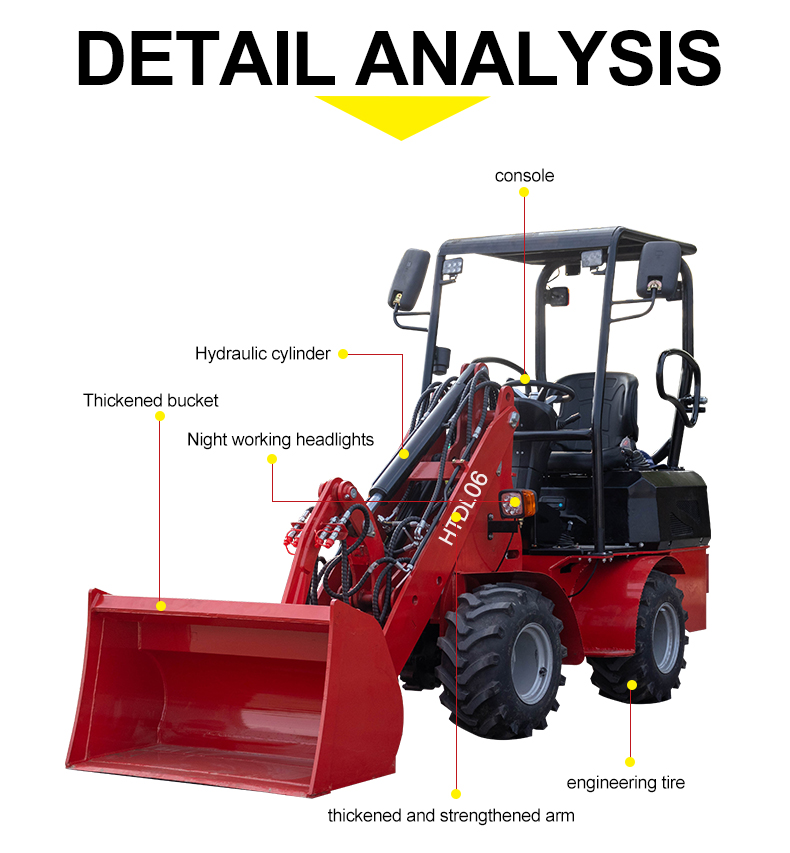

DETAIL ANALYSIS
Console
Hydraulic cylinder
Thickened bucket
Night working headlights
Engineering tire
Thickened and strengthened arm
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
|

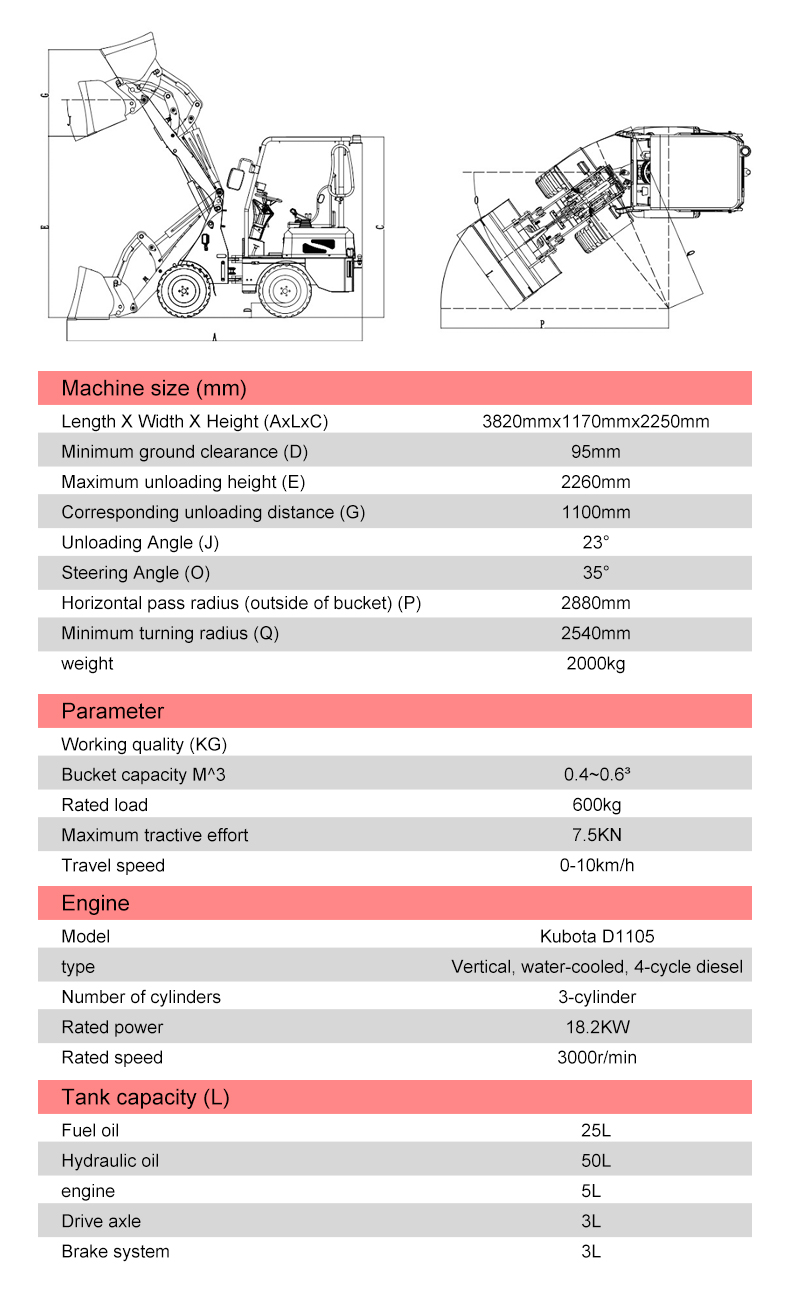

Machine size(mm) |
|
|
Length X Width x Height (AxLxC) |
3820mmx1170mmx2250mm |
|
Minimum ground clearance (D) |
95mm |
|
Maximum unloading height (E) |
2260mm |
|
Corresponding unloading distance(G) |
1100mm |
|
Unloading Angle (J) |
23° |
|
Steering Angle (O) |
35° |
|
Horizontal pass radius (outside of bucket)(P) |
2880mm |
|
Minimum turning radius(Q) |
2540mm |
|
weight |
2000kg |
|
Parameter |
|
|
Working quality(kG) |
|
|
Bucket capacity M^3 |
0.4~0.6³ |
|
Rated load |
600kg |
|
Maximum tractive effort |
7.5KN |
|
Travel speed |
0-10km/h |
|
Engine |
|
|
Model |
Kubota D1105 |
|
type |
Vertical, water-cooled, 4-cycle diesel |
|
Number of cylinders |
3-cylinder |
|
Rated power |
18.2KW |
|
Rated speed |
3000r/min |
|
Tank capacity(L) |
|
|
Fuel oil |
25L |
|
Hydraulic oil |
50L |
|
engine |
5L |
|
Drive axle |
3L |
|
Brake system |
3L |
