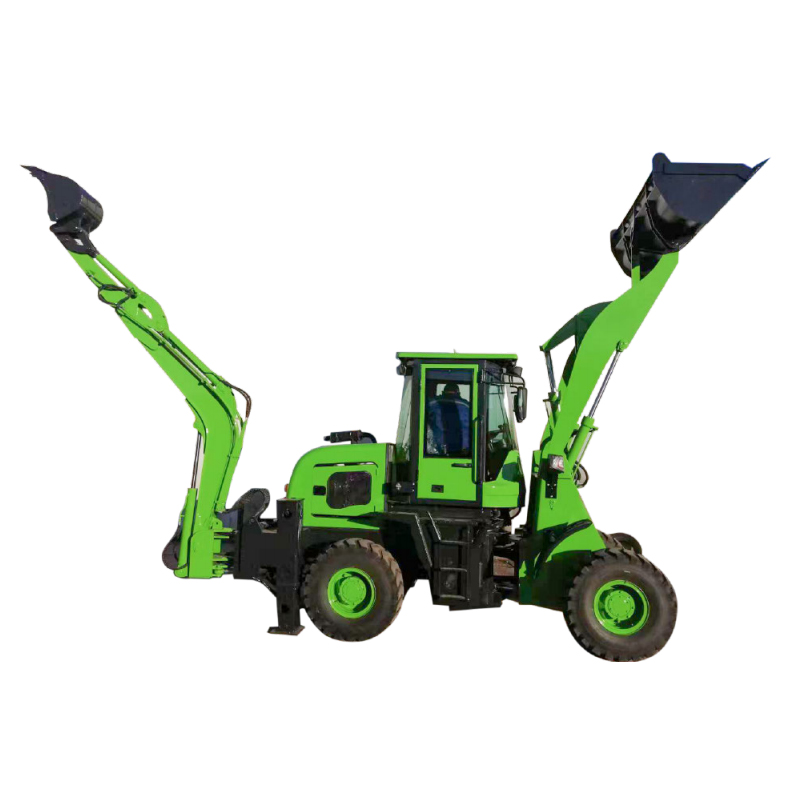

HT10-20 Backhoe Loader

Maximize your farm or yard productivity with the HT10-20 small tractor with backhoe. It features a 4x4 wheel drive system and a 25 km/h top speed for fast relocation. With a 2,000 mm digging depth and a 3,300 kg front lifting capacity, it is a highly versatile machine for trenching and material handling.

description1
HT10-20 Backhoe Loader Parameter

HT10-20 Backhoe Loader: Compact Tractor Backhoe for Versatile Projects

For contractors and farmers who need to switch between digging and loading quickly, the HT10-20 is an efficient solution. This compact backhoe loader combines a rear excavation arm with a front loading bucket, all built on a 4x4 chassis with a maximum speed of 25 km/h.

Why Choose This Compact Backhoe?

  • Efficient Dual Functionality: The rear backhoe reaches a 2,000 mm depth with a 25 kN digging force. The front loader bucket (1,800 mm width) handles up to 3,300 kg.
  • Smooth Operation: Equipped with an articulated full hydraulic steering system (33° steering angle) and hydraulic transmission. The 3,500 mm turning radius makes it highly maneuverable.
  • Built for Tough Terrain: Features a 25° climbing capability, 250 mm ground clearance, and 4x4 traction. The oil-brake drum system and manual parking brake ensure safe operation.

(Contact our sales team for detailed specifications, spare parts, and DDP shipping quotes.)

Specification
HT10-20 Backhoe Loader — Technical Parameters
Dimension & Engine
Overall size (LxWxH) 5500 × 1750 × 2650 mm Engine Model YUNNEI YN25GB
Machine Weight 3400 kg Rated Power 37 kW / 2400 rpm
Wheel base / Tread 2070 mm / 1475 mm Cylinders 3-90 (4-90)
Digging & Loading Parameters
Max. Digging Depth 2000 mm Max. Unloading Height 2800 mm
Max. Digging Radius 2700 mm Max. Unloading Distance 800 mm
Max. Digging Height 2600 mm Max. Loading Lifting Capacity 3300 kg
Backhoe Bucket Capacity 0.1 m³ (400 mm width) Loader Bucket Capacity 0.5 m³ (1800 mm width)
Drivetrain & Performance
Driving Type 4x4 Wheel Drive Gearbox Fixed shaft power shift (Front 2 / Rear 2)
Max. Speed 25 km/h Hydraulic Torque Converter ZL28F
Steering Type Articulated full hydraulic Tires 20.5-16
Min. Turning Radius 3500 mm Climb Capability 25°
Service / Parking Brake Oil brake drum / Manual System Pressure 16 MPa
FAQ

Frequently Asked Questions (FAQ)

What is the actual operating weight of the HT10-20?+
The whole machine weight is exactly 3,400 kg. We provide pre-shipment scale tickets and weighing videos upon request to verify this data.
Can you provide a DDP (Landed Cost) quote?+
Yes. We provide EXW, FOB Qingdao, CIF, and DDP quotes. The DDP quote will cover ocean freight, customs clearance, and inland transport to your exact address.
What engine is used in this backhoe loader?+
It is powered by a Yunnei YN25GB diesel engine (37kW / 2400rpm). This engine is widely recognized for its reliability and readily available spare parts globally.
Is the front loader capable of lifting heavy pallets?+
Yes. The front loader has a maximum lifting capacity of 3,300 kg. However, we recommend checking the load chart for safe operation and ensuring proper counterbalance with the backhoe.
