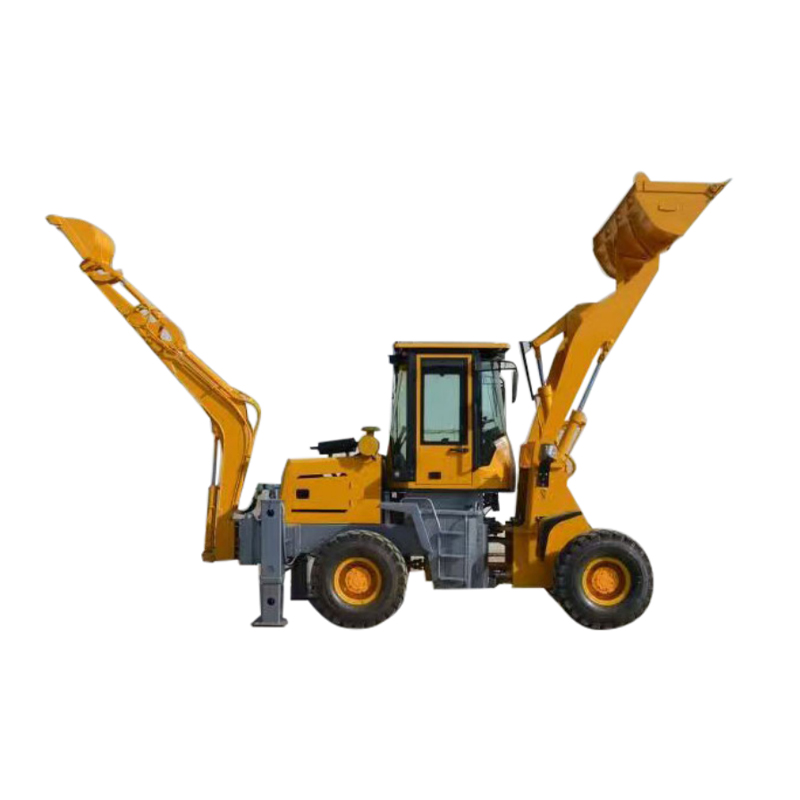

HT15-26 Backhoe Loader
Need a backhoe loader that digs deep and loads fast on the same job site? The HT15-26 delivers 2.7m digging depth and a 0.7m³ loader bucket – all with 4x4 traction and a tight 4m turning radius for confined sites. Get your factory-direct quote today.
|
Model:HT15-26 |
|||
|
DIMENSION |
ENGINE |
||
|
Overall size(mm) |
5800*1850*2750 |
Engine Model |
YUNNEI YN27GBZ |
|
Wheel base(mm) |
2315 |
Type |
Four-Stroke |
|
Wheel tread(mm) |
1500 |
Rated Power(KW) |
58 |
|
Min. Ground Clearance(mm) |
220 |
Rated Rotary speed(r/min) |
2400 |
|
PERFORMANCE PARAMETER |
Cylinders - inner diameter |
3-90(4-90) |
|
|
Pressure of the system(MPa) |
16 |
DRIVE SYSTEM |
|
|
Machine weight(Kg) |
4800 |
Gearbox |
Fixed shaft power shift |
|
Max. speed(Km/h) |
26 |
Optional Gears |
Front 2 rear2 |
|
Max Climb Capability(°) |
25 |
Hydraulic torque converter |
ZL29A |
|
Min. turning radius(mm) |
4000 |
EPS |
|
|
DIGGING PARAMETER |
type |
Articulated full hydraulic steering |
|
|
Max. Digging depth(mm) |
2700 |
Steering angle(°) |
33 |
|
Dumping Height(mm) |
2200 |
BRIDGE |
|
|
Max. Digging Radius(mm) |
4600 |
TYPE |
130 |
|
Budcket width(mm) |
600 |
TYRE |
|
|
Bucket capacity(m3 ) |
0.2 |
size |
23.5-16 |
|
Max. Digging height(mm) |
4200 |
Front wheel pressure(KPa) |
250 |
|
Max. force(KN) |
28 |
Back wheel pressure(KPa) |
250 |
|
DiggingRotary angle (°) |
180 |
service brake |
Oil brake drum brake |
|
LOADER PARAMETER |
Parking brake |
manual |
|
|
Max.unloading height(mm) |
2800 |
FUEL |
|
|
Max. Unloading distance(mm) |
800 |
Fuel tank(L) |
40 |
|
Loading bucket width(mm) |
1800 |
Hydraulic oil tank(L) |
40 |
|
Loading bucket width(m3 ) |
0.7 |
OTHERS |
|
|
Max.Loading Lifting Capacity(mm) |
4200 |
Driving type |
4*4 wheel |
|
Maximum rising power(KN) |
36 |
Variable speed type |
hydraulic transmission |
|
Loading bucket working time(s) |
12 |
Brake distance(mm) |
450 |
HT15-26 Backhoe Loader – 4x4, 58KW, 2.7m Dig Depth for Construction
The HT15-26 is a 4x4 backhoe loader built for construction sites, roadworks, and excavation projects. With a 58KW YUNNEI engine, 2.7m digging depth, and 0.7m³ loader bucket, it handles digging, loading, and backfilling in one machine – reducing the need for multiple pieces of equipment on site.
What Makes the HT15-26 a Practical Choice?
Backhoe loaders are the workhorses of construction sites. The HT15-26 combines digging and loading capabilities in a single 4x4 chassis, so you can switch between tasks without moving multiple machines around.
- 4x4 drive – Handles rough terrain, mud, and slopes with a 25° climbing capability. You're not stuck when the ground gets soft.
- 58KW YUNNEI engine – Four-stroke diesel with enough torque for continuous digging and loading cycles. Reliable, fuel-efficient, and easy to service.
- 2.7m digging depth – Deep enough for utility trenches, foundation footings, and drainage work. The 4.6m digging radius gives you reach without constantly repositioning.
- 0.7m³ loader bucket – Moves dirt, gravel, and debris efficiently. 2.8m unloading height clears standard dump truck sides.
- Articulated hydraulic steering – Tight 4m turning radius makes maneuvering in confined sites manageable.
Where Can You Use the HT15-26?
- Construction sites – Digging foundations, backfilling trenches, moving materials
- Roadworks – Excavating for drainage, loading debris, grading surfaces
- Agricultural projects – Digging irrigation ditches, clearing land, loading feed or manure
- Utility installation – Trenching for water pipes, gas lines, and electrical conduits
- Demolition & site clearance – Breaking and loading rubble, clearing debris
Why Choose the HT15-26?
- One machine, two functions – Backhoe on the rear, loader on the front. No need to buy separate machines for digging and loading.
- Hydraulic transmission – Smooth power delivery and easy operation, even for less experienced operators.
- Articulated steering – 33° steering angle and 4m turning radius for tight job sites.
- Durable construction – Built with a fixed shaft power shift gearbox and heavy-duty axle for long-term reliability.
- Easy maintenance – Simple layout with accessible service points for routine checks and repairs.
Frequently Asked Questions
What's the difference between a backhoe loader and an excavator?
A backhoe loader combines a digging arm on the rear and a loading bucket on the front in one machine. An excavator is purely for digging. The backhoe loader is more versatile for job sites that need both digging and material moving.
What is the digging depth of the HT15-26?
The HT15-26 has a maximum digging depth of 2,700mm (2.7 meters) – deep enough for most utility trenches, foundation footings, and drainage work.
What engine does the HT15-26 use?
It's powered by a YUNNEI YN27GBZ four-stroke diesel engine, producing 58KW at 2400rpm. It's a proven, reliable engine widely used in construction equipment.
Is the HT15-26 suitable for rough terrain?
Yes. With 4x4 drive, a 25° climbing capability, and 4800kg operating weight, it handles muddy, uneven, and sloping ground without losing traction.
What attachments are available?
The HT15-26 comes with a standard backhoe bucket (0.2m³) and loader bucket (0.7m³). Optional attachments include different bucket sizes, hydraulic breakers, and augers – contact us for availability.
Need a Backhoe Loader for Your Next Project?
If you're looking for a versatile backhoe loader that handles digging and loading in one machine, we can help. Browse our farm tractor lineup or contact us with your specific requirements.
📧 Email: operators@sdchinamachine.com
📞 WhatsApp: +86 181 6205 2962
