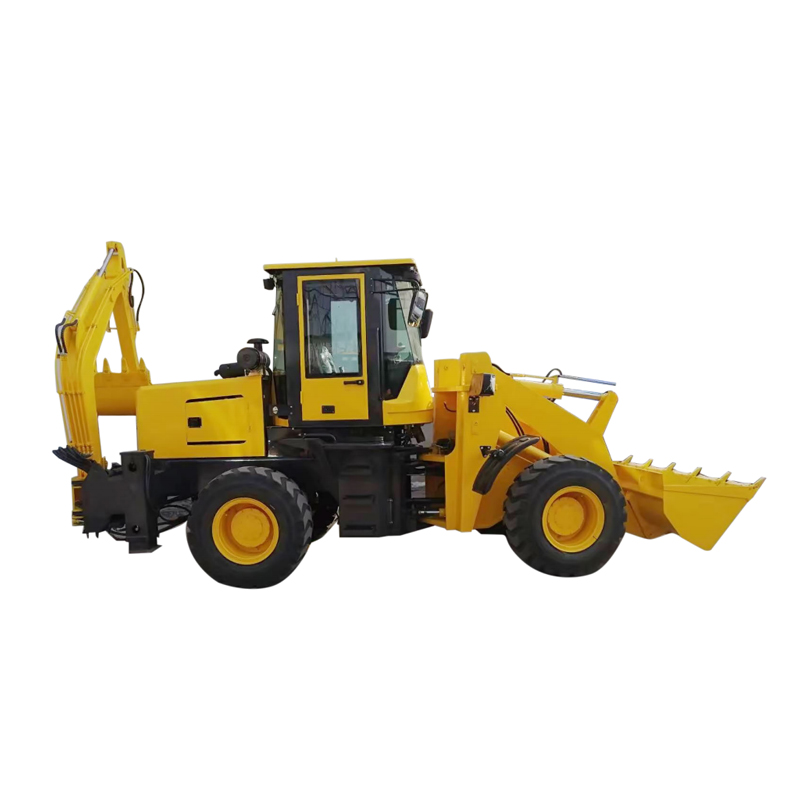

HT25-30 Backhoe Loader

Maximize your site efficiency with the HT25-30 small tractor with backhoe. This 6-ton loader backhoe for sale combines a 1.2m³ front bucket with a 92kW turbo engine and a 35 km/h top speed. It delivers a 2,600 mm digging depth and supports an optional Cummins engine for strict emission markets.

description1
Description

HT25-30 Loader Backhoe: High-Capacity Digging and Fast Travel

For contractors who need to switch between moving materials and digging trenches without hauling multiple machines, the HT25-30 is a highly practical solution. This compact tractor with backhoe weighs 6,000 kg, combining a 1.2m³ front bucket with a 0.3m³ rear backhoe bucket.

Key Features for Multi-Purpose Operations:

  • Massive Front Bucket: The 1.2m³ loader bucket (2,200 mm width) handles a maximum lifting capacity of 4,300 kg, making it ideal for moving bulk soil and gravel.
  • Deep Digging & Reach: The rear backhoe achieves a 2,600 mm maximum digging depth, a 4,300 mm digging height, and a 180° swing angle.
  • Fast & Flexible: Features a 35 km/h top speed with a 4-speed transmission, allowing rapid site-to-site travel. An optional Cummins engine (Euro V) is available for European markets.
Specification
HT25-30 Backhoe Loader — Technical Parameters
Dimension & Engine
Overall size (LxWxH) 6500 × 2040 × 2800 mm Engine Model YUNNEI YN48GBZ
Machine Weight 6000 kg Rated Power 92 kW / 2400 rpm
Wheel base / Tread 2675 mm / 1630 mm Optional Engine Cummins (Euro V standard)
Digging & Loading Parameters
Max. Digging Depth 2600 mm Max. Unloading Height 3500 mm
Max. Digging Radius 4600 mm Max. Loading Lifting Capacity 4300 kg
Max. Digging Height 4300 mm Max. Pulling Force 39 kN
Backhoe Bucket Capacity 0.3 m³ (620 mm width) Loader Bucket Capacity 1.2 m³ (2200 mm width)
Drivetrain & Performance
Driving Type 4x4 Wheel Drive Gearbox Power transmission (4 Fwd / 4 Rev)
Max. Speed 35 km/h Torque Converter YJ280
Steering Type Articulated full hydraulic (±36°) Service Brake Air Over Oil Caliper Brake
FAQ

Frequently Asked Questions (FAQ)

Why choose a loader backhoe loader over a standard excavator?+
A loader backhoe loader combines the digging capability of an excavator with the material handling of a front-end loader. The HT25-30 features a massive 1.2m³ front bucket, allowing you to dig a trench and backfill it without switching machines.
Is the Cummins engine available for European markets?+
Yes. While the standard engine is a 92kW Yunnei, we offer an optional Cummins engine configuration that meets Euro V emission standards. Please specify your destination market when requesting a quote.
Where can I find a reliable compact tractor with backhoe for sale?+
HIGHTOP provides factory-direct pricing on the HT25-30 and other backhoe loaders. Contact our sales team for EXW, FOB, or DDP quotes. We also provide weighing videos for verification.
How does the 1.2m³ front bucket improve efficiency?+
The 1.2m³ front bucket has a lifting capacity of 4,300 kg, functioning almost like a dedicated wheel loader. Combined with a 35 km/h top speed, it moves material faster and relocates between sites quicker than smaller tractors.
