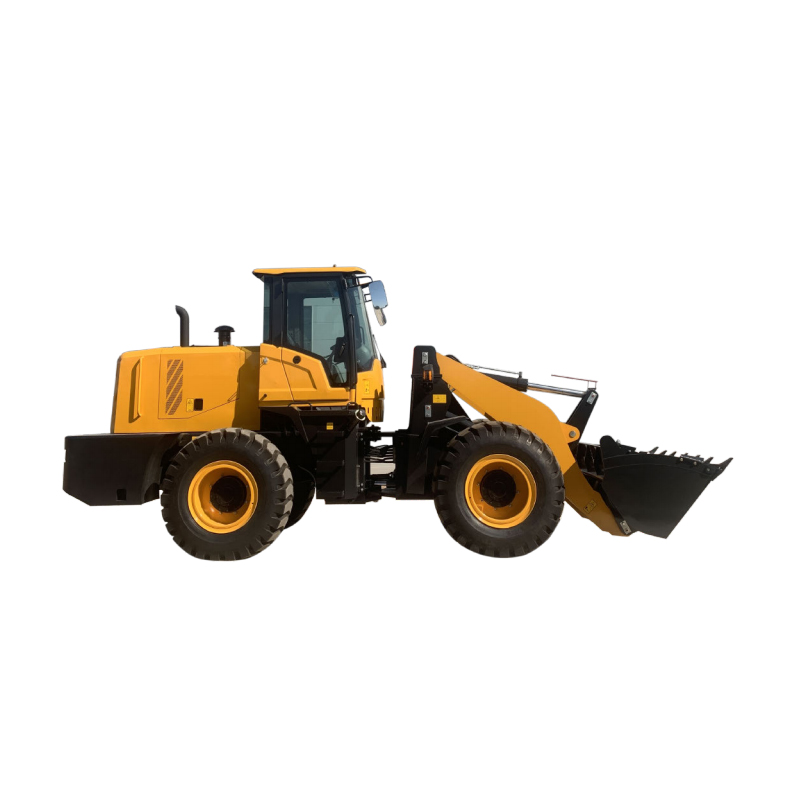

HT930A Wheel Loader – 3.7m Dump Height, 92KW, 2.5T Capacity
Ever spent half a morning repositioning a loader just to clear the side of a truck? The HT930A's 3.7m dump height ends that. Load high-sided grain trailers and gravel trucks without building ramps or moving twice.
HT930A Wheel Loader – Key Specifications
| Parameter | Specification |
|---|---|
| Model | HT930A |
| Rated Load | 2,500 kg |
| Total Weight | 7,500 kg |
| Bucket Capacity | 1.7 m³ |
| Bucket Width | 2,300 mm |
| Engine | Weichai WP6G125E22 (92kW @ 2200rpm) |
| Emission Standard | Europe II |
| Max Unloading Height | 3,700 mm |
| Min Turning Radius | 5,850 mm |
| Min Ground Clearance | 420 mm |
| Boom Lift Time | 6 s |
| Boom Lower Time | 5 s |
| Overall Dimension (L×W×H) | 7,100 × 2,250 × 3,100 mm |
| Wheelbase | 1,400 mm |
| Axle Spacing | 2,740 mm |
| Driving Speed (LowⅠ F/R) | 8 / 10 km/h |
| Driving Speed (LowⅡ F/R) | 13 / 30 km/h |
| Driving Speed (HighⅠ F/R) | 24 / 24 km/h |
| Driving Speed (HighⅡ F/R) | 40 / 40 km/h |
Built to Clear High-Sided Trucks and Move Material Fast
If you've ever spent time positioning a loader just to clear the side of a grain trailer or dump truck, you know how much time that wastes. The HT930A gives you a 3.7-meter unloading height – enough to clear most high-sided trucks without building ramps or repositioning multiple times.
Under the hood is a Weichai WP6G125E22 diesel engine, putting out 92kW at 2200rpm. Weichai is one of China's most established diesel engine manufacturers – reliable, fuel-efficient, and widely serviced. Parts are available through multiple channels, so you're not stuck waiting for specialized components.
The 1.7m³ bucket moves a lot of material per pass – sand, gravel, grain, or demolition debris. Bucket width is 2300mm, which matches well with standard truck beds. The machine weighs in at 7500kg total, with a rated load of 2500kg. That's enough weight to stay stable when you're lifting heavy loads to full height.
The transmission is straightforward – no complicated electronics to fail. Speeds range from 8km/h in low range up to 40km/h in high range, so you can move around the yard quickly between loads. The turning radius is 5850mm – not the tightest in its class, but reasonable for a machine this size, especially in open yards and quarries.
Ground clearance is 420mm, which means you're not dragging the belly through mud or uneven ground. The boom lifts in 6 seconds and drops in 5 – fast enough to keep cycles moving without feeling rushed.
This is a no-nonsense loader for operators who need to move material all day without babysitting a machine. Simple controls, reliable power, and enough reach to keep trucks moving.
Frequently Asked Questions
What's the unloading height of the HT930A?
3,700mm (3.7 meters). That's high enough to clear the sides of most grain trailers, gravel trucks, and standard dump trucks – so you don't need to build ramps or reposition constantly.
What engine does the HT930A use?
It's powered by a Weichai WP6G125E22 diesel engine, producing 92kW at 2200rpm. Weichai is one of China's most established diesel engine manufacturers – reliable, fuel-efficient, and widely serviced across multiple markets.
How much can the HT930A lift?
The rated load is 2,500kg (2.5 tons). The machine's total operating weight is 7,500kg, which provides stability when lifting heavy loads to full height.
What's the bucket capacity?
The standard bucket is 1.7m³ with a 2,300mm width. It's sized for efficient loading of sand, gravel, grain, and demolition debris.
Is the HT930A suitable for farm use?
Yes. The 3.7m dump height is ideal for loading grain trailers and feed trucks. It's also useful for moving silage, manure, and other bulk materials around a farm yard.
What about emissions compliance?
The HT930A meets Europe II emission standards. For markets with stricter requirements, contact us about engine configuration options.
How fast can the HT930A travel?
Top speed is 40km/h in high range – fast enough to move between job sites or across large yards. Low range speeds are 8-13km/h for precise loading work.
