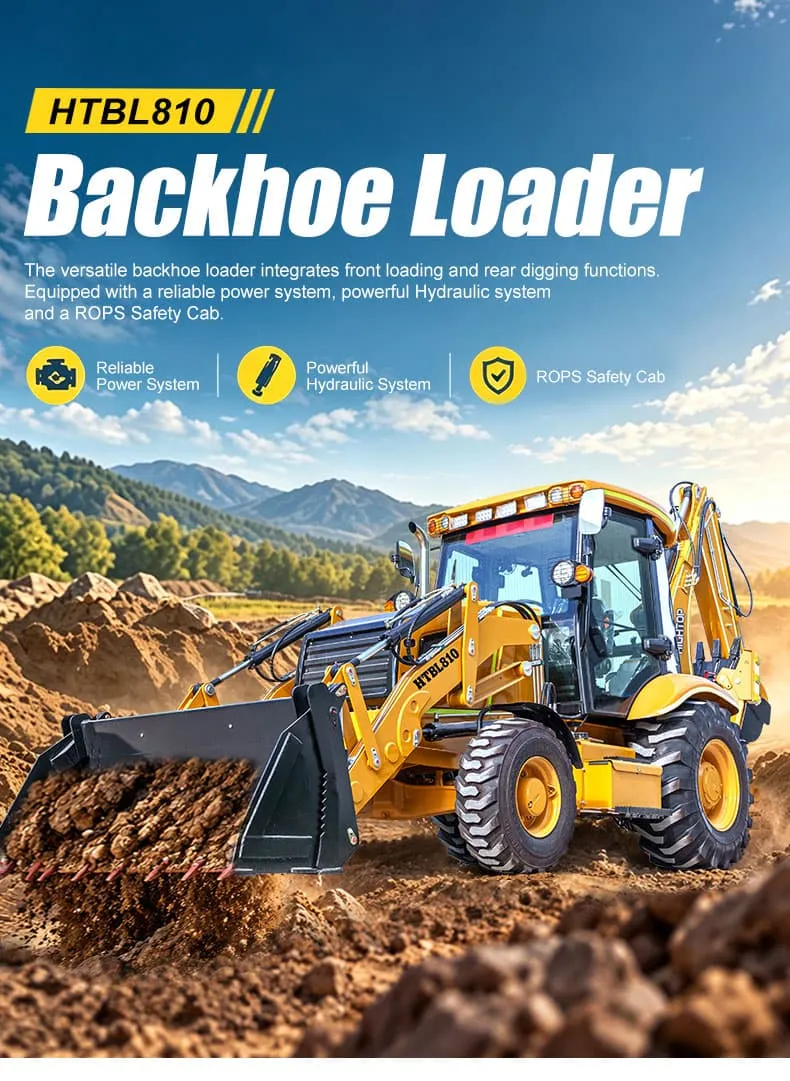

HTBL810 Backhoe Loader: Built in a 110,000m² Facility with ISO/CE/SGS/TUV/BV Certification
The HTBL810 backhoe loader has a 1.0m³ loader bucket and 0.3m³ backhoe bucket, produced by a group with ISO 9001, CE, SGS, TUV, and BV certifications and exports to over 100 countries.
Manufacturing and Quality Control Behind the HTBL810 Backhoe Loader
For distributors and fleet buyers, the manufacturer behind a machine matters as much as the specification sheet. This page covers the production facility, certification system, and quality control process behind the HTBL810 backhoe loader.
Production Facility and Scale
The HTBL810 is manufactured by Shandong Hightop Group, a large-scale engineering construction equipment manufacturing group based in Jining City, Shandong Province, China. The group covers approximately 110,000 square meters and employs more than 1,000 people. The manufacturing base operates dedicated production lines for excavators, skid steer loaders, wheel loaders, and backhoe loaders.
Certification System
Hightop Group has obtained ISO 9001, CE, SGS, TUV, and BV certifications to meet the requirements of different international markets. The group has also obtained more than 40 national patents, 21 trademarks, and 3 copyrights. These certifications support the company's export operations to regulated markets.
Quality Control Process
The HTBL810 production process includes innovative design, mechanical processing, automated welding, surface rust removal, environmental protection spraying, lean assembly, full-process quality inspection, and a complete-machine test-run before shipment. Each machine undergoes the complete test-run before shipping.
Export Record and Overseas Warehousing
Hightop Group products are exported to more than 100 countries and regions, with major overseas markets in Europe, North America, South America, and Southeast Asia. The group has established overseas warehousing and distribution bases in multiple countries, including 2 in the United States, 1 in Germany, 1 in the United Kingdom, 2 in Spain, 2 in Poland, and 1 in Saudi Arabia.
Why This Matters for Distributors and Fleet Buyers
When evaluating a supplier for long-term cooperation, factory scale, certification coverage, and quality control process are relevant factors. A manufacturer with ISO 9001, CE, SGS, TUV, and BV certifications and a documented export record to over 100 countries can support buyers who need consistent product quality, spare parts availability, and after-sales documentation.
To request factory audit materials or certification documents for the HTBL810, send an inquiry with your company details and market requirements.

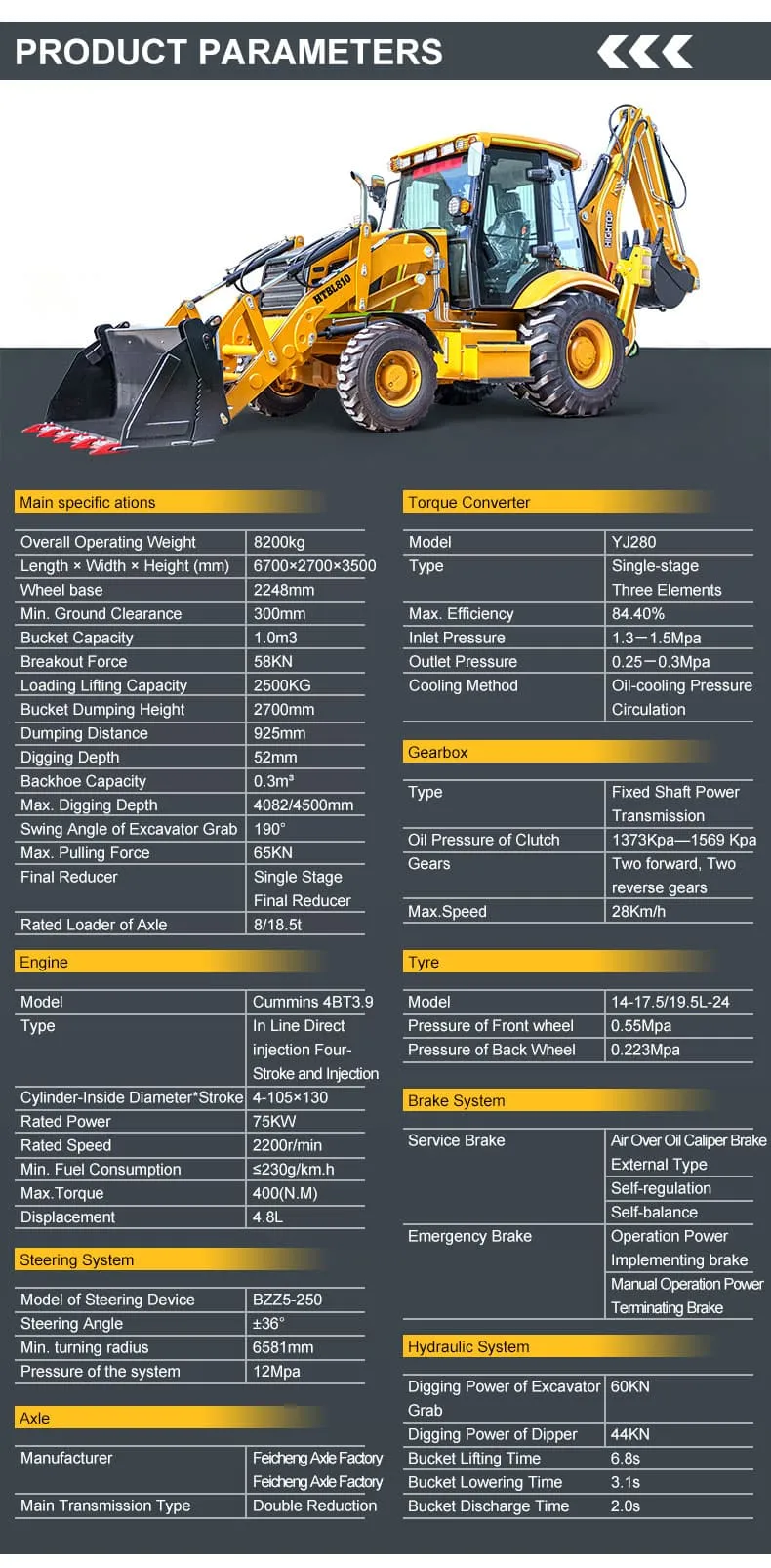

| Main Specifications | |
|---|---|
| Model | HTBL810 |
| Overall Operating Weight | 8200kg |
| Length × Width × Height | 6700×2700×3500 mm |
| Wheel Base | 2248mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m³ |
| Breakout Force | 58KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2700mm |
| Dumping Distance | 925mm |
| Backhoe Capacity | 0.3m³ |

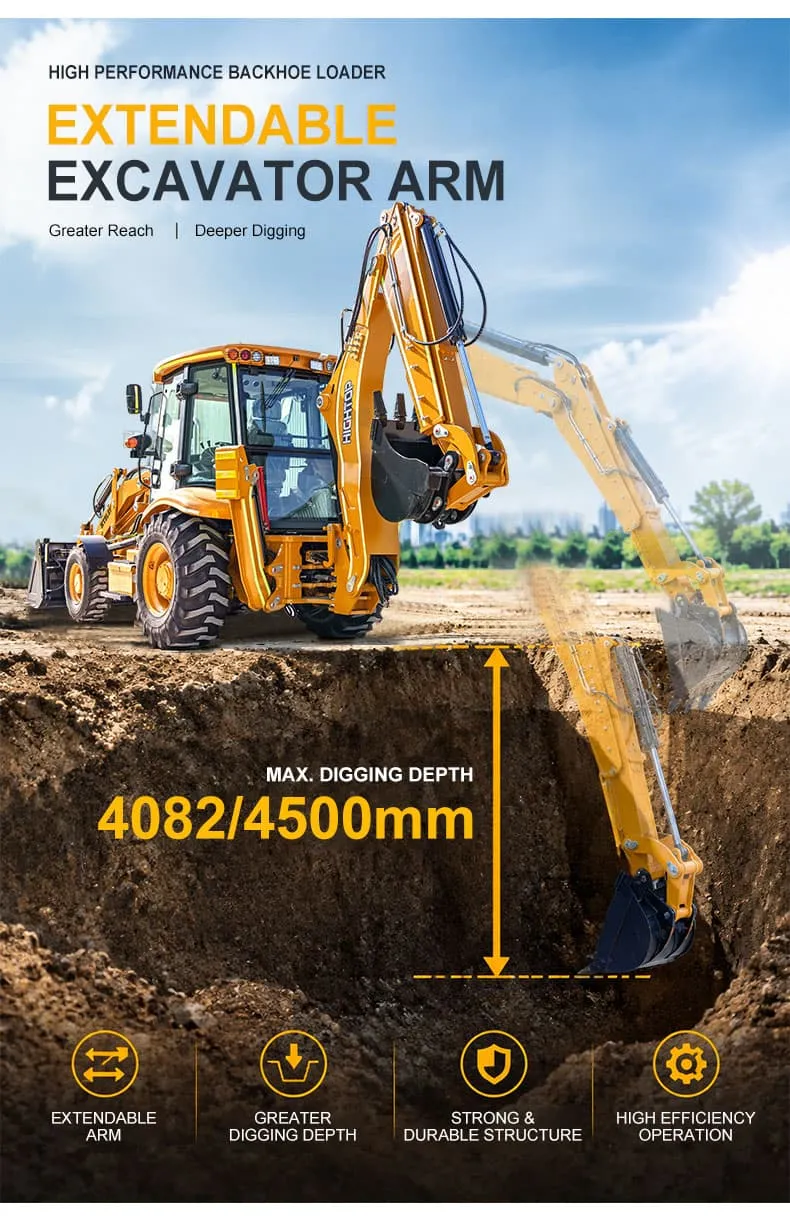

| Max. Digging Depth | 4082/4500mm |
| Swing Angle of Excavator Grab | 190° |
| Max. Pulling Force | 65KN |
| Rated Loader of Axle | 8/18.5t |
| Engine | |

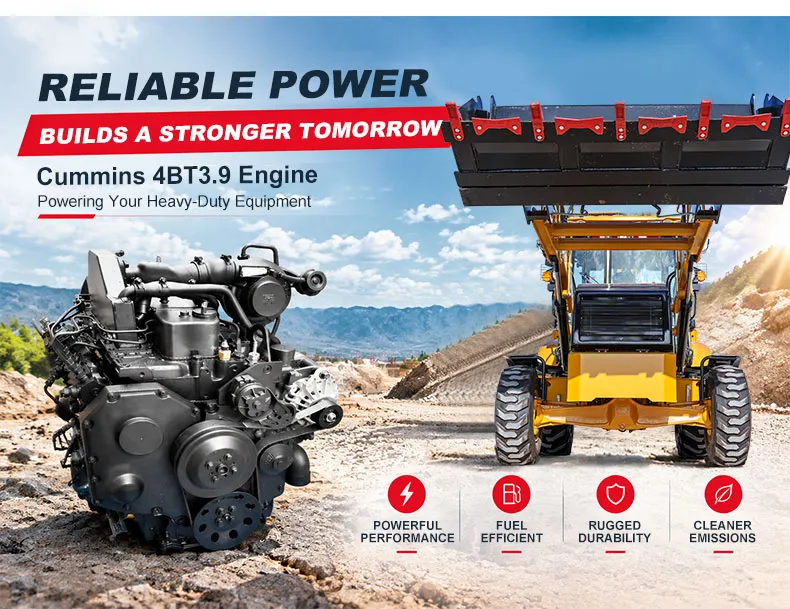

| Model | Cummins 4BT3.9 |
| Type | In Line Direct Injection Four-Stroke |
| Cylinder-Inside Diameter*Stroke | 4-105×130 |
| Rated Power | 75KW |
| Rated Speed | 2200r/min |
| Max. Torque | 400(N.M) |
| Displacement | 4.8L |
| Certifications | |
| Quality Management | ISO 9001 |
| Product Certification | CE, SGS, TUV, BV |
| Intellectual Property | 40+ national patents, 21 trademarks, 3 copyrights |
What certifications does the HTBL810 backhoe loader have?
Hightop Group has obtained ISO 9001, CE, SGS, TUV, and BV certifications. The group has also obtained more than 40 national patents, 21 trademarks, and 3 copyrights. Buyers should confirm which specific certifications apply to the HTBL810 configuration ordered for their market.
Can I visit the factory or request a factory audit before ordering?
Factory visits and audit requests can be discussed with the Hightop sales team. The manufacturing base is located in Jining City, Shandong Province, China, covering approximately 110,000 square meters. Buyers should contact Hightop directly to arrange a visit or request audit documentation.
What quality control process does the HTBL810 go through before shipping?
The HTBL810 production process includes innovative design, mechanical processing, automated welding, surface rust removal, environmental protection spraying, lean assembly, full-process quality inspection, and complete-machine test-run. Each machine undergoes a complete test-run before shipment.
How many countries does Hightop export to?
Hightop Group products are exported to more than 100 countries and regions. The group has established overseas warehousing and distribution bases in multiple countries, including 2 in the United States, 1 in Germany, 1 in the United Kingdom, 2 in Spain, 2 in Poland, and 1 in Saudi Arabia.
Can I request certification documents for the HTBL810 before ordering?
Yes. Certification documents can be requested from the Hightop sales team. Buyers should specify which certifications are required for their market (for example, CE for Europe or other certifications for specific regions) so the relevant documentation can be provided.
What is the production capacity of the Hightop factory for backhoe loaders?
The Hightop Group facility covers approximately 110,000 square meters and employs more than 1,000 people. Specific production capacity figures for the HTBL810 should be confirmed with the sales team based on your order quantity and delivery schedule.
