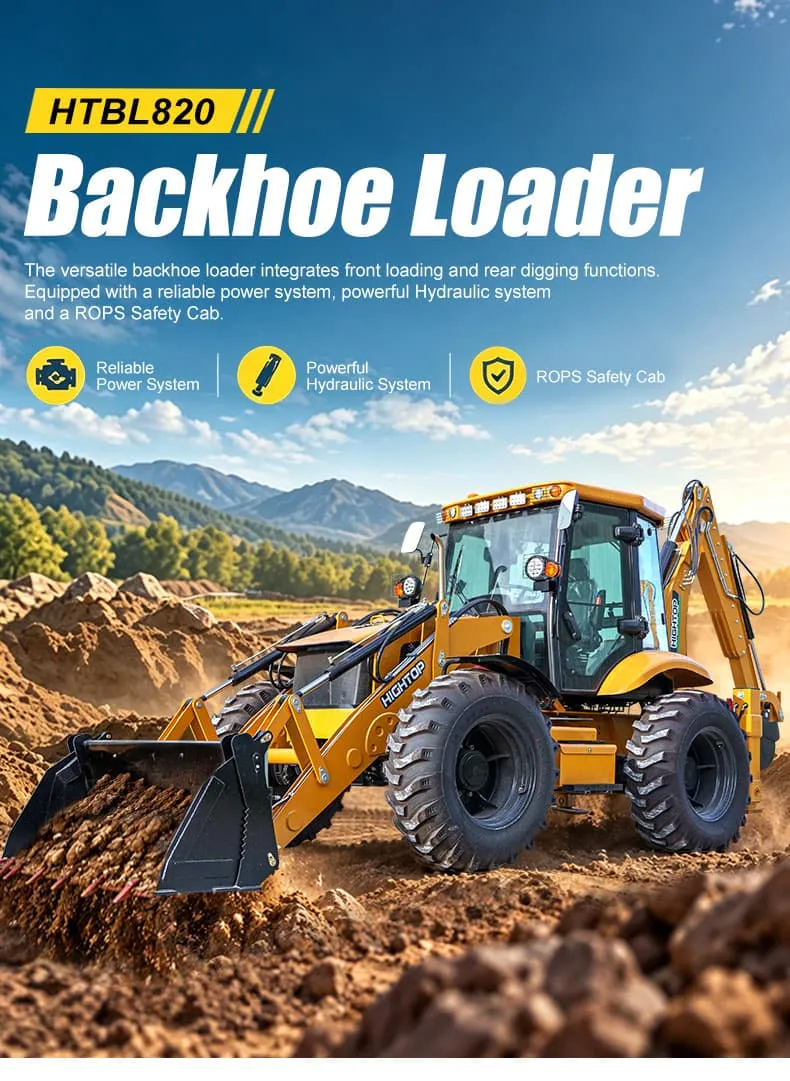

HTBL820 Backhoe Loader for Construction, Agriculture and Export
HTBL820 is a 10,050kg backhoe loader with 93kW Cummins power, 2500kg rated load, 1.2m³ loader bucket, 0.3m³ digging bucket and four-wheel steering.

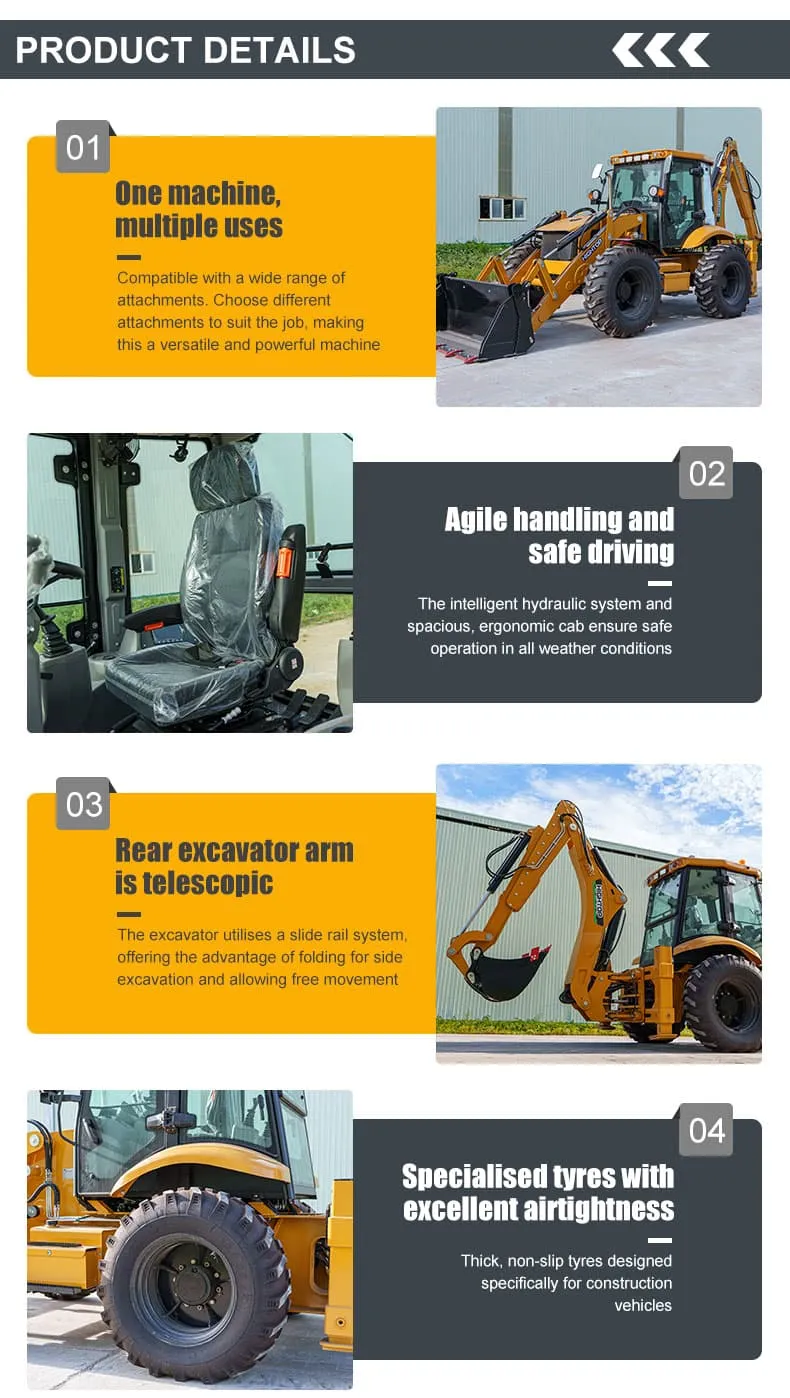

For equipment buyers sourcing a machine that can cover both loading and excavation, the HTBL820 offers a two-function backhoe loader configuration. The machine combines a 1.2m³ front bucket with a 0.3m³ rear digging bucket, allowing one unit to handle material loading, trenching, site preparation and general earthmoving work.

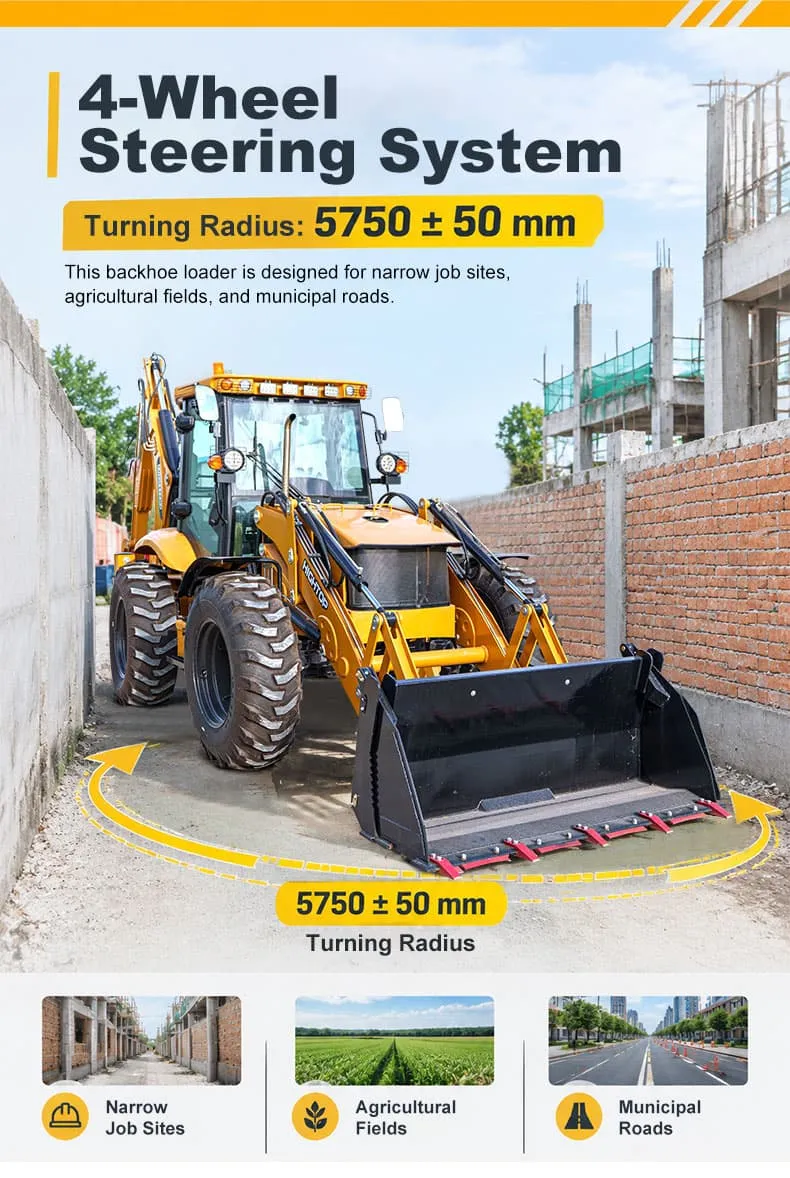

The HTBL820 has an operating weight of 10,050kg and a rated load of 2,500kg. The front loader provides a maximum dumping height of 3050±50mm and a dumping distance of 870±20mm. Four-wheel steering is used for maneuverability, with a turning radius of 5750±50mm measured outside the tires.

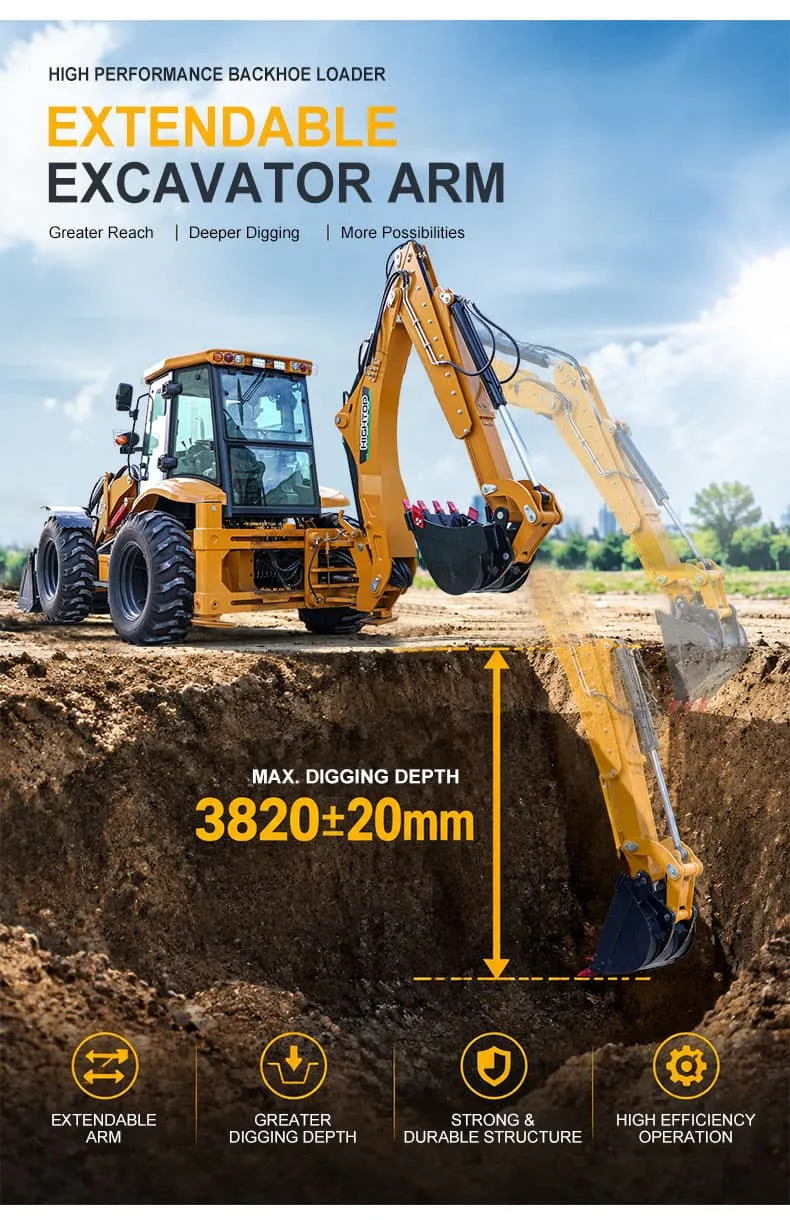

For excavation, the rear system reaches a maximum digging depth of 3820±20mm and a maximum digging radius of 5345±20mm. Maximum digging height is 5470±20mm, while maximum digging force is specified at 5100kgf. The machine can therefore be considered for construction sites, agricultural projects, municipal maintenance and road work where both functions are required.
The power system uses a Dongfeng Cummins water-cooled engine rated at 93kW. The 4.8L engine operates at 2200 r/min, while the transmission provides four forward and four reverse gears and a maximum speed of 32km/h.
For backhoe loader export orders, buyers should confirm the destination market, required attachments, tire configuration, quantity and transport requirements before quotation. The HTBL820 supports attachment options including hydraulic breaker, auger, forks, grapple bucket and 4-in-1 bucket configurations. Spare parts and export arrangements can also be discussed when requesting a supply quotation.

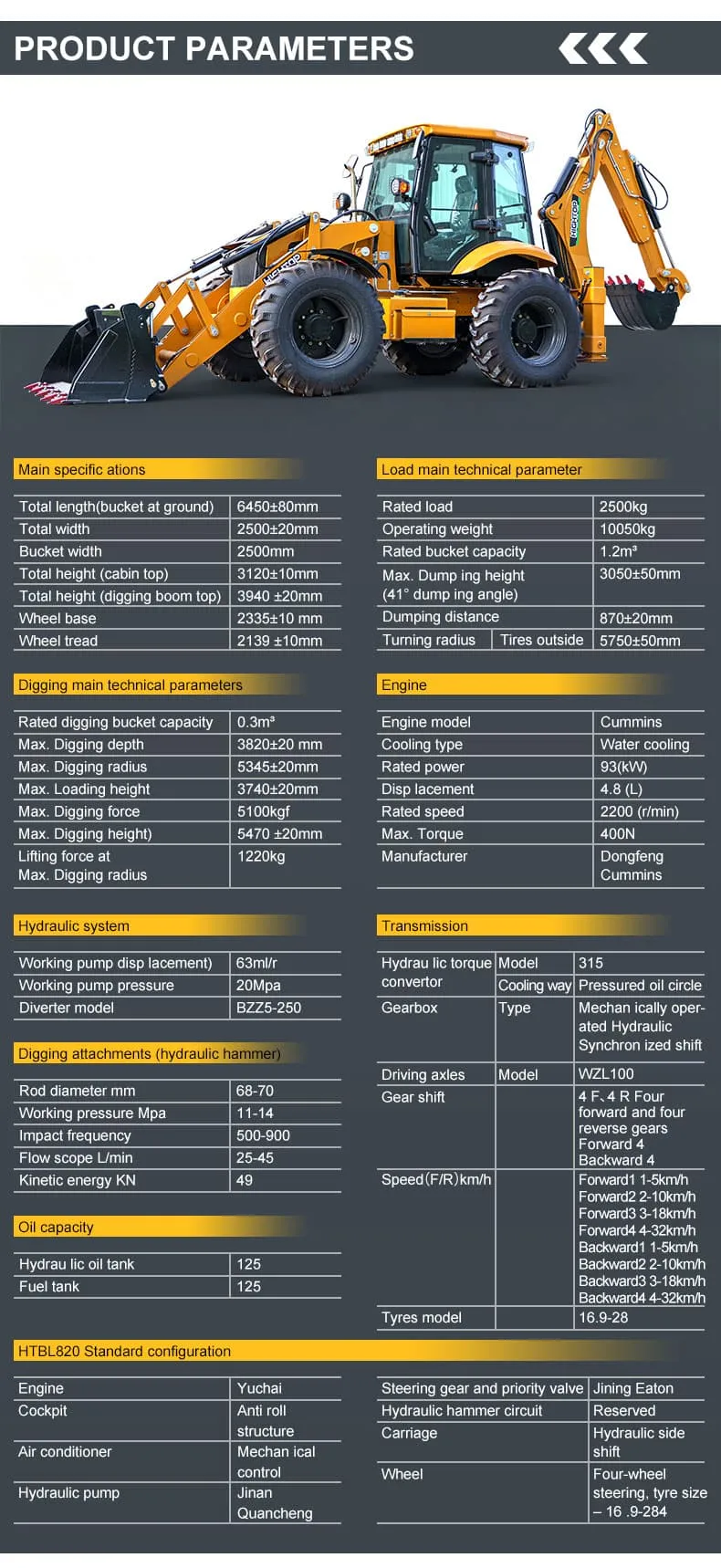

| Item | HTBL820 |
|---|---|
| Model | HTBL820 |
| Operating Weight | 10,050 kg |
| Rated Load | 2,500 kg |
| Front Bucket Capacity | 1.2 m³ |
| Backhoe Bucket Capacity | 0.3 m³ |
| Overall Length | 6,450±80 mm |
| Overall Width | 2,500±20 mm |
| Bucket Width | 2,500 mm |
| Cab Height | 3,120±10 mm |
| Digging Boom Height | 3,940±20 mm |
| Wheel Base | 2,335±10 mm |
| Wheel Tread | 2,139±10 mm |
| Max. Dumping Height | 3,050±50 mm |
| Dumping Distance | 870±20 mm |
| Turning Radius | 5,750±50 mm |
| Max. Digging Depth | 3,820±20 mm |
| Max. Digging Radius | 5,345±20 mm |

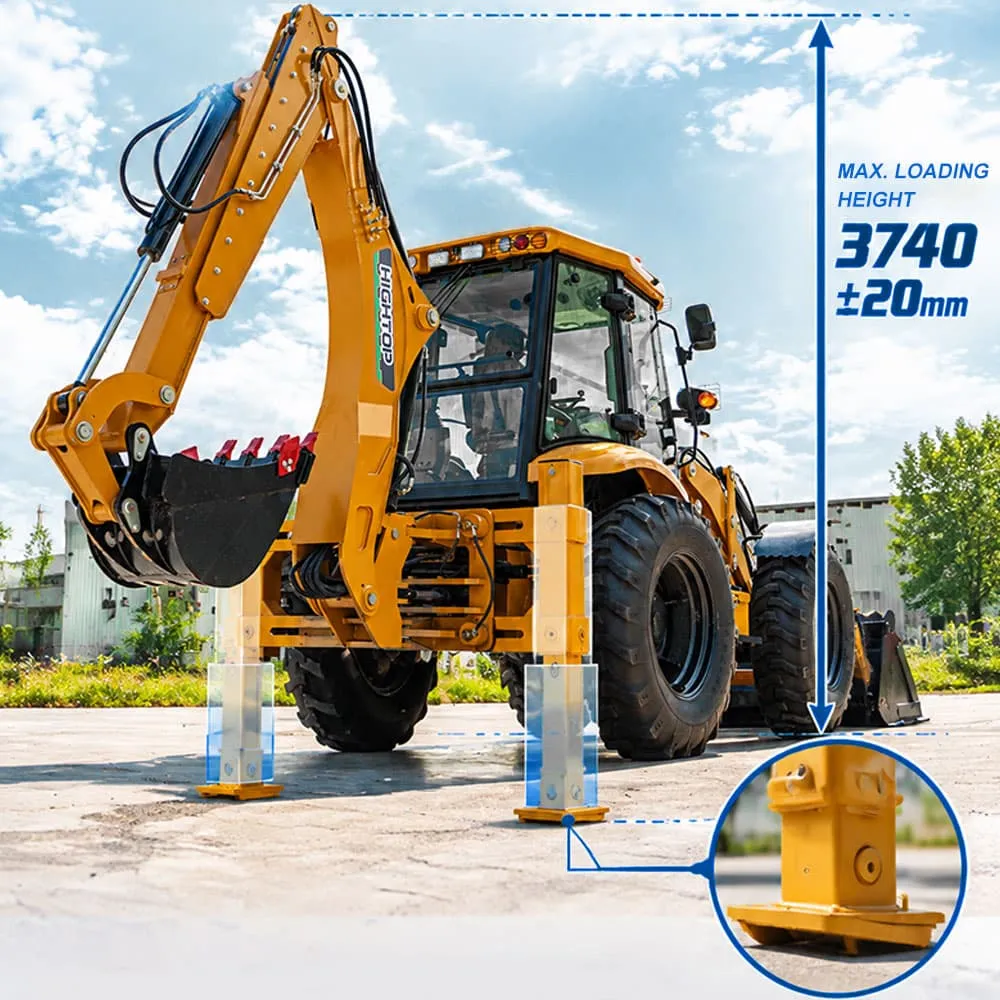

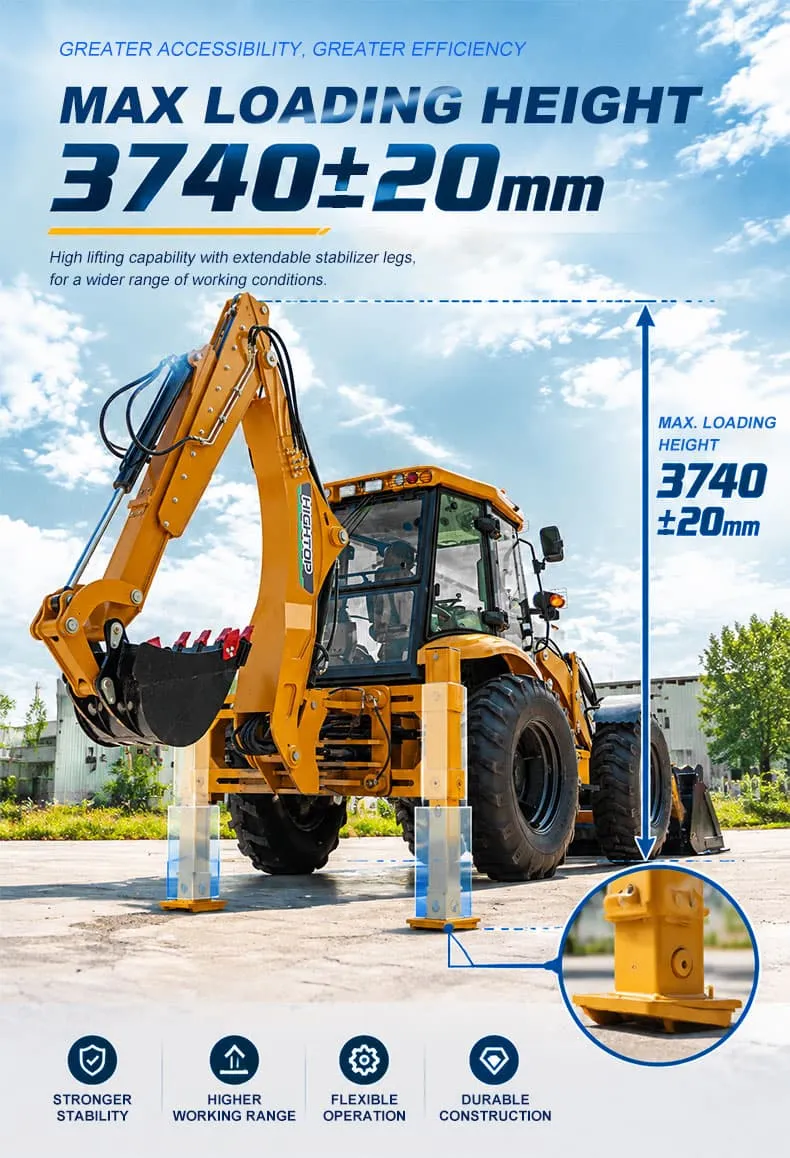

| Max. Loading Height | 3,740±20 mm |
| Max. Digging Height | 5,470±20 mm |
| Max. Digging Force | 5,100 kgf |
| Lifting Force at Max. Digging Radius | 1,220 kg |
| Engine | Cummins |
| Engine Manufacturer | Dongfeng Cummins |
| Rated Power | 93 kW |
| Displacement | 4.8 L |
| Rated Speed | 2,200 r/min |
| Cooling | Water Cooling |
| Working Pump Displacement | 63 ml/r |
| Working Pump Pressure | 20 MPa |
| Diverter Model | BZZ5-250 |
| Hydraulic Torque Converter | 315 |
| Driving Axle | WZL100 |
| Transmission | 4 Forward / 4 Reverse |
| Max. Travel Speed | 32 km/h |
| Tire Size | 16.9-28 |
| Hydraulic Oil Tank | 125 L |
| Fuel Tank | 125 L |
| Steering | Four-Wheel Steering |
What is the HTBL820 operating weight?
The HTBL820 has an operating weight of 10,050kg and a rated load of 2,500kg.
What are the loader and backhoe bucket capacities?
The front loader bucket has a rated capacity of 1.2m³, while the rear digging bucket has a rated capacity of 0.3m³.
What is the digging depth of the HTBL820?
The maximum digging depth is 3,820±20mm, with a maximum digging radius of 5,345±20mm and maximum digging height of 5,470±20mm.
Which engine is used for this backhoe loader?
The HTBL820 is equipped with a Dongfeng Cummins water-cooled engine rated at 93kW, with 4.8L displacement and 2,200 r/min rated speed.
Is the HTBL820 suitable for dealer or fleet sourcing?
The machine can be evaluated for project purchasing, equipment fleets and dealer supply. For a quotation, buyers should provide the required quantity, destination country, application and preferred attachments.
Can the machine be supplied with attachments?

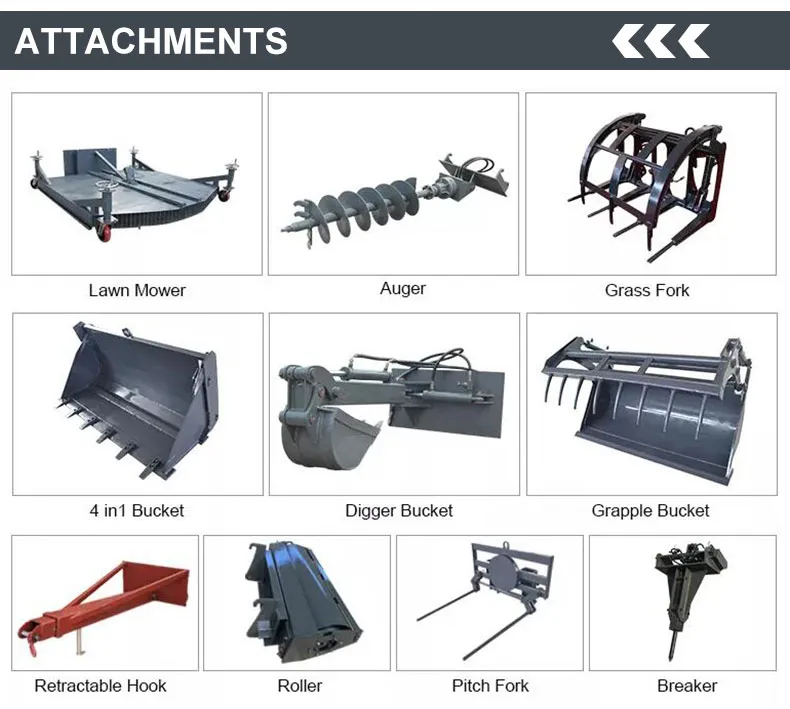

Yes. Available attachment configurations include hydraulic breakers, augers, lawn mowers, forks, 4-in-1 buckets, digging buckets and grapple buckets. The machine also has a reserved hydraulic hammer circuit.
What are the transport dimensions of the HTBL820?
The specified overall dimensions include a total length of 6450±80mm, width of 2500±20mm and cab-top height of 3120±10mm. Buyers should confirm final transport arrangements according to the actual configuration.
What is the maximum travel speed?
The HTBL820 has four forward and four reverse gears, with a maximum speed of 32km/h in fourth gear.
Can I request an export quotation for the HTBL820?
Yes. When requesting a quotation, it is useful to provide the destination country, quantity, required attachments, tire requirements and any configuration requirements so the supply proposal can be prepared accurately.
