HTHY382T Mini Crawler Skid Steer Loader

HTHY382T Mini Skid Steer Loader is highly maneuverable, small and versatile machine, it is the right choice for your manual tasks.

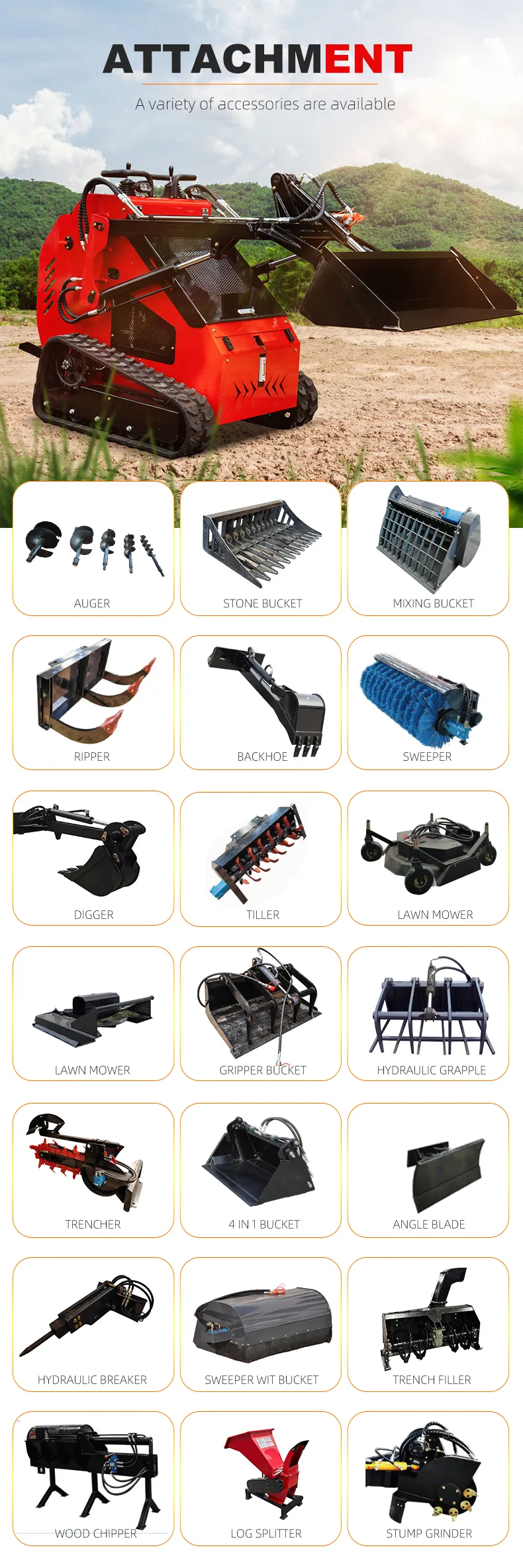

Can be equipped with a variety of different accessories, to achieve digging, shoveling, cleaning, drilling and other functions.

Email: operators@sdchinamachine.com

Tel: 00865373151560

Whatsapp: +86 18162052962

HTHY382T Mini Crawler Skid Steer Loader

description1

Technical parameter

Skid Steer Loader — Parameter Table
Dimensions & Working Range
Max working height	2105mm
Max pin height	1865 mm
Max Dumping height	1390 mm
Max Dumping distance	600mm
Max Dumping Angle	40°
Total height	1415 mm
Ground clearance	125 mm
Overall length without bucket	1685 mm
Total width	1025 mm
Bucket width	1150mm
Total length with bucket	2340mm
Overall length without the bucket after folding the pedal.	1685mm
Engine
Engine	ROAT R740-1
Rated Power (KW)	16.5Kw/3600rpm
Rotating speed (rpm)	3600
Noise (Db)	≤95
Hydraulic System
Pressure (Mpa)	0-16
Flow rate	0-40L
Working Performance
Operating Load	300kg
Bucket Capacity	0.15m³
Max Lifting Force	380kg
Travel Speed	0-4.5Km/h
Operating Weight	890 Kg
Fluid Capacity
Fuel tank	20L
Engine oil	1.7L
Hydraulic tank	35L

Product Introduction

1.Brand Engine:

● Rating Horsepower: 23hp,Kubota® diesel engine

● Engine brand : Briggs & Stratton， RATO, HONDA Gasoline engines and Kubota diesel engine, Kholer；

● World Top Powerful and Reliable Kubota® diesel engine provides exceptional power.

2.Wheeled/tracked

Wear-resistant tires/tracks can be customized Flexible steering, strong grip Suitable for a variety of terrain.

3.Multi-function console

Hydraulic double operating lever Flexible use of high safety factor The numbers are clear to my eyes.

4.Radiator

3s Cooling the machine quickly.Reasonable air duct layout design, Compact structure, rapid heat dissipation.

5.Hydraulic lifting

Thick hydraulic tubing, strong sealing, no oil leakage and oil leakage, stable and stable lifting operation.

6.Convenient operation

The machine is equipped with an advanced attachment latching system for simple, secure connections. The machine's narrow frame easily fits through standard yard gates and is engineered to maneuver in tight, compact spaces for improved productivity in hard-to-reach places.

7.Dual Joystick Controls

Ergonomic operator's station comes standard with dual-level ground drive controls, with an optional joystick,allowing the operator to control each track independently for improved maintenance an mobility on difficult jobsite conditions.
