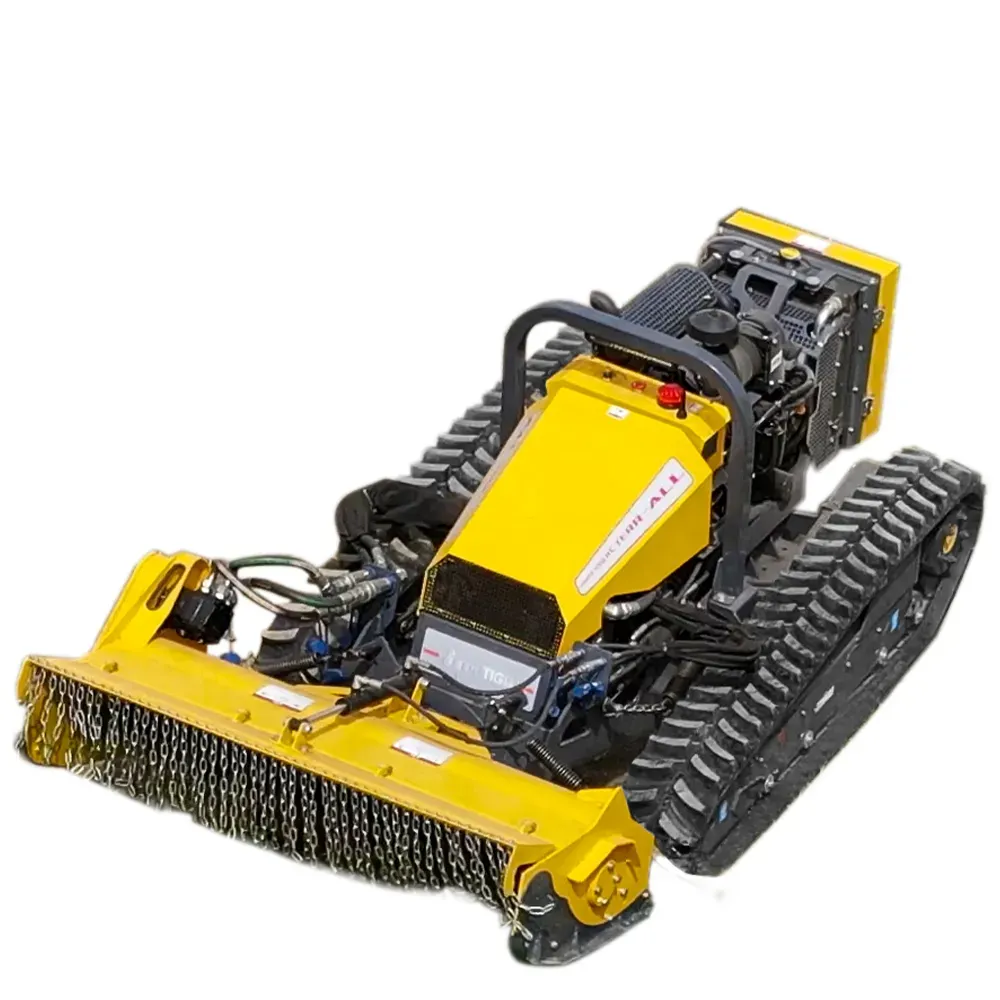

Smartiger 40 Remote Control Flail Mower for Large Areas
The Smartiger 40 is a fully hydraulic tracked mower with remote control operation and a 40 HP YANMAR diesel engine. Its 1400 mm cutting width is suited to larger grass and weed maintenance areas. Share your terrain, vegetation type and required quantity to discuss the right configuration and request a quotation.
Smartiger 40 Remote Control Mower for Large-Scale Vegetation Maintenance

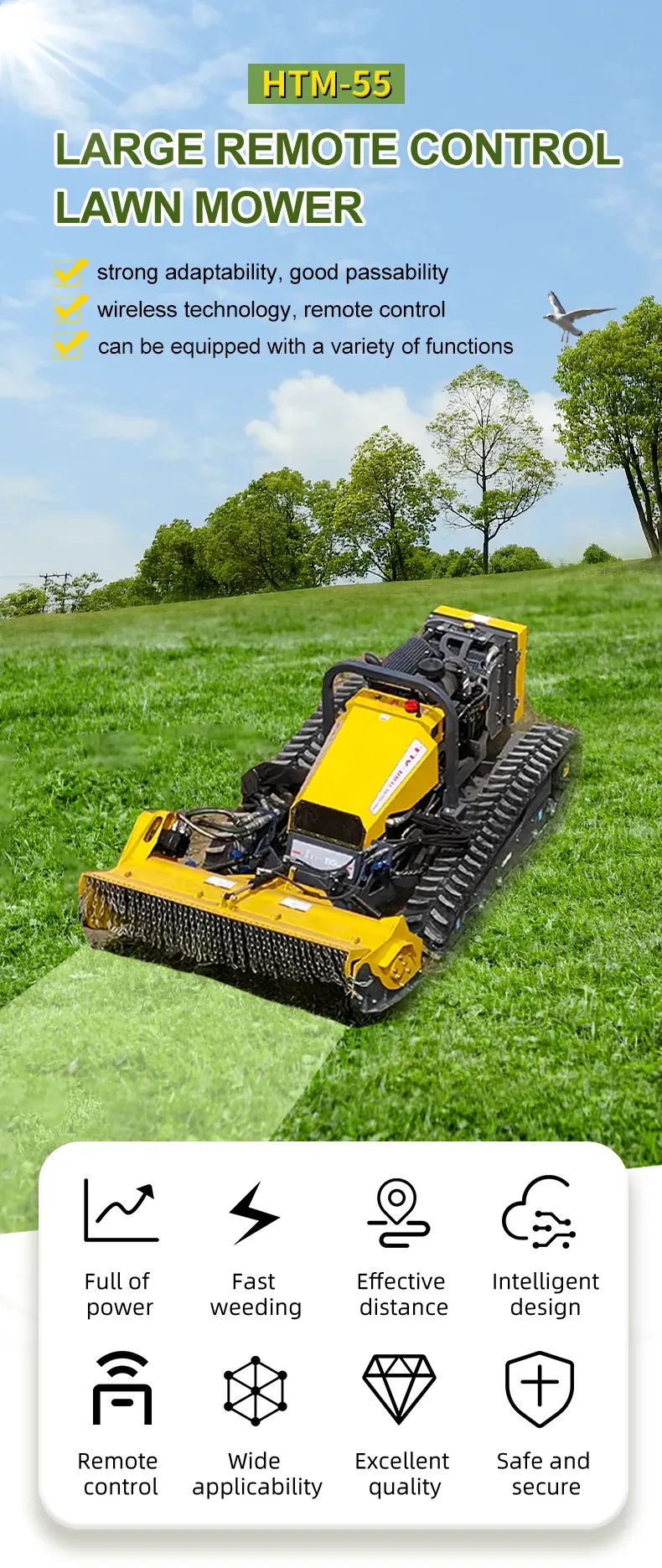

Maintaining large grassed areas, field edges and overgrown ground can take time, particularly when the terrain is uneven or difficult to access. The Smartiger 40 is a tracked, fully hydraulic remote control mower designed for professional vegetation maintenance.
It uses a three-cylinder YANMAR diesel engine rated at 40 HP at 2600 rpm and has a listed cutting width of 1400 mm. This wide cutting path is worth considering for contractors and grounds-maintenance teams that need to cover substantial areas without using a small walk-behind mower.
Wide Cutting Coverage for Routine Mowing

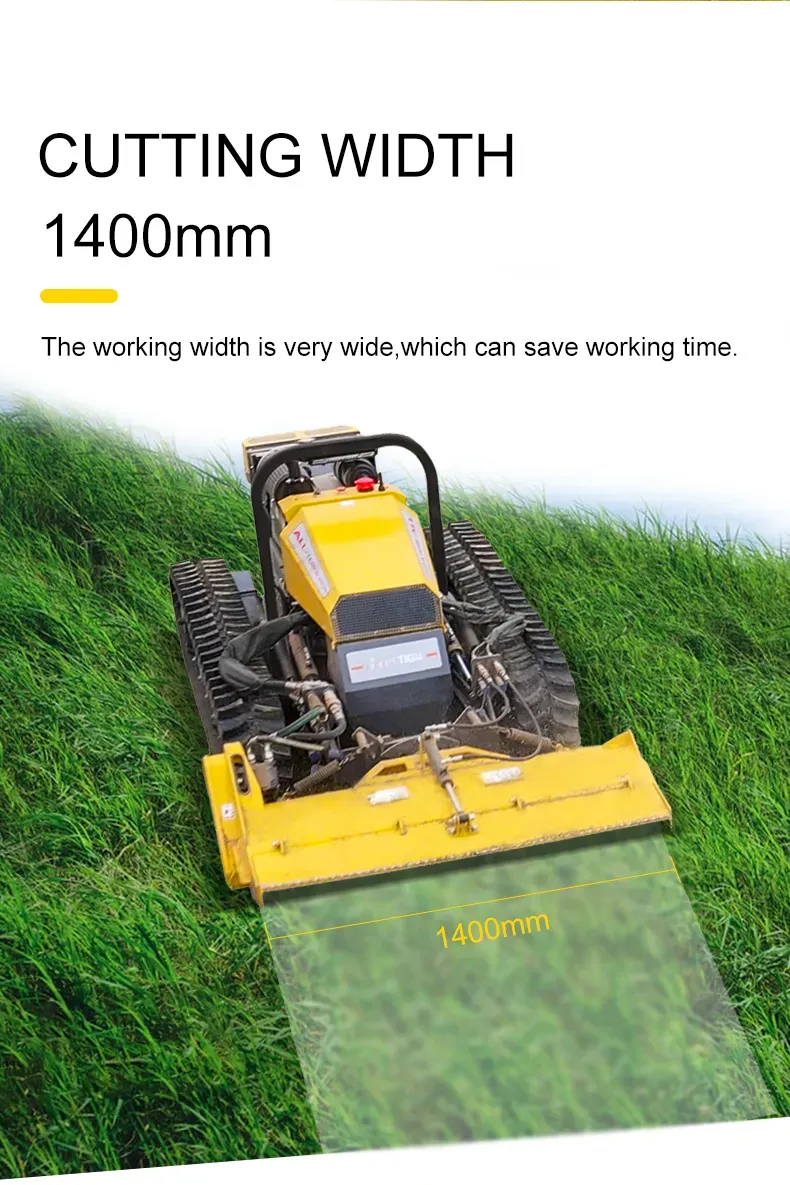

The 1400 mm cutting width gives the Smartiger 40 a broad working path. It can be considered for grass and weed maintenance in community green spaces, grassland, sports fields, golf courses, garden lawns and field areas, depending on the vegetation and site conditions.

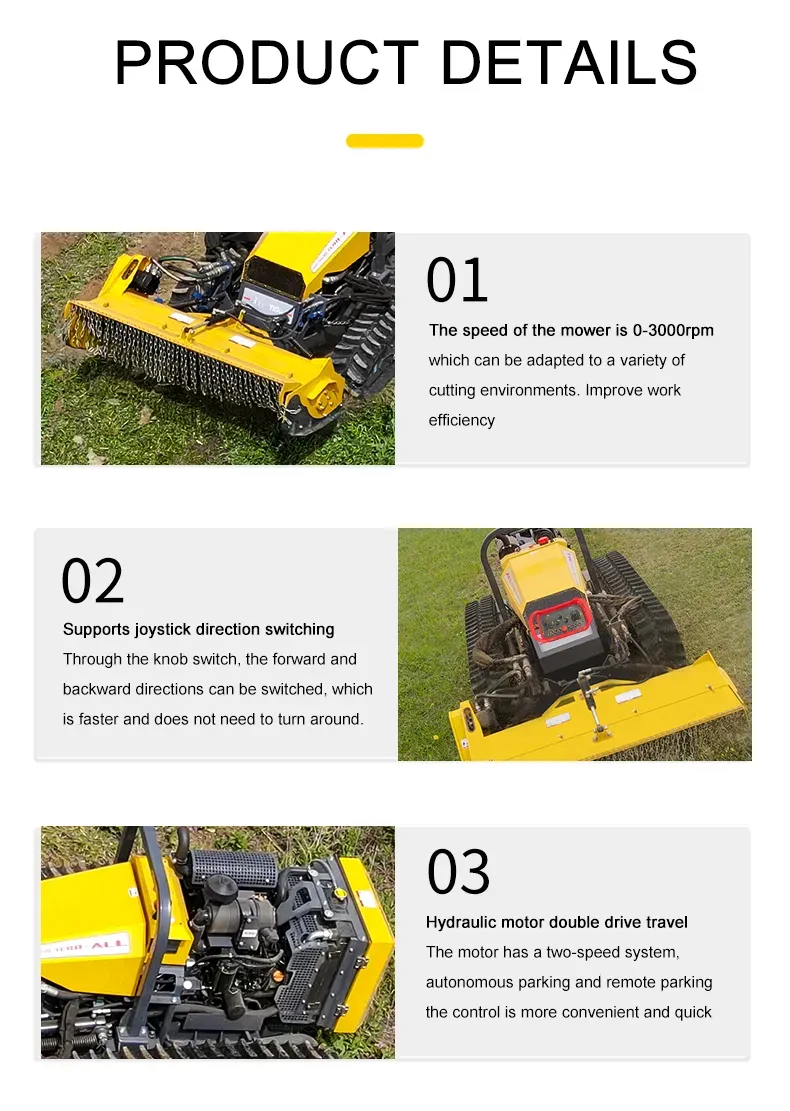

The supplied information lists a cutting-system speed of 0–3000 rpm. Before selecting the machine for dense weeds or woody growth, discuss the type and thickness of vegetation with our team. Cutting performance depends on the material being cut, ground conditions and operating settings.

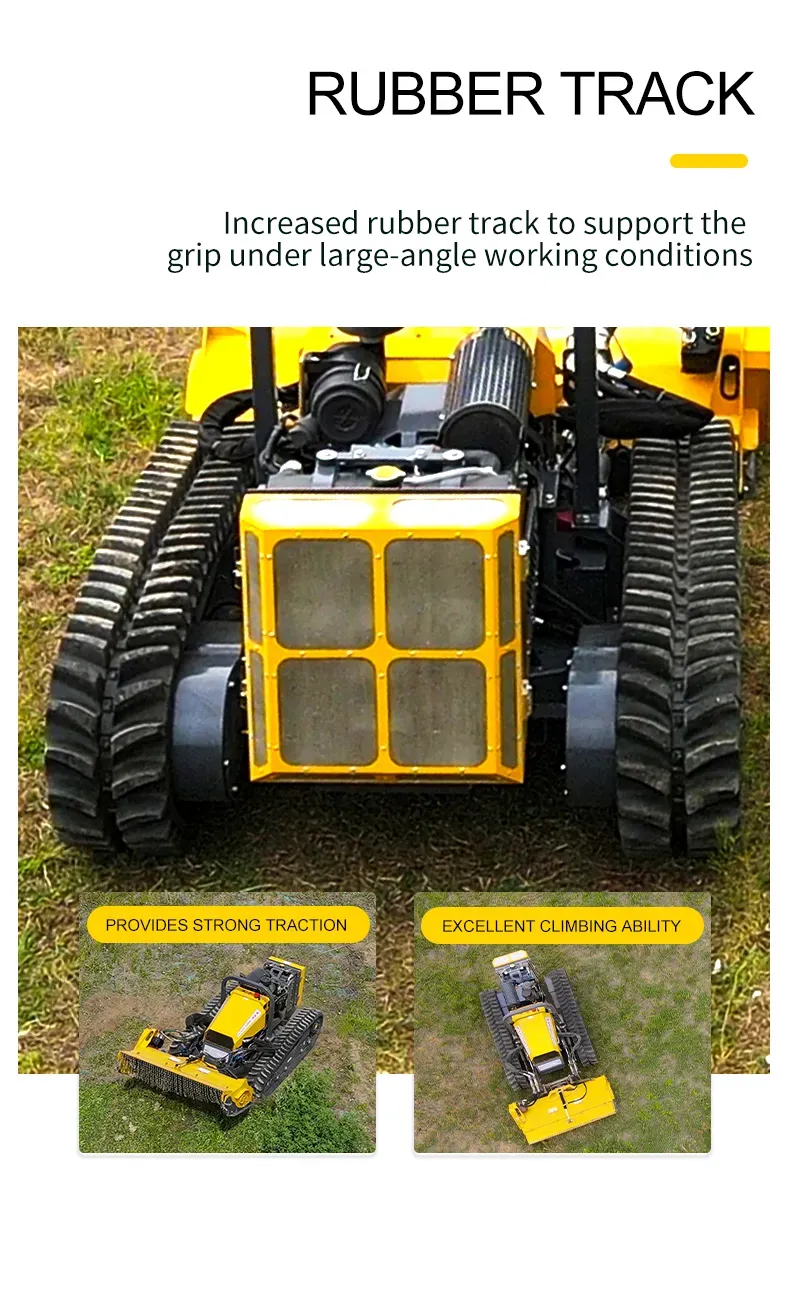

Tracked Travel and Remote Steering
The rubber-track chassis provides a broad contact area with the ground. Its hydraulic travel system and remote controls allow the operator to manage machine movement without riding on the mower.

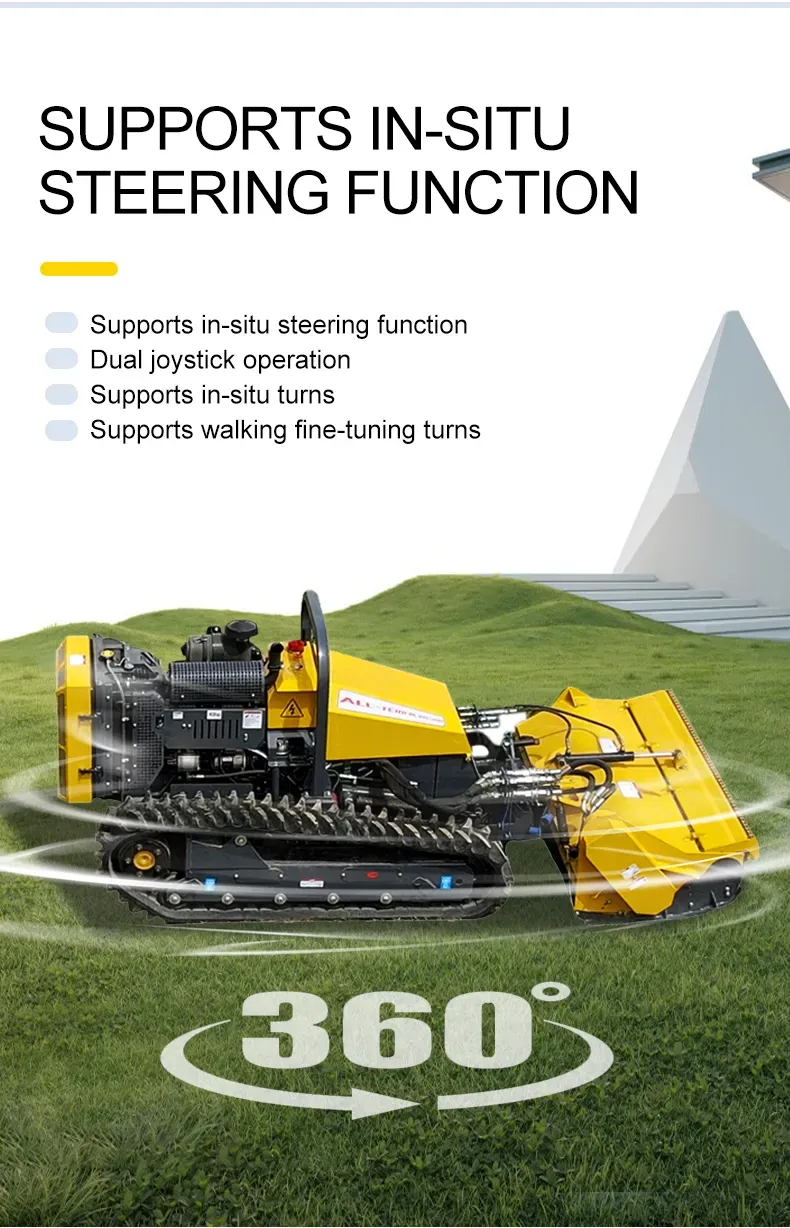

The listed control functions include dual-joystick operation, forward and reverse direction switching, in-place turns and fine steering adjustments. A two-speed travel system and autonomous and remote parking functions are also listed in the supplied product information. Confirm the available control configuration when ordering.
Consider the Terrain Before Choosing a Slope Mower

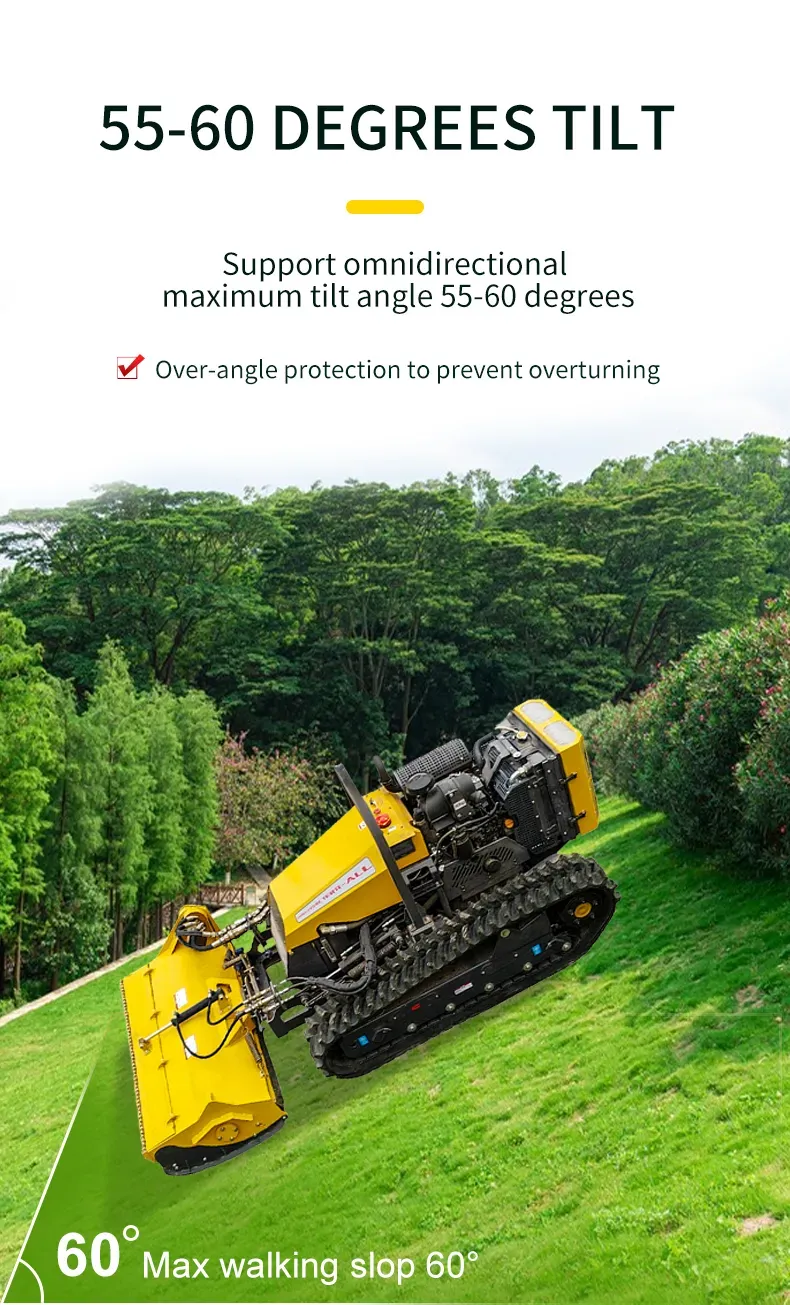

The product materials describe the Smartiger 40 as suitable for varied terrain and include a maximum tilt figure of 55–60 degrees. However, the specification image also lists an alarm at 50 degrees and automatic shutdown at 55 degrees. The approved operating angle must be confirmed before the machine is selected for steep-slope work.
A stated maximum angle should not be treated as a guarantee for every slope. Ground firmness, moisture, track traction, vegetation and the working direction all matter. If your project involves steep banks or uneven ground, send us the approximate gradient and site photos so the application can be reviewed.
Engine and Hydraulic Configuration
The listed engine is a three-cylinder, four-cycle, water-cooled YANMAR diesel engine with direct injection. Its gross output is 40 HP at 2600 rpm, with a listed torque of 107.7 Nm and a 28-litre fuel tank.
The hydraulic system is listed with three tandem piston pumps and one gear pump, high-torque travel motors and an independent circuit for the flail head. The hydraulic oil tank capacity is 23 litres, with 40 litres held in the system. These details help buyers compare the machine's configuration with their operational requirements.
Dimensions and Delivery Planning
With the flail head fitted, the listed overall dimensions are 2900 × 1500 × 1300 mm. The main machine weight is 1250 kg, and the flail head weighs 200 kg. Confirm packing dimensions, final shipment weight and loading arrangements before transport.
Ask About the Smartiger 40
When requesting a quotation, please tell us what you need to cut, the type of ground, your destination country and the number of machines required. For slope work, include the approximate gradient and whether the surface is firm, loose or wet.
These details will help our team review your application, confirm the machine configuration and prepare a quotation based on your requirements.
```

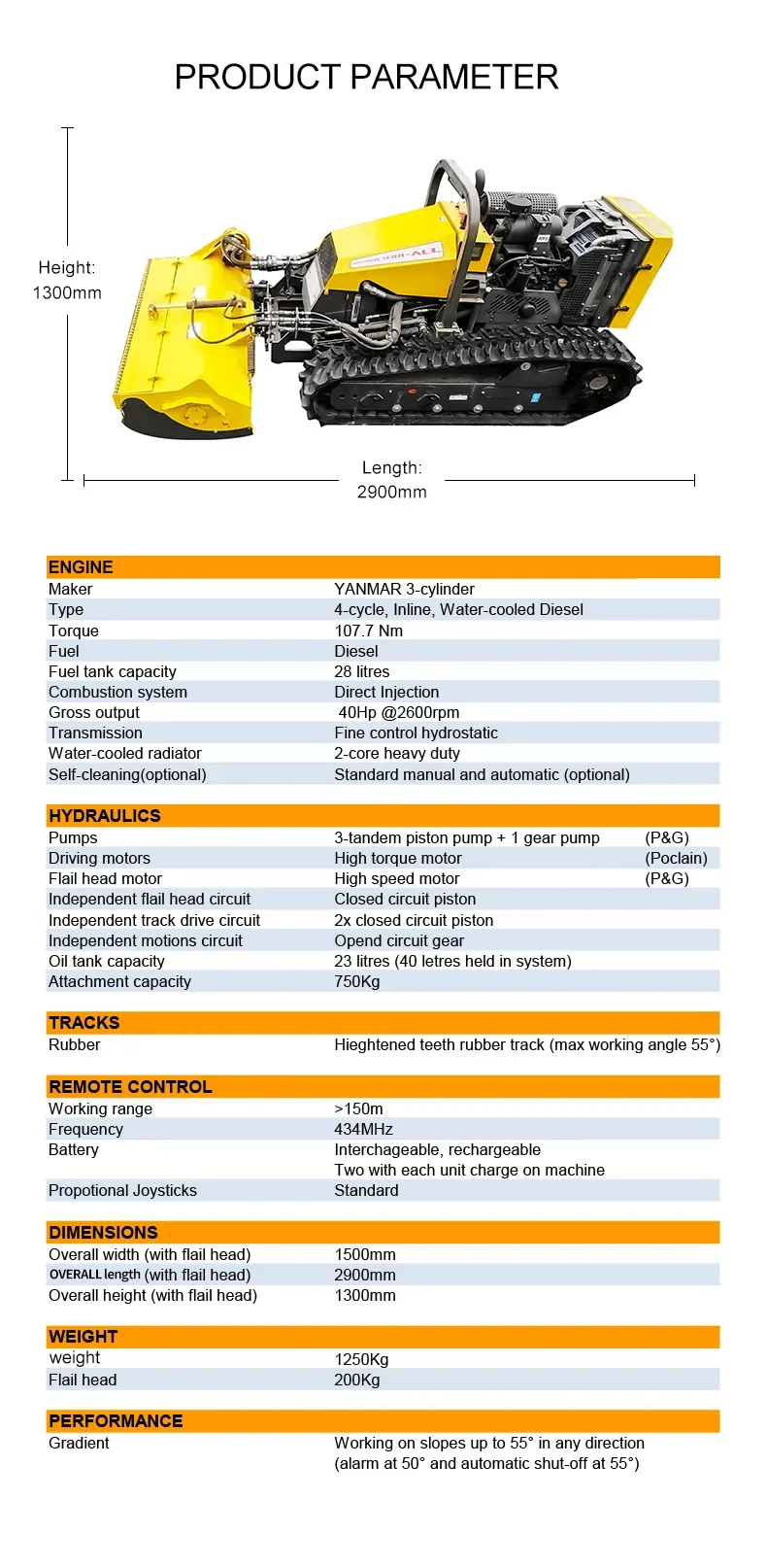

| PRODUCT PARAMETER | |
|---|---|
| ENGINE | |
| Maker | YANMAR 3-cylinder |
| Type | 4-cycle, Inline, Water-cooled Diesel |
| Torque | 107.7 Nm |
| Fuel | Diesel |
| Fuel tank capacity | 28 litres |
| Combustion system | Direct Injection |
| Gross output | 40Hp @2600rpm |
| Transmission | Fine control hydrostatic |
| Water-cooled radiator | 2-core heavy duty |
| Self-cleaning(optional) | Standard manual and automatic (optional) |
| HYDRAULICS | |
| Pumps | 3-tandem piston pump + 1 gear pump (P&G) |
| Driving motors | High torque motor (Poclain) |
| Flail head motor | High speed motor (P&G) |
| Independent flail head circuit | Closed circuit piston |
| Independent track drive circuit | 2x closed circuit piston |
| Independent motions circuit | Opened circuit gear |
| Oil tank capacity | 23 litres (40 litres held in system) |
| Attachment capacity | 750Kg |
| TRACKS | |
| Rubber | Hieghtened teeth rubber track (max working angle 55°) |
| REMOTE CONTROL | |
| Working range | >150m |
| Frequency | 434MHz |
| Battery | Interchageable, rechargeable Two with each unit charge on machine |
| Proportional Joysticks | Standard |
| DIMENSIONS | |
| Overall width (with flail head) | 1500mm |
| OVERALL length (with flail head) | 2900mm |
| Overall height (with flail head) | 1300mm |
| WEIGHT | |
| weight | 1250Kg |
| Flail head | 200Kg |
| PERFORMANCE | |
| Gradient | Working on slopes up to 55° in any direction (alarm at 50° and automatic shut-off at 55°) |
Frequently Asked Questions
1. What kind of work is the Smartiger 40 designed for?
The Smartiger 40 is a tracked remote control flail mower for maintaining large grassy areas, field edges, community green spaces and other vegetation-covered sites. Its 1400 mm cutting width helps cover more ground per pass, while remote operation lets the operator control the machine from a distance. The best setup depends on the vegetation, terrain and working area.
2. How powerful is the engine, and what type of fuel does it use?
This model is equipped with a 40 HP YANMAR three-cylinder, water-cooled diesel engine rated at 2600 rpm. It uses direct fuel injection and has a 28 L fuel tank. For buyers comparing remote control mowers, engine power is only part of the decision; the vegetation being cut and the conditions underfoot also affect working performance.
3. Can the Smartiger 40 mow on steep slopes?
The machine is designed for sloped terrain, but the allowable working angle needs to be confirmed before purchase. The supplied specifications state an alarm at 50° and automatic shutdown at 55°, while other product material mentions a maximum slope of 60°. These figures should not be treated as interchangeable. Please confirm the approved operating limit for your intended terrain with our team before use.
4. How far away can the operator control the mower?
The supplied specifications list a remote-control range of more than 150 m and an operating frequency of 434 MHz. Actual range can vary with terrain, obstacles and local radio conditions. If you need to work around buildings, trees or other potential sources of interference, tell us about the site so we can help assess whether the setup is suitable.
5. What cutting width and machine size should I plan for?
The Smartiger 40 has a 1400 mm cutting width. With the flail head fitted, its listed overall dimensions are approximately 2900 mm long, 1500 mm wide and 1300 mm high. The machine weighs 1250 kg, with the flail head listed separately at 200 kg. Check access routes, transport arrangements and ground conditions before scheduling delivery.
6. What should I provide when requesting a quotation?
Tell us what vegetation you need to cut, whether the site is flat or sloped, the approximate area to maintain and how often the machine will be used. It also helps to share your delivery country and any transport or attachment requirements. With this information, we can discuss the Smartiger 40 configuration and provide a more relevant quotation.
