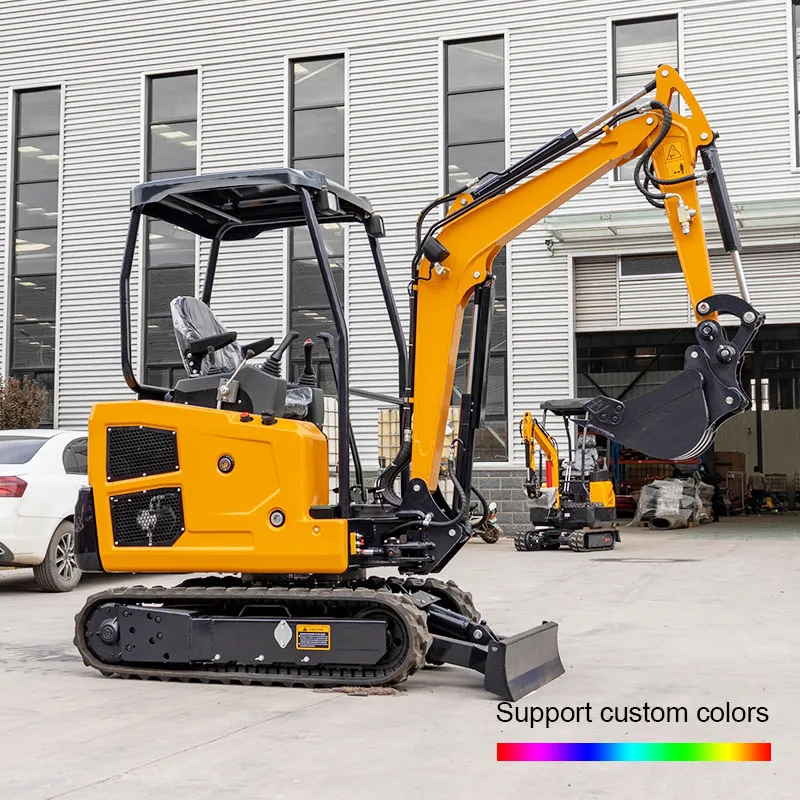

18-5 1800kg Mini Excavator
|
Model |
HT18-5 |
|
Machine Size |
|
|
Overall dimension (L*W*H) |
3865mm*1050mm*2270mm |
|
Axle base(Track length on ground) |
1230mm |
|
Track gauge |
820mm |
|
Min.Ground clearance |
210mm |
|
Swing radius at tail |
1125mm |
|
Track System |
|
|
Maximum Travel speed |
3.5km/h |
|
Width of track shoe(Rubber & steel track) |
230mm |
|
Number of track shoe per side(Steel track only) |
38 pcs |
|
Number of upper roller/ bottom roller（per side） |
0/4 |
|
Performance Parameter |
|
|
Standard bucket capacity |
0.06m³ |
|
Swing speed |
10~12 rpm |
|
Max. Grade ability |
35° |
|
Max. Bucket digging force |
14KN |
|
Max. Arm digging force |
10KN |
|
Hydraulic system pressure |
18Mpa |
|
Machine weight |
1800kg |
|
Engine |
|
|
Emission Standard |
Euro 5/EPA |
|
Engine Brand / Power |
Kubota D1105 14.2kw，Perkins 14.7kw，Laidong 3TE25 18.4Kw |
|
Number of cylinder |
3 |
|
Working Range |
|
|
Max. Digging height |
3365mm |
|
Max. Dumping height |
2385mm |
|
Max. Digging depth |
2050mm |
|
Max. Vertical digging depth |
1725mm |
|
Max. Digging radius |
3860mm |
|
Min .swing radius |
1720mm |
|
Max. Lifting height of blade |
230mm |
|
Max. Cutting depth of blade |
275mm |
|
Boom swing angle(Left) |
75° |
|
Boom swing angle(Right) |
45° |
