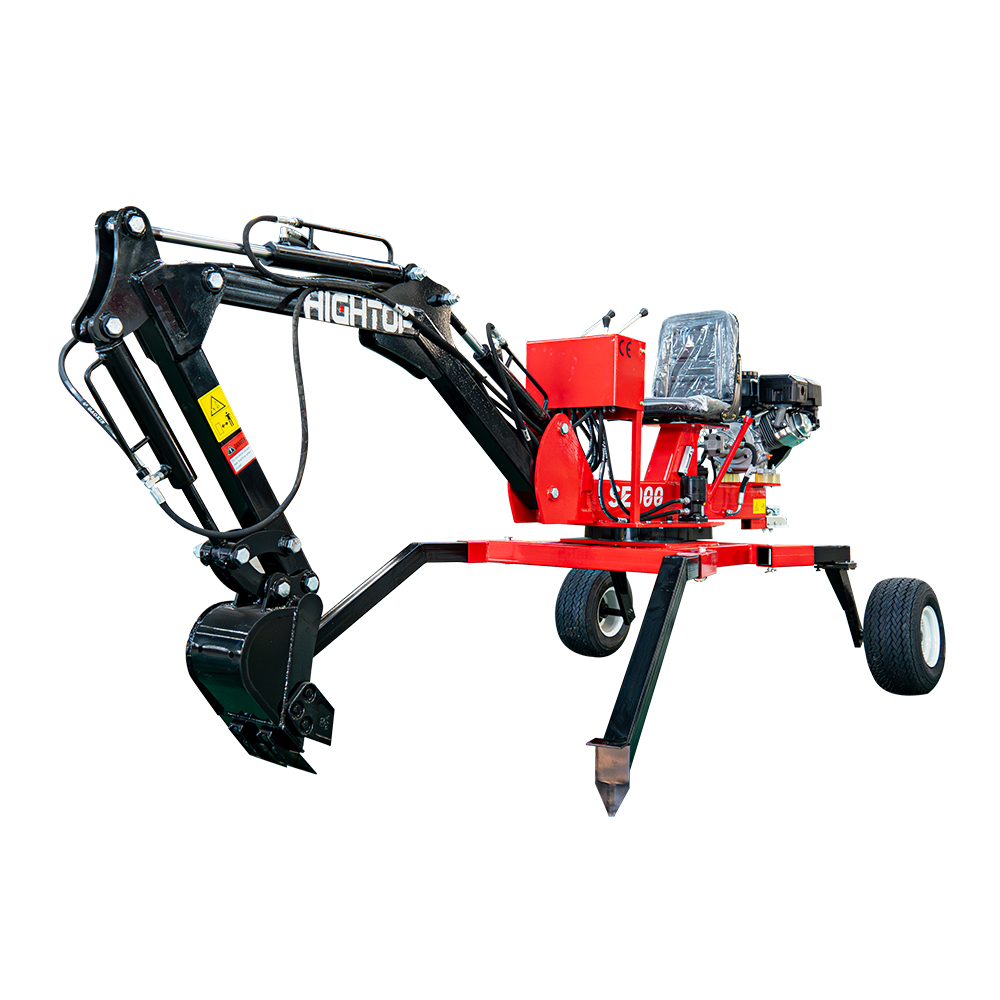

SE-900 Spider Excavator
360 degree slewing structure，An external hydraulic oil filter element has been installed，Shock-Absorbing Pads，all-terrain walking excavator

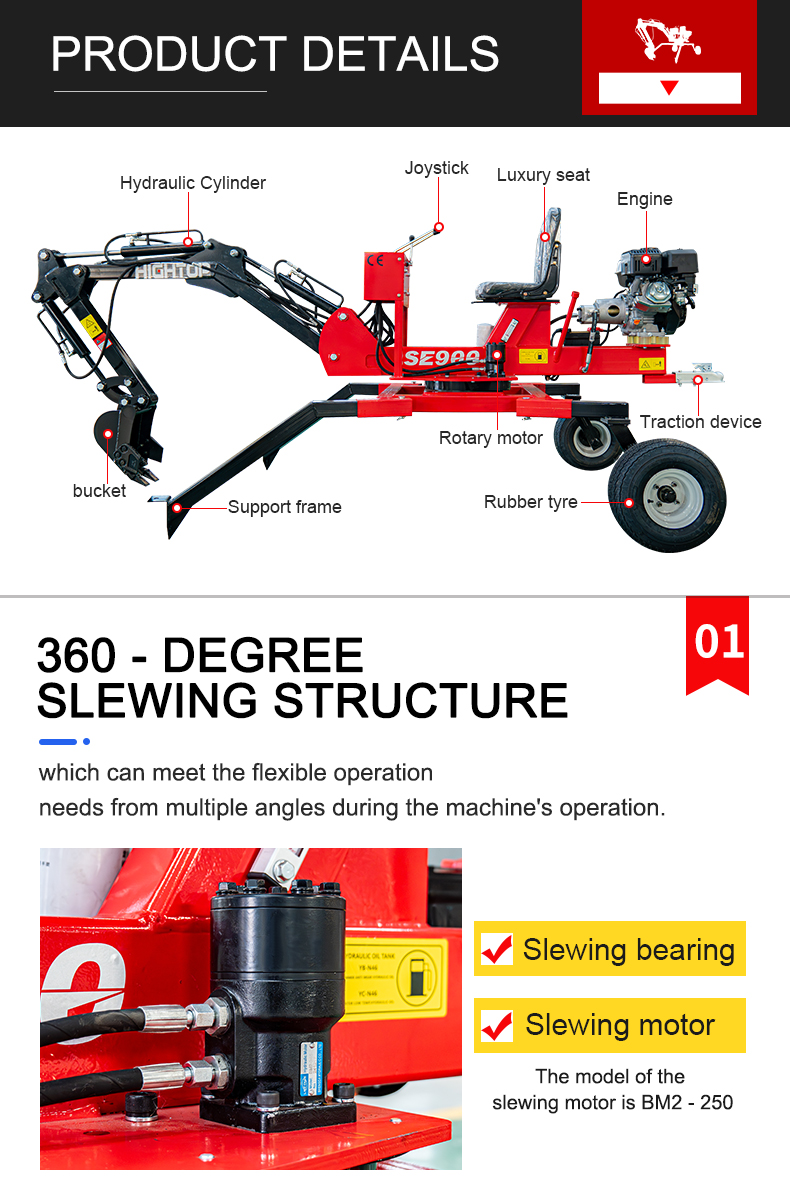

1.360 degree slewing structure
which can meet the flexible operation
needs from multiple angles during the machine's operation.
2.An external hydraulic oil filter element has been installed
Easy and fast maintenance
Good filtration effect
Compared with the internal filter element
3.Shock-Absorbing Pads
Compared with other products,this product is equipped with additional shock-absorbing pads.
These pads can effectively nitigate the engine's vibration.
thus significantly prolonging the engine's service life.
4.all-terrain walking excavator
Spider excavators are capable of operating on sloping
surfaces and crawling on mountainous terrain
Having strong off-road capabilities
Can turn around in 360 degrees to work

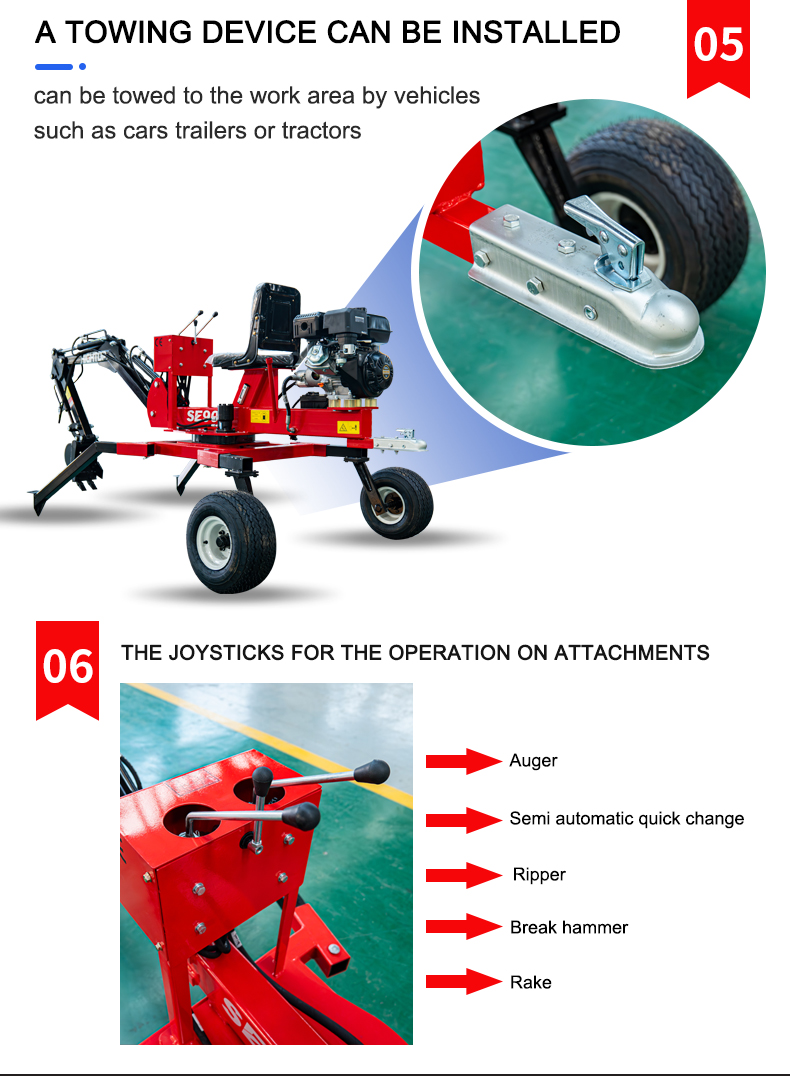

- a towing device can beinstalled
can be towed to the work area by vehicles such as cars trailers or tractors

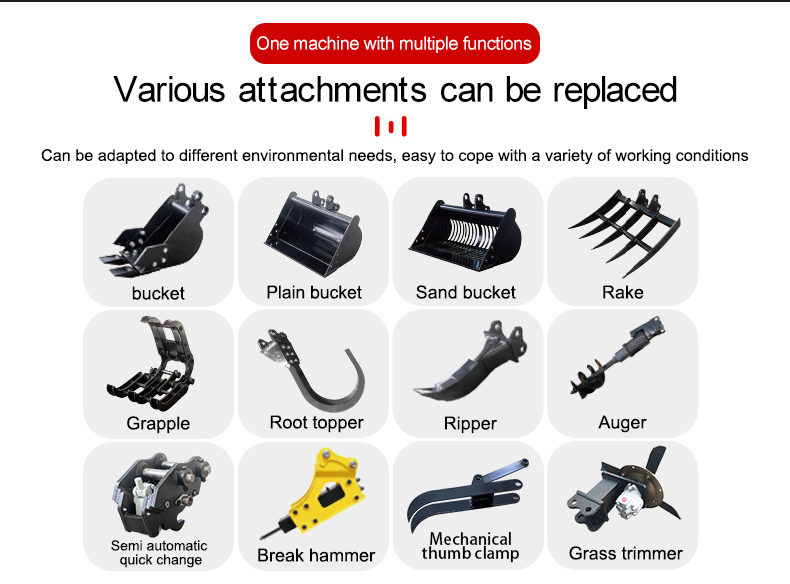

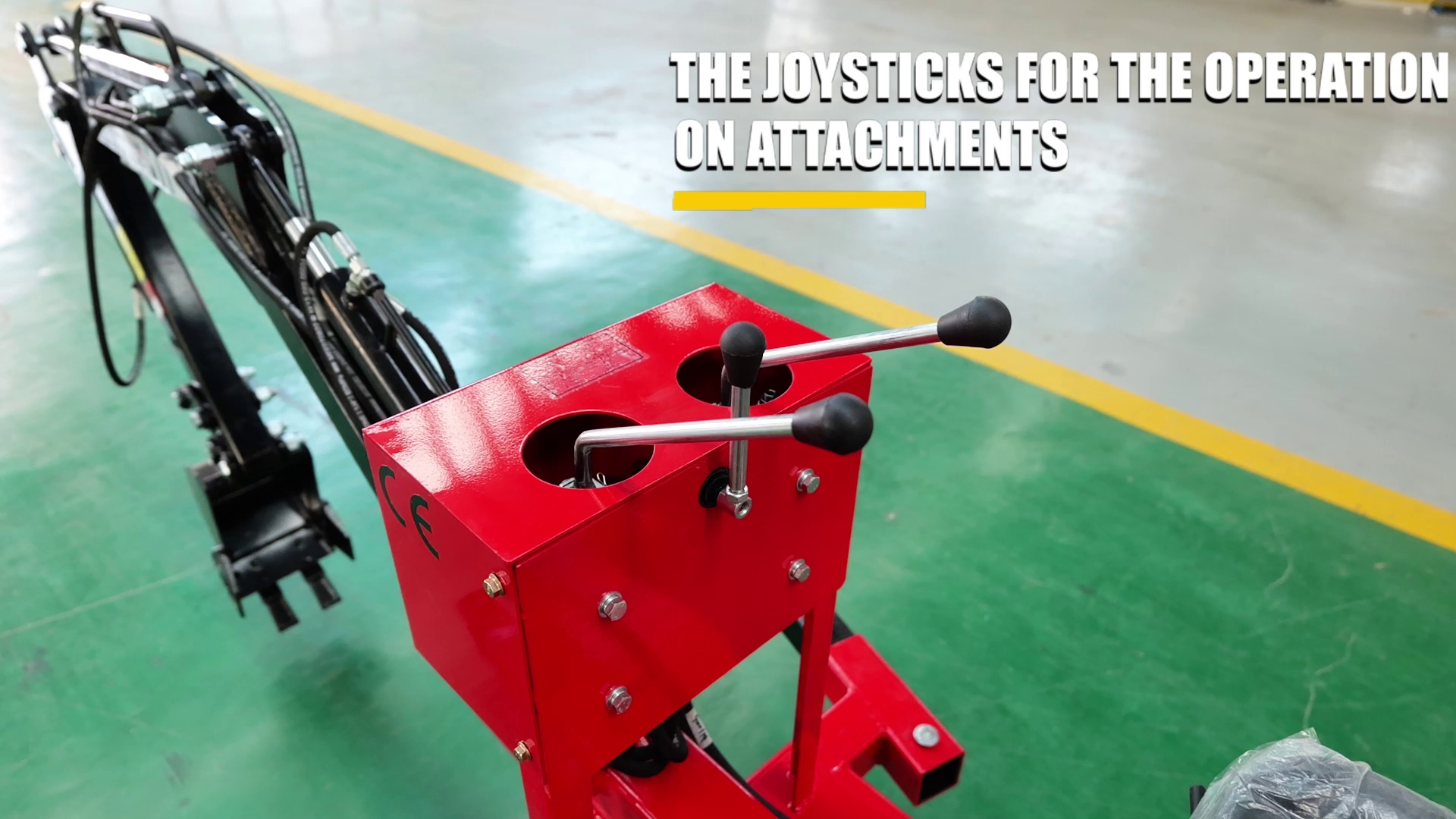

6.the joysticks for the operation on attachments
Auger
Semi automatic quick change
Ripper
Break hammer
Rake

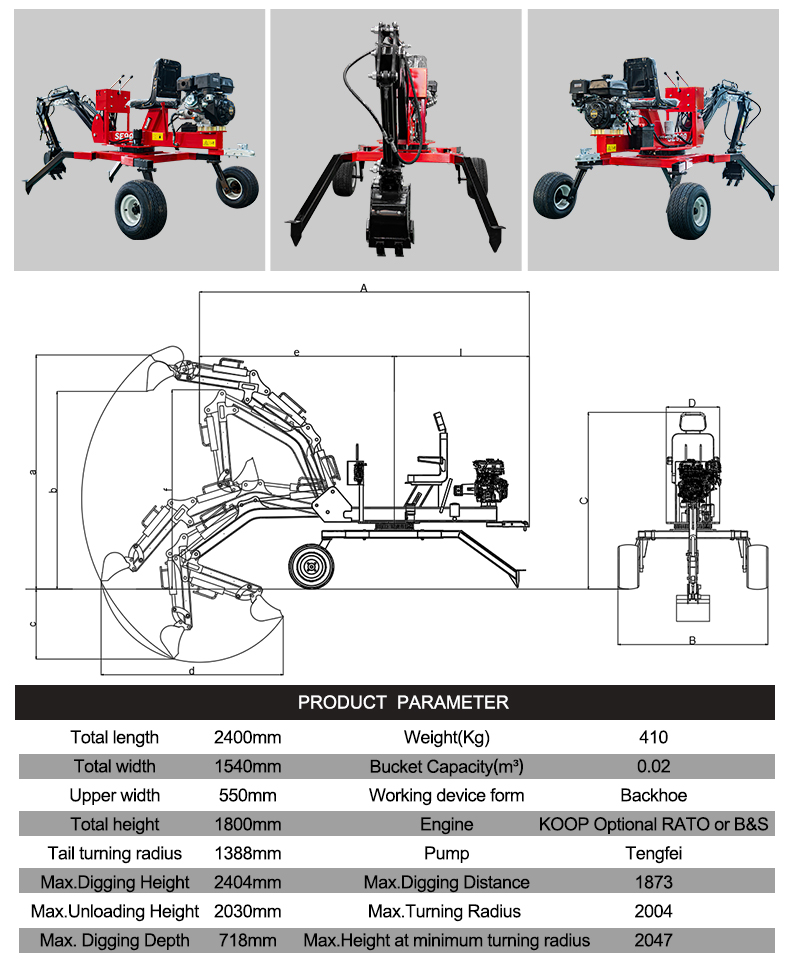

| Spider Excavator SE900 | |
| Overall Dimension（mm） | |
| Total length | 2400mm |
| Total width | 1540mm |
| Upper width | 550mm |
| Total height | 1800mm |
| Tail turning radius | 1388mm |
| Working Range（mm） | |
| Max.Digging Height | 2404 |
| Max. Unloading Height | 2030 |
| Max. Digging Depth | 718 |
| Max.Digging Distance | 1873 |
| Max. Turning Radius | 2004 |
| Max.Height at minimum turning radius | 2047 |
| Performance Parameter | |
| Weight(Kg) | 410 |
| Bucket Capacity(m³） | 0.02 |
| Working device form | Backhoe |
| Main Parts | |
| Engine | KOOP Optional RATO or B&S |
| Pump | Tengfei |
