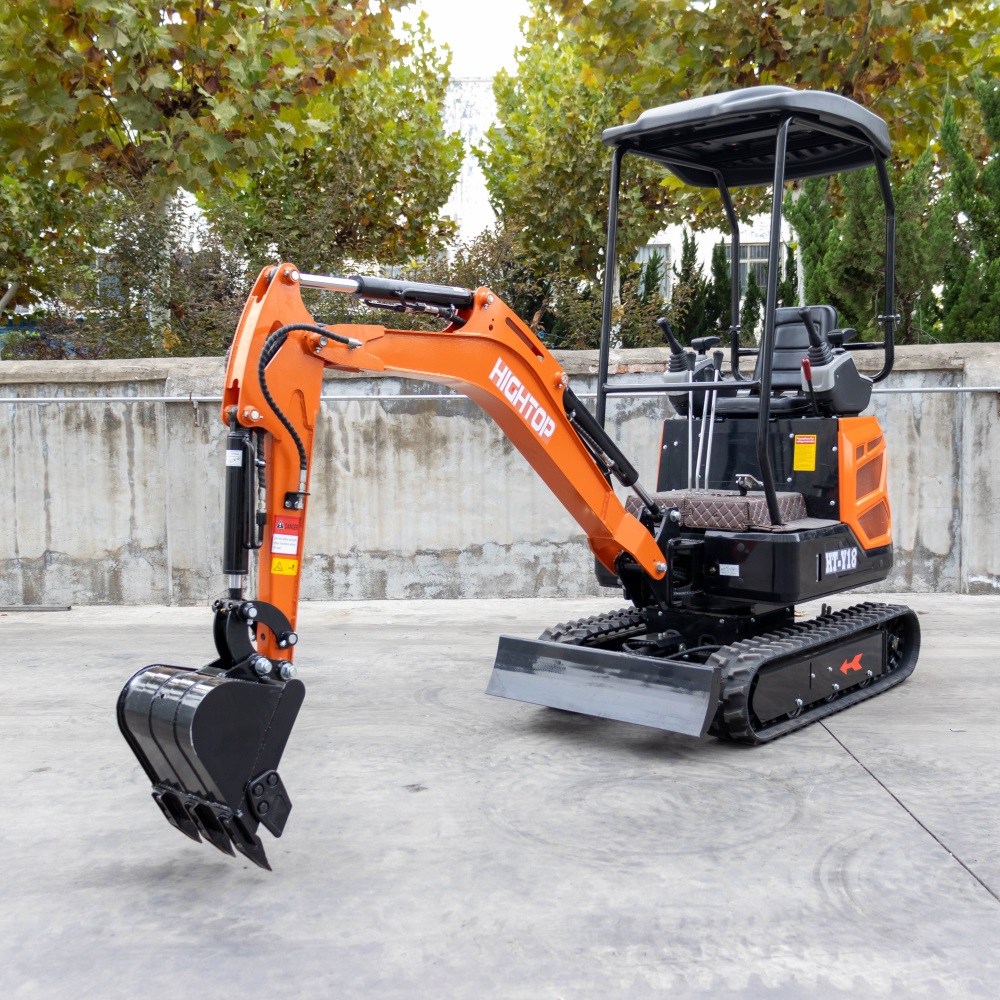

HT-18Y 1.8T Mini Excavator
The Hightop HT-Y18 1.8T mini excavator is a compact crawler digger powered by a 14kw EPA/Euro5 engine. It offers a 1.9m digging depth, 0.04m³ bucket capacity, and optional swing boom & retractable track. CE certified — ideal for orchard, greenhouse, landscaping, and narrow urban job sites.
Main Feature：
Compact and flexible: the fuselage size is small, the turning radius is short, and it can be operated in a narrow space, such as in greenhouses, interior decoration sites, narrow urban streets and small gardens, and it can be easily excavated through narrow channels and close to obstacles.

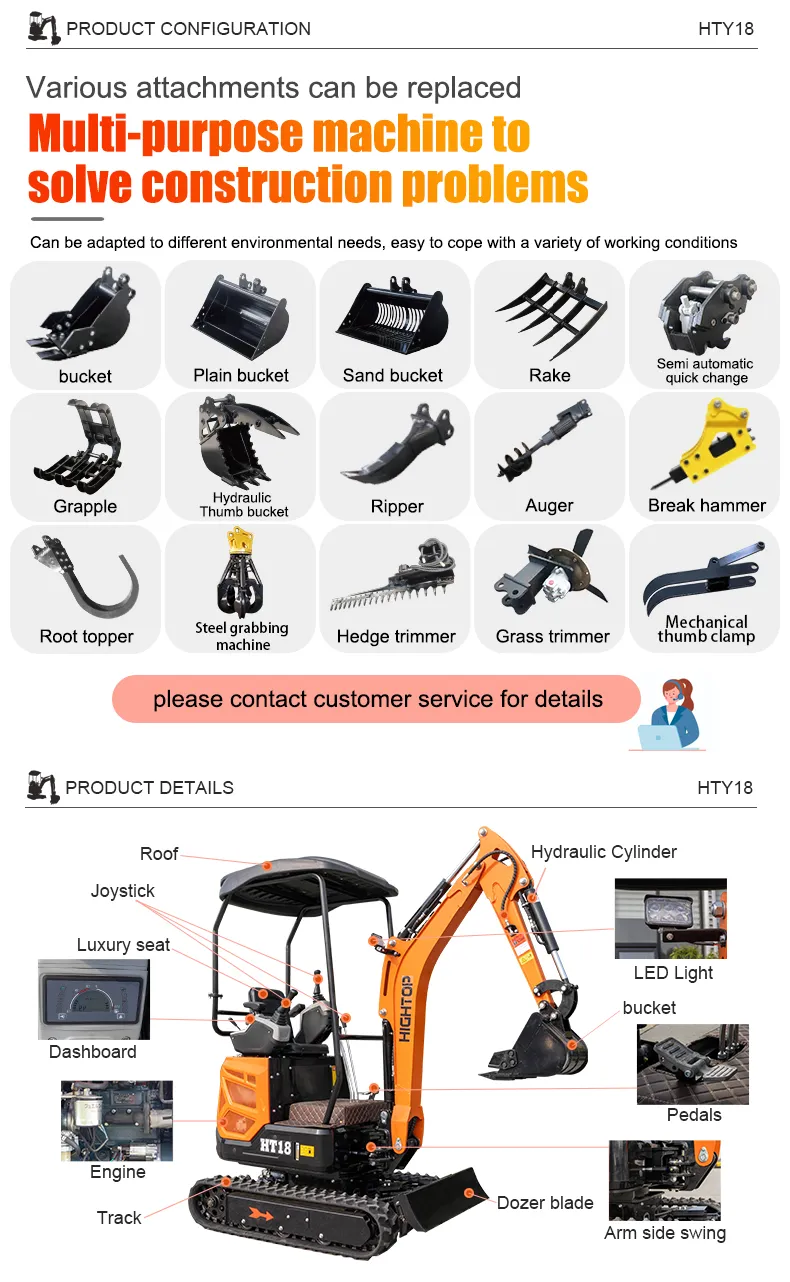

Multifunctional use: with digging, loading, leveling, earth-moving, crushing, ditching, drilling and other functions, through the quick replacement of accessories, can adapt to different working conditions, improve machine utilization. For example, in orchards, digging pits, fertilization, weeding and other operations can be carried out; In municipal engineering, it can be used for road repair, pipe trench excavation and material loading.
Easy to operate: the general use of humanized design of the operating system, the control handle layout is reasonable, the operation force is moderate, easy to get started, reduce the labor intensity of the operator, even less experienced operators can quickly master the operation skills.
Easy transportation: The overall weight is light, small size, easy to use trailers or minivans for transportation, can quickly transfer the work site, improve the mobility and utilization of equipment.
Application Scenario：
Agricultural field: HT-Y18 mini excavator is suitable for orchard, vegetable greenhouses, soil thinning, digging, fertilization, weeding and other operations, such as kiwifruit, vineyard, orange orchard, navel orange orchard and other orchards for planting pit excavation and daily maintenance work.
Municipal engineering: Hightop compact excavator can be used in urban greening, road repair, trench excavation, cable laying and other small projects, but also in the narrow streets and residential areas of the city, with little impact on the surrounding environment.
Building construction: In small building construction sites, mini excavators can carry out foundation excavation, demolition and excavation during interior decoration, as well as some corner excavation operations with high space requirements.
Landscape: Small excavator is suitable for the construction and maintenance of parks, gardens, scenic spots and other landscape, terrain shaping, tree pit digging, water system finishing and other work
| HT18Y Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Weight | 1800kg |
| Bucket Capacity | 0.04m³ |
| Bucket Width | 450mm |
| Performance Parameters | |
| Engine Model | 722 |
| Engine Power | 14kw/3600rpm |
| Climbing Capacity | 30° |
| Maximum Digging Force (Boom) | 9.5KN |
| Maximum Digging Force (Bucket) | 17.2KN |
| Travel Speed | 3km/h |
| Maximum Tractive Force | 22KN |
| Platform Rotation Speed | 8-10 r/min |
| Working Pressure | 17mpa |
| Tilt Angle | 45° |
| Motor Flow | 36 L/min |
| Working Range (Unit: mm) | |
| Digging Width | 980mm |
| Maximum Excavation Height | 3225mm |
| Maximum Excavation Radius | 3470mm |
| Maximum Digging Depth | 1910mm |
| Maximum Vertical Arm Digging Depth | 1500mm |
| Minimum Turning Radius | 1390mm |
| Maximum Height at Minimum Turning Radius | 2400mm |
| Transportation Dimensions (Unit: mm) | |
| Overall Length | 3320mm |
| Overall Width | 980mm |
| Overall Height | 2400mm |
| Undercarriage Parameters (Unit: mm) | |
| Track Length | 1500mm |
| Chassis and Ground Height | 150mm |
| Platform and Ground Height | 450mm |
| Tail Turning Radius | 830mm |
| Track Center Distance | 775mm |
| Bulldozer Parameters (Unit: mm) | |
| Maximum Clearance of Dozer Board | 220mm |
| Maximum Depth of Dozer Sinking | 310mm |
| Tank Capacity | |
| Tank Capacity | 14L |
| Hydraulic Oil Capacity | 18L |
.webp)
.webp)
.webp)
