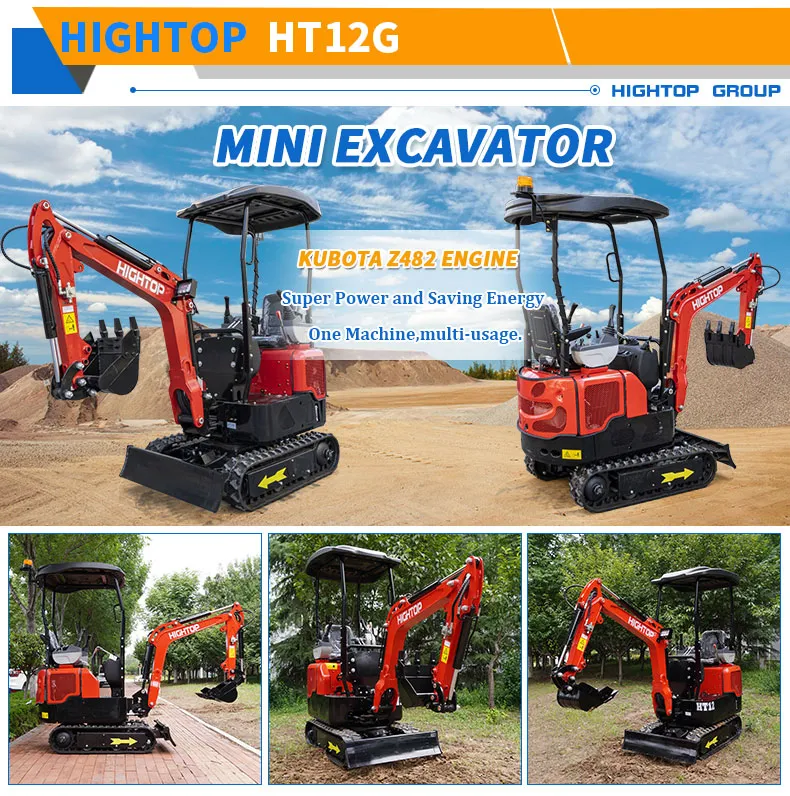

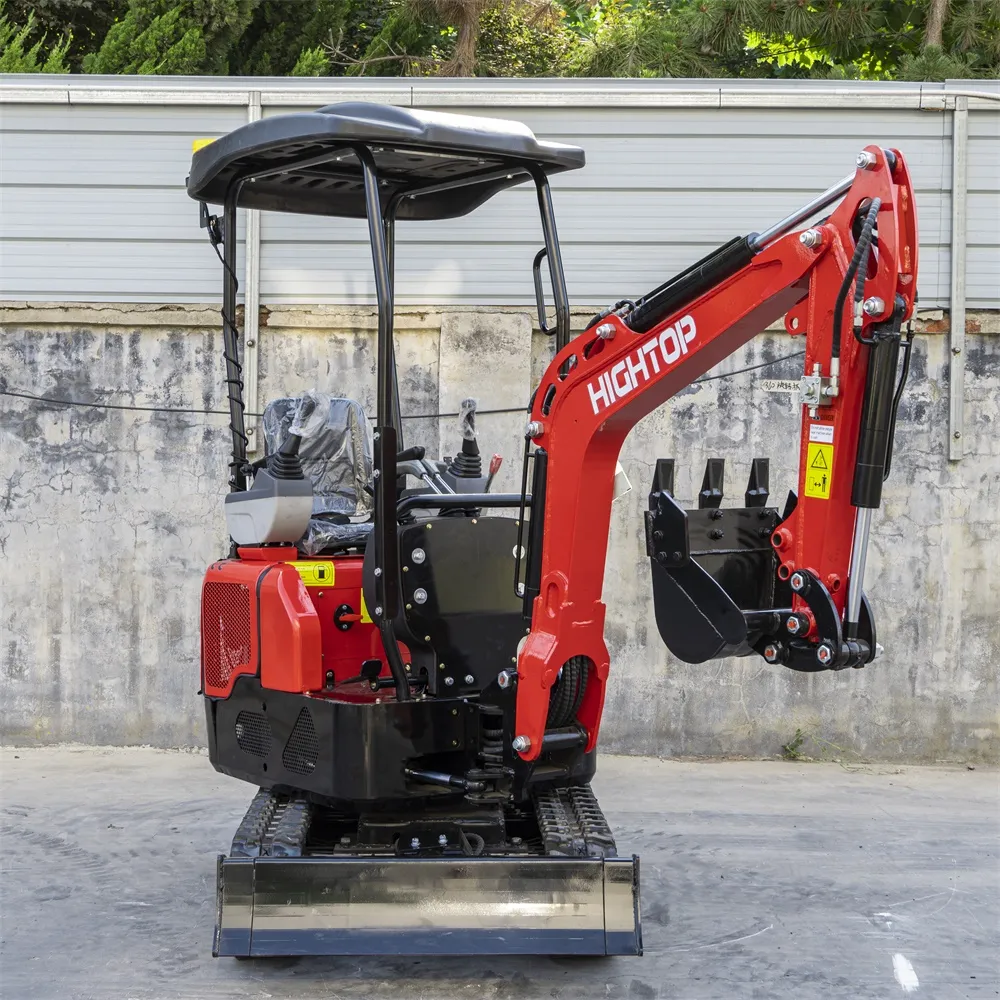

HT12G 1.2T Mini Excavator
The Hightop HT12G mini excavator is a 1.2-ton compact crawler excavator powered by a Kubota Z482 engine. With a total width of just 930mm and an 820mm tail swing radius, it excels in narrow spaces. Features include full hydraulic pilot control, a durable anti-rust treated chassis, and a 1850mm digging depth. CE certified — ideal for landscaping, indoor demolition, and tight job sites.
.webp)

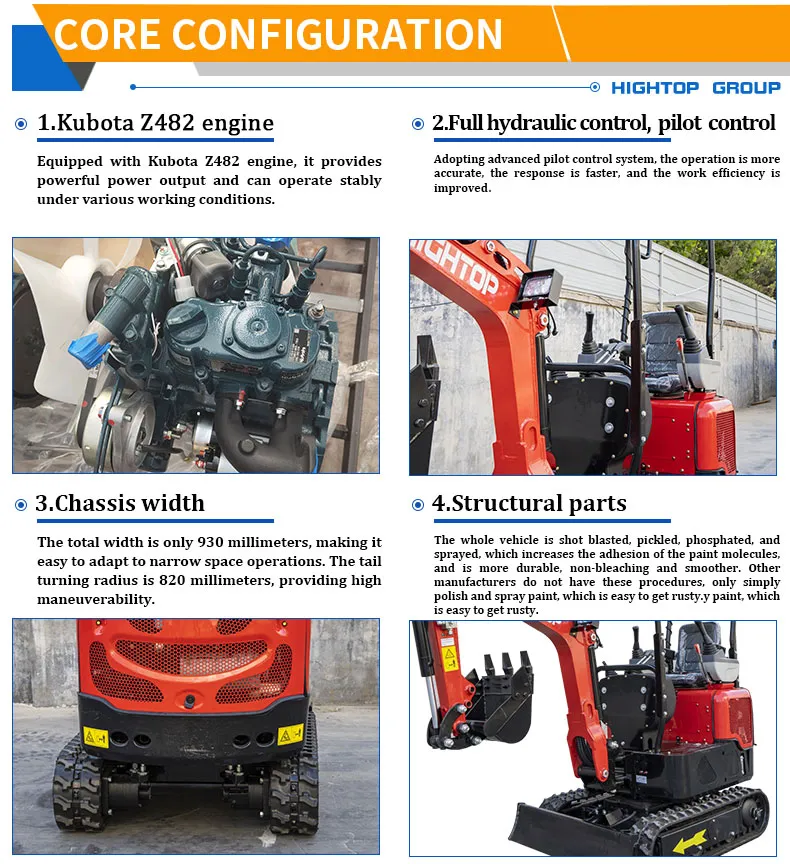

HT12G Mini Excavator Instruction
1.Kubota Z482 engine
Equipped with Kubota Z482 engine, it providespowerful power output and can operate stablyunder various working conditions.
2.Full hydraulic control, pilot control
o)
Adopting advanced pilot control system, the operation is moreaccurate,the response is faster,and the work efficiency isimproved.
3.Chassis width
The total width is only 930 millimeters, making iteasy to adapt to narrow space operations. The tailturning radius is 820 millimeters, providing highmaneuverability.
4.Structural parts
The whole vehicle is shot blasted, pickled, phosphated, andsprayed, which increases the adhesion of the paint moleculesand is more durable,non-bleaching and smoother. Othermanufacturers do not have these procedures,only simplypolish and spray paint, which is easy to get rusty.y paint, whichis easy to get rusty.

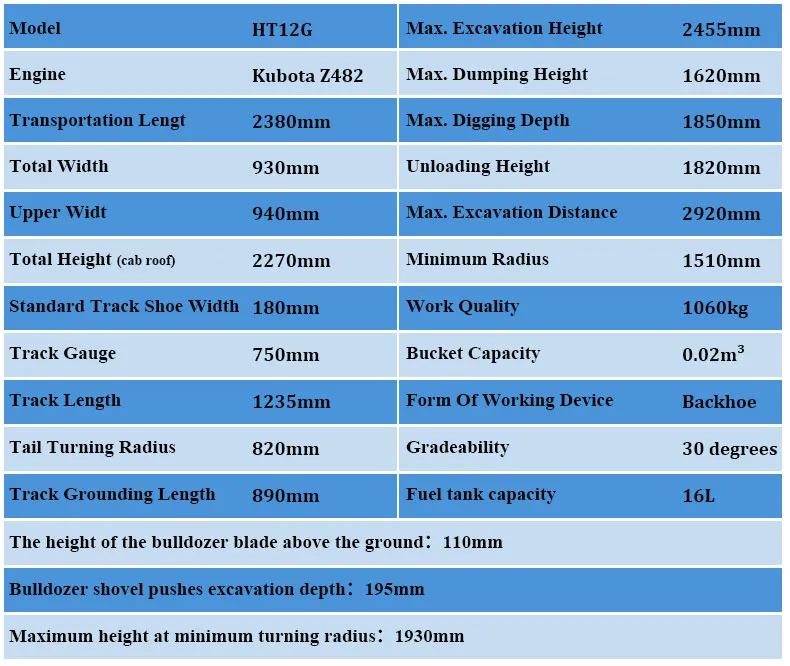

| HT12G Mini Excavator — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Model | HT12G |
| Transportation Length | 2380mm |
| Total Width | 930mm |
| Upper Width | 940mm |
| Total Height (Cab Roof) | 2270mm |
| Standard Track Shoe Width | 180mm |
| Track Gauge | 750mm |
| Height of Bulldozer Blade Above Ground | 110mm |
| Bulldozer Shovel Digging Depth | 195mm |
| Tail Turning Radius | 820mm |
| Track Grounding Length | 890mm |
| Track Length | 1235mm |
| Working Range (Unit: mm) | |
| Maximum Excavation Height | 2455mm |
| Maximum Dumping Height | 1620mm |
| Maximum Digging Depth | 1850mm |
| Maximum Excavation Distance | 2920mm |
| Minimum Radius | 1510mm |
| Maximum Height at Minimum Turning Radius | 1930mm |
| Performance Parameters | |
| Work Quality | 900kg |
| Bucket Capacity | 0.02m³ |
| Form of Working Device | Backhoe |
| Gradeability | 30° |
| Main Components | |
| Engine | Kubota Z482 |
