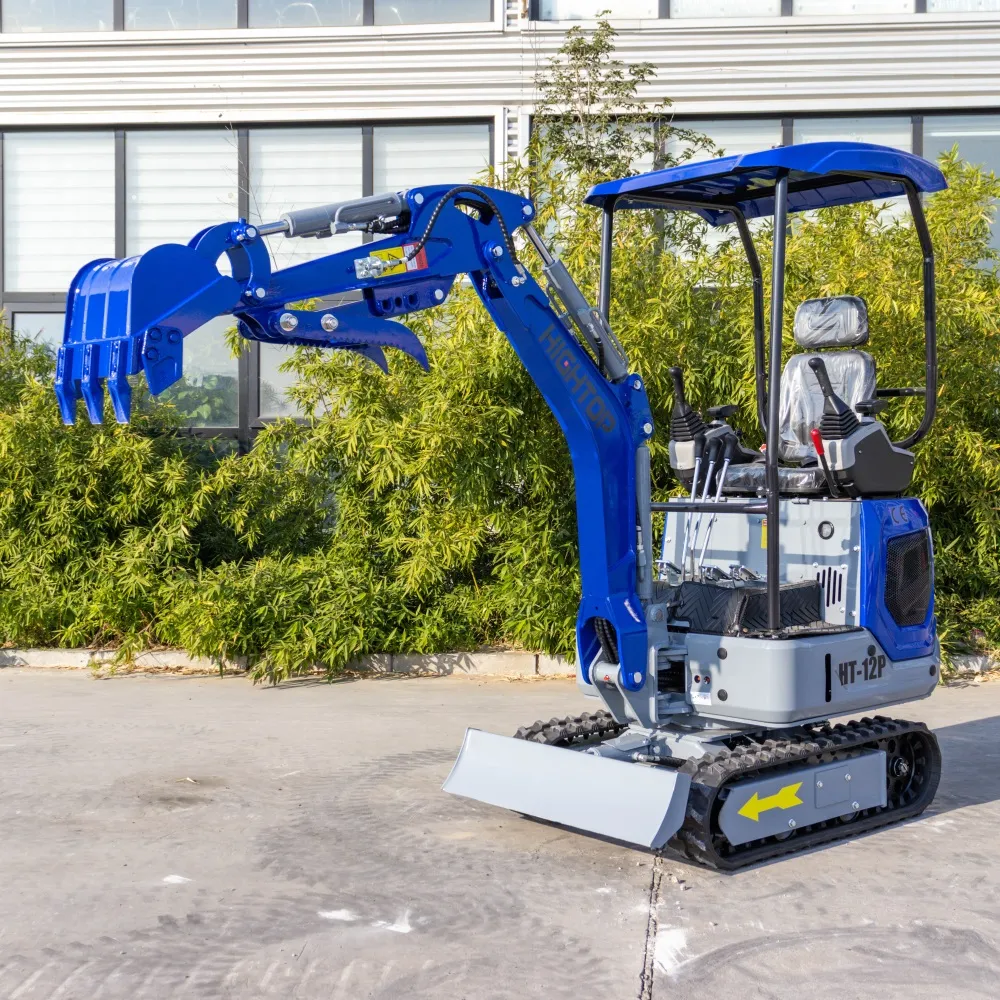

HT12P 1.2T Mini Excavator

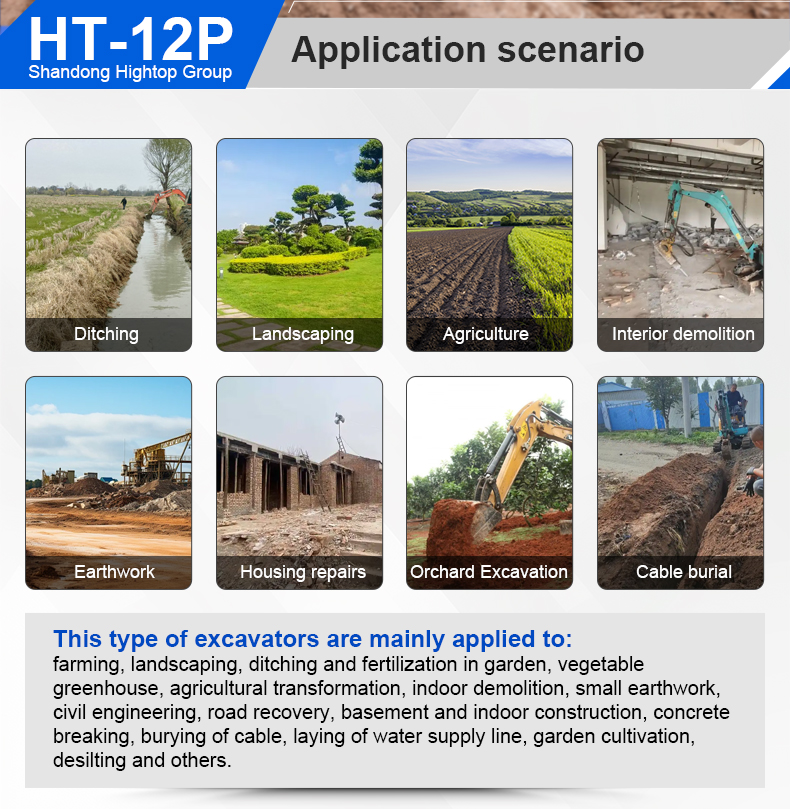

The Hightop HT12P 1.2T mini excavator is a compact crawler digger powered by a 7KW KOOP engine (Briggs & Stratton optional). It features hydraulic pilot operation for precision and reduced fatigue, a 1200kg operating weight, and 1700mm digging depth. Optional boom swing and retractable track available — ideal for landscaping, small construction, and narrow job sites.
.webp)
Hightop HT12P mini excavator is equipped with hydraulic pilot operation system, which improves operation precision, reduces operation fatigue, improves operation safety, improves operation efficiency, reduces maintenance cost, and adapts to a variety of operating environments.
1. Improvement of operation precision
The hydraulic pilot system of Hightop mini excavator can achieve more precise operation through hydraulic control. The operator can control the movement of the excavator by adjusting the hydraulic pressure to achieve more precise operation. This is important for applications that require high precision operation.
2. Reduced operator fatigue
The HT12P Compact Excavator's hydraulic pilot system is equipped with an auto-adjustment function that automatically adjusts the hydraulic pressure according to the operator's input. This reduces operator fatigue over long periods of time and improves work efficiency.
3. Improved Operational Safety
Hightop mini excavator hydraulic pilot operated system is usually equipped with multiple safety protection devices, which can automatically cut off the hydraulic supply in the event of a malfunction, thus avoiding danger. In addition, hydraulic pilot operated systems allow for smoother operation, which reduces the number of accidents caused by improper operation.
04-Full hydraulic Control, Pilot Control
05-Earth moving mechanism:
The support plate of the bulldozing mechanism is made of thickened plate to ensure the bulldozer is more reliable and lasts longer.
06-Advantages of rubber tracks:
1.Low noise
2.Low vibration
3.No damage to road surface
4.Light weight
| HT12P Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model: | HT12P |
| Engine: | KOOP 192F |
| Optional engine: | RATO, Briggs & Stratton |
| Engine power: | 7KW |
| Operating Weight | 1200kg |
| Bucket capacity: | 0.02m³ |
| Bucket width: | 400mm |
| Dimensions (Unit: mm) | |
| Track width: | 180mm |
| Track Length: | 1200mm |
| Transport length: | 2100mm |
| Overall height: | 2150mm |
| Ground clearance: | 380mm |
| Wheel Pitch | 580mm |

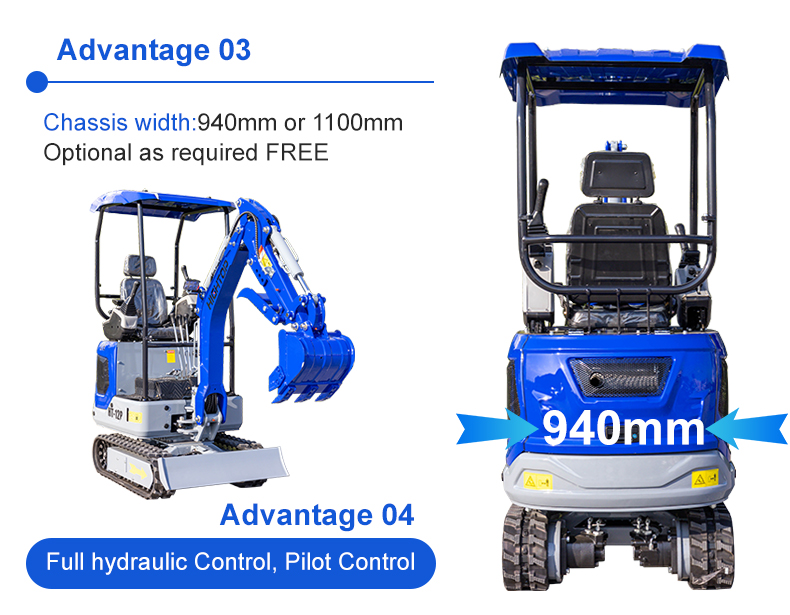

| Chassis width | 940mm or 1100mm |
| Machine size: | 2200*940*2150mm |
| Working Range (Unit: mm) | |
| Digging height: | 2500mm |
| Digging depth: | 1700mm |
| Unloading height: | 1820mm |
| Optional Functions | |
| Optional function: | Boom swing |
| Retractable track | |
| Cabin | |
| Pilot control | |
