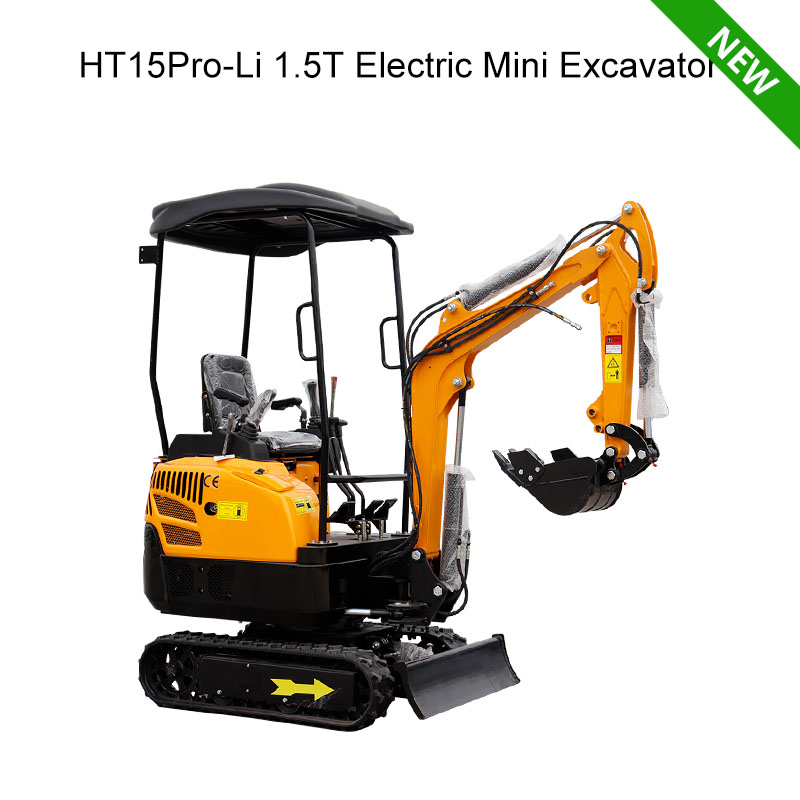

HT15Pro-Li 1.5T Electric Mini Excavator
HT15Pro-Li 1.5T Electric Mini Excavator for sale – a zero-emission 1500kg compact lithium digger with stamped molding exterior and hydraulic pilot operation. Ideal for indoor demolition, orchard work, and urban construction.
This 1.5 ton electric mini excavator features 10.2KW rated power, 0.02m³ bucket, and 30° climbing ability. Quiet, powerful, and ready for narrow job sites. Get factory price now.
description1
Technical Parameter
| HT15PRO-Li Electric Excavator — Parameter Table | |
|---|---|
| Model | HT15PRO-Li |
| Dimensions (Unit: mm) | |
| Transport Length | 2300mm |
| Total Width | 930mm |
| Upper Width | 990mm |
| Overall Height (Cab Roof) | 2270mm |
| Standard Track Plate Width | 180mm |
| Track Gauge | 750mm |
| Shovel Height | 110mm |
| Shovel Digging Depth | 200mm |
| Tail Turning Radius | 800mm |
| Track Ground Length | 890mm |
| Track Length | 1235mm |
| Working Range (Unit: mm) | |
| Maximum Digging Height | 2690mm |
| Maximum Unloading Height | 1825mm |
| Maximum Digging Depth | 1710mm |
| Maximum Digging Distance | 2920mm |
| Minimum Turning Radius | 1500mm |
| Maximum Height at Minimum Turning Radius | 2110mm |
| Performance Parameters | |
| Working Mass | 1000kg |
| Bucket Capacity | 0.02m³ |
| Form of Working Device | backhoe |
| Climbing Capacity | 30° |
| Main Components (Electric System) | |
| Power Source | Li Battery |
| Battery | 72V 150Ah |
| Motor Power | 6.5KW |
| Motor Model | Permanent Magnet Synchronous Motor |
Product Introduction
