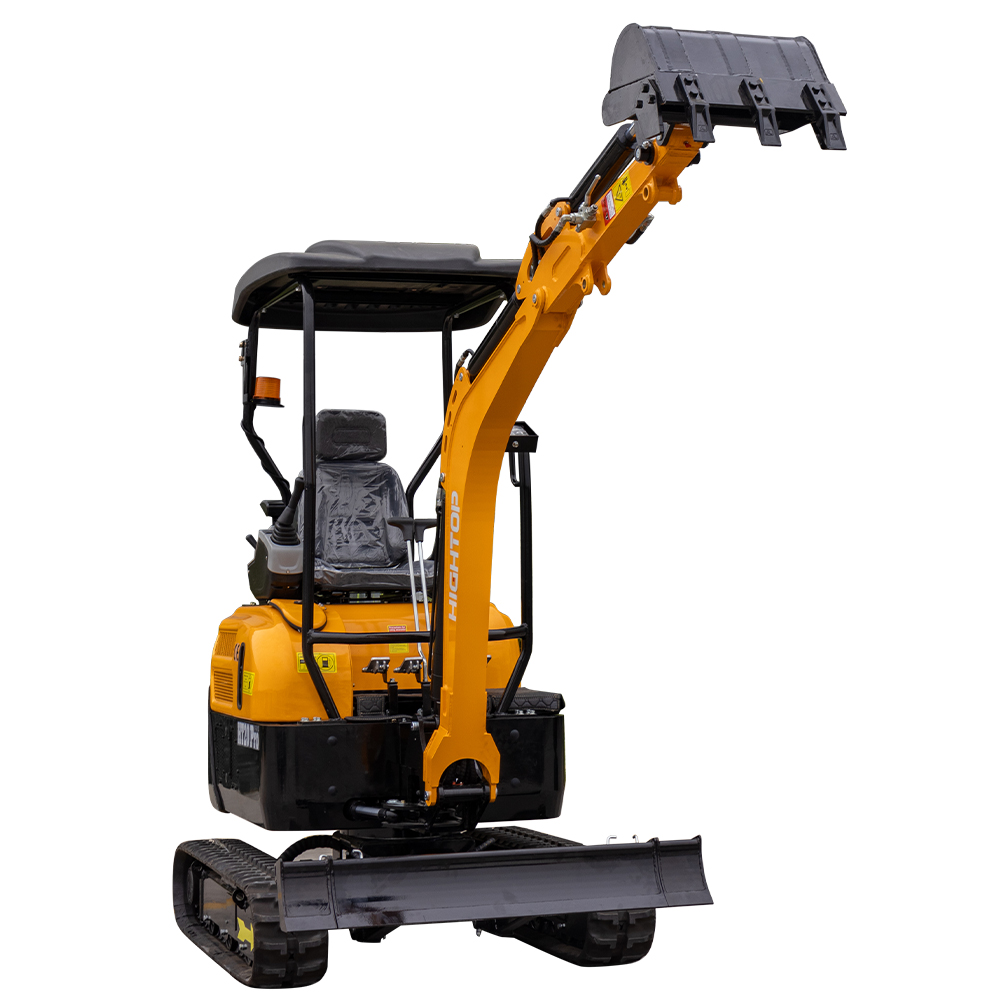

HT20Pro Mini Excavator
The Hightop HT20Pro mini excavator is a 1.5-ton compact crawler excavator powered by a Kubota or Laidong engine. It features an adjustable undercarriage (970-1270mm), 1995mm digging depth, and 45° left / 44° right boom swing. CE certified — ideal for narrow access, landscaping, and versatile job sites.
HT20Pro Mini Excavator Instruction
1.Concealed Plunger Motor
Stable performance, compact structure, small size, suitable for harshworking conditions and high load continuous work, can be a long timestable operation.
2.Side swing of the arm
Adijust the bucket or attachment left or right without moving the chas-sis,enhancing the flexibility of the multifunctional attachment.
45° to the right
44° to the left
3.Handle small travel 8-way valve
2 zinc-plated actuators + 4 cast aluminum foot pedals.
4. Handle globe valve
5.Famous Brand Engine
Powerful, stable and durable to meet various work requirements.
6.Enlargement of the inverted arm
Good ability to work on the edges.Large lateral digging range
7.High and low speed
Low speed: suitable for complex terrain and delicate maneuversHigh speed: Optimize the efficiency of long-distance movement.
| HT20Pro Mini Excavator — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Transportation Length | 2650mm |
| Total Width | 970~1270mm |
| Upper Width | 1055mm |
| Overall Height (Cab Roof) | 2350mm |
| Standard Track Plate Width | 200mm |
| Track Gauge | 770~1070mm |
| Shovel Height Above Ground | 290mm |
| Depth of Excavation of Bulldozer | 285mm |
| Tail Turning Radius | 980mm |
| Track Ground Length | 1200mm |
| Track Length | 1520mm |
| Working Range (Unit: mm) | |
| Maximum Digging Height | 2875mm |
| Maximum Unloading Height | 1930mm |
| Maximum Digging Depth | 1995mm |
| Maximum Digging Distance | 3130mm |
| Minimum Turning Radius | 1670mm |
| Maximum Height at Minimum Turning Radius | 2285mm |
| Performance Parameters | |
| Working Quality | 1470kg |
| Bucket Capacity | 0.025m³ |
| Working Device Form | backhoe |
| Climbing Capacity | 30° |
| Main Components | |
| Engine | kubota / Laidong |
| Main Valve | Tengfei |
HT20Pro Mini Excavator Images
