HT210 Large Excavator
The Hightop HT210 large excavator is a 21-ton crawler excavator built for heavy-duty excavation and loading. Powered by a Cummins engine and a high-efficiency hydraulic system, this large digging machine delivers reliable performance and strong digging forces. Designed with a heavy-duty boom and arm, reinforced bucket, and easy-maintenance features, the HT210 excavator is ideal for site development, foundation work, road construction, and mass excavation projects.
HT210 Large Excavator Instruction
SUPERIOR USE
Heavy Duty Boom and Arm
New Variable Power Control
6BTAA-5.9 (HM5.9)
Reinforced Bucket and Link Bucket Powerful
and Preciser Swing Control
Strong and Stable Bottom Frame
Single Layer Cooling System
Minimize Shock and Vibration Through Mounting cab system
COMFORTABLE OPERATION
· New Front Side Air Conditioning System
· Smooth Travel Pedal and Footrest
· Improved Smart Display
· Lightweight Control Panels
· Wide Cab with Excellent Visibility
· Highly Sensitive Joystick and Easy Entry
· Wide, Comfortable Operating Space
MAINTENANCE AND EASY MAINTENANCE
· Easy to maintain engine components
· Centralized electrical control unit and easy to change air cleaner assembly
· Side cover with left and right swing open type
· Large tool box for extra storage
· High efficiency hydraulic pump
· Hi-MATE (remote system management)
| HT210 Large Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT210 |
| Total Weight | 21t |
| Bucket Capacity | 0.9-1.2m³ |
| Engine Model | Cummins 6BTAA5.9 |
| Rated Power | 133kw/2000r/min |
| Fuel Tank Volume | 350L |
| Hydraulic Tank Volume | 246L |
| Hydraulic Pump Model | K3V112DT |
| Max. Flow Rate | 223*2L/min |
| Work Pressure | 34.3/37.3mpa |
| Travel & Performance | |
| Walking Speed | 5.2/3.5km/h |
| Swing Speed | 11.7r/min |
| Climbing Ability | 35° |
| Bucket Digging Force | 138kn |
| Arm Digging Force | 99kn |
| Ground Pressure | 44kpa |
| Traction | 174kn |
| Overall Dimensions (Unit: mm) | |
| Total Length | 9390mm |
| Overall Width | 2780mm |
| Total Height (Boom Top) | 3040mm |
| Overall Height (Top of Cab) | 3114mm |
| Counterweight Ground Clearance | 1065mm |
| Minimum Ground Clearance | 468mm |
| Turntable Width | 2700mm |
| Distance from Center of Rotation to Rear End | 2720mm |
| Counterweight Height | 2045mm |
| Tail Turning Radius | 2720mm |
| Undercarriage & Track (Unit: mm) | |
| Track Grounding Length | 3445mm |
| Track Length | 4250mm |
| Rail Gauge | 2180mm |
| Track Width | 2780mm |
| Track Shoe Width | 600mm |
| Track Tooth Thickness | 26mm |
| Grounding Length During Transportation | 4940mm |
| Working Equipment (Unit: mm) | |
| Arm Length | 2900mm |
| Boom Length | 5700mm |
| Working Range (Unit: mm) | |
| Maximum Excavation Height | 8630mm |
| Maximum Unloading Height | 6180mm |
| Maximum Digging Depth | 5501mm |
| Maximum Vertical Digging Depth | 4940mm |
| Maximum Digging Depth (2.5m Level) | 5287mm |
| Maximum Digging Distance | 8305mm |
| Maximum Excavation Distance on Ground | 8180mm |
| Minimum Turning Radius | 2495mm |
| Maximum Height at Minimum Turning Radius | 6430mm |

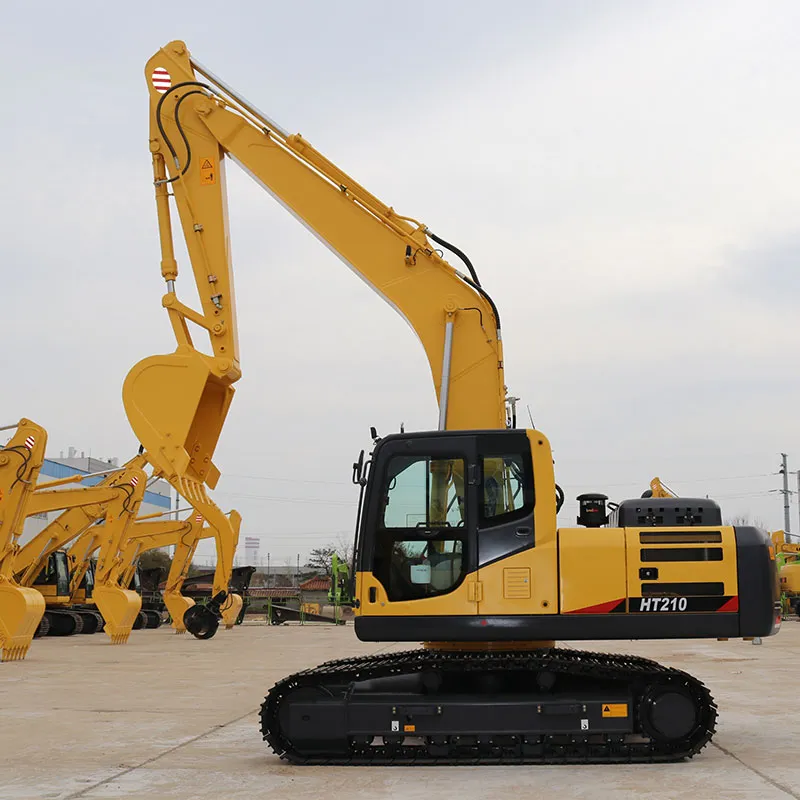

HT210 Large Excavator Images
