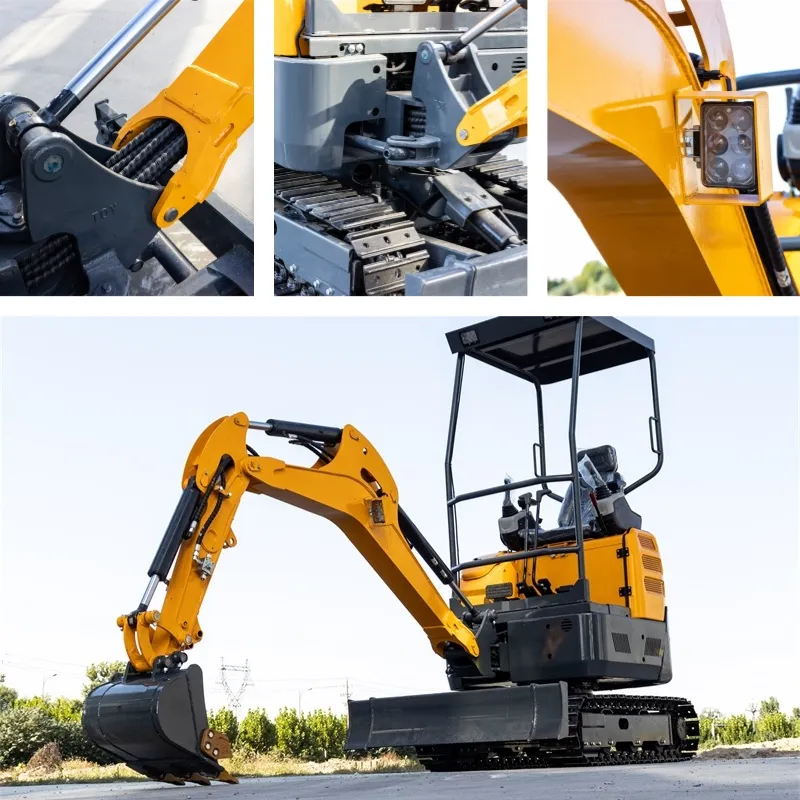

HT22-1 Mini Excavator

2.2T Mini Excavator High fuel efficiency,super power Saving energy and protecting environment.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

2.2T Mini Excavator High fuel efficiency,super power Saving energy and protecting environment.

HT22 Mini Excavator  Features:

  1. The big arm adopts inverted structure device, and the connected side pendulum head is chosen casting one-piece moulding, which is better looking and stronger than the welded one.
  2. Full hydraulic pilot operation: both sides of the pilot handle, bulldozing shovel, walking operation, crushing hammer and side pendulum function, when working, after the engine start, first of all to pull down the safety locks before the whole vehicle will have action, which can also effectively protect the driver an effective safety protection function.
  3. Steel track high and low speed: the life of the steel track is longer than the rubber track, and can also be interchanged with the rubber track, the motor selects the high and low speed plunger motor, the motor hidden structure.

HT22 mini Excavator Applications:

Multi-function: In addition to digging, loading and unloading materials, small excavators can also be used for operations under special conditions, such as changing other work tools: install augers for drilling and install grippers for wood grabbing, Installation is used to loosen the ground, install breakers, augers, grippers, rakes, rippers, narrow buckets, grab buckets, flat buckets, trailers, etc., to adapt to other accessories for different construction occasions.

2.2 ton mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and  digging trench. It is with small engine, simple design and easy to maintain.

Parameters
overall size
Total length/transport length(A) 4750mm
total width(B) 990mm/1300mm
Top Width(D) 1050mm
Total heighC 2470mm
Track width(F) 230mm
Track Gauge(G) 780mm/1090mm
Min.ground clearance(H) 150mm
Tail turning radius(I) 780mm
Track ground length(J) 1200mm
Track length(K) 1500mm
performance parameter
operating weight 2172kg
 bucket capacity  0.056m³
Rated power 14.2KW/2200rpm
rated speed 9.5r/min
Gradeability 58%
Working range
Max. digging height (a) 3500mm
Max.unloading height(b) 2560mm
Max Digging depth(c) 2370mm
Max. digging distance(d) 3030mm
Min.turning radius(e) 1750mm
Max. height at minimum turning radius(f) 2600mm
Engine  KUBOTA D1105
3cylinder direct injection
Rated power  14.2KW/2200rpm
Main valve TRM10-BX-09-JNJT-01
Main valve Pressure  20.5MP
Main pump TFA10VO28/53R
Displacement 28ml/r
traveling motor KTD-490
traveling speed  2.2/4.3km/h
Traction  18KN
Fuel tank Capacity 21L
Cooling systerm Capacity 5.05L
hydraulic oil tank Capacity 21.4L
