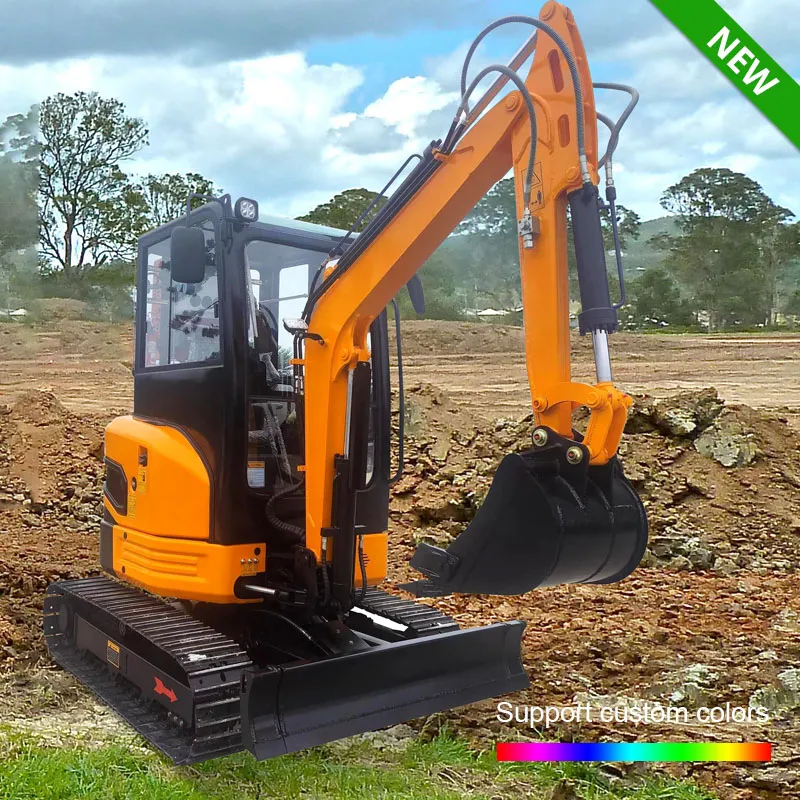

HT26-2 Mini Excavator With Cab
Overall weight |
2416KG |
Bucket capacity |
0.075m3 |
Engine Model |
Changchai390 |
Engine power |
20KW/2200rpm |
Overall length |
3074mm |
Overall width |
1500mn |
Overall height |
2313mm |
Hydraulic system pressure |
18Mpa |
Number of single side supporting wheel |
3 pieces |
Ground to upper disc distance |
534 mm |
Front and rear wheelbase |
1560 mm |
Left and right track distance |
1200 mm |
Dynamic arm deflection |
45° (left) |
Admiral's arm deflection |
55° (right) |
Tail swing radius |
936 mm |
Minimum ground clearance |
230 mm |
Maximum bucket digging force |
19,5KN |
Number of sprockets on one side |
1-piece |
