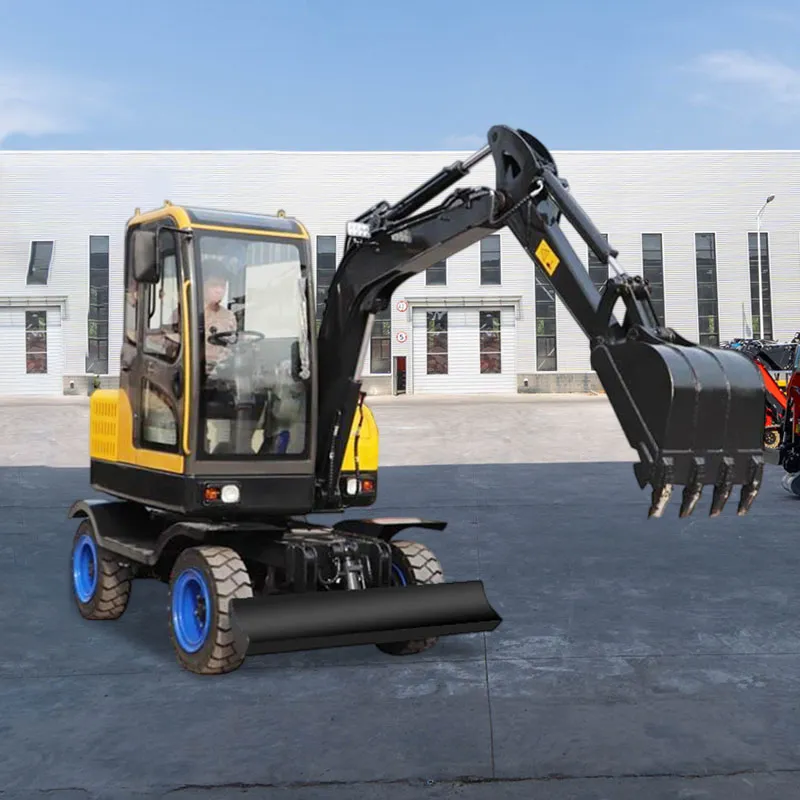

HT45 4.5T Mini Excavator
HT45 4.5T Small Excavator Features
*High fuel efficiency,Super power
*Lower fuel Consumption,High configuration, Superior performance
*Saving energy and protecting environment
HT45 4.5T Small Excavator Parameter
|
0verall Length(ern lovered) |
4400mm |
|
0verall Height |
2200mm |
|
Vidth |
1530/1600mm |
|
Track witdth |
300mm |
|
Total track length |
2175mm |
|
Track gauge |
1703mm |
|
Platform ground clearance |
557mm |
|
Working Range |
|
|
Max. Digging Height |
4450mm |
|
Max. Dumping Height |
3050mm |
|
Max. Digging Depth |
2545mm |
|
Max. Digging Distanc |
4630mm |
|
Max. Digging Radius |
4730mm |
|
Min. Radius of gyration |
1820mm |
|
Max. Lifting height of earth shovel |
359mm |
|
Max. Digging depth of dozer |
268mm |
|
Min. Tail sving radius |
1170mm |
|
ENGINE |
|
|
Engine model
|
ZN490
|
|
Power
|
34 KW
|
|
Cooling method |
water -cooling Diesel engine |
|
HYDRAULIC SYSTEM |
|
|
Operating Pressure |
22mpa |
|
Walking motor |
Two speed plunger |
|
Rotary motor |
Variable plunger |
|
The Main Pump |
32cc plunger 32cc |
|
Flow |
99/min |
|
PERFORMANCE PARAMETER |
|
|
Climbing ability |
35° |
|
Max. digging force |
55. 6KN (5560) |
|
Travel speed |
2.4/4.6km/h
|
|
Rail contact pressure on the ground |
34.8kpa (0. 355kgf/cn2 ) |
|
Specification |
|
|
Bucket Capacity |
0. 26m3 |
|
Fuel reservoir |
60L |
|
Hydraulic tank capacity |
75L |
|
Operating Weight |
4500kg |
