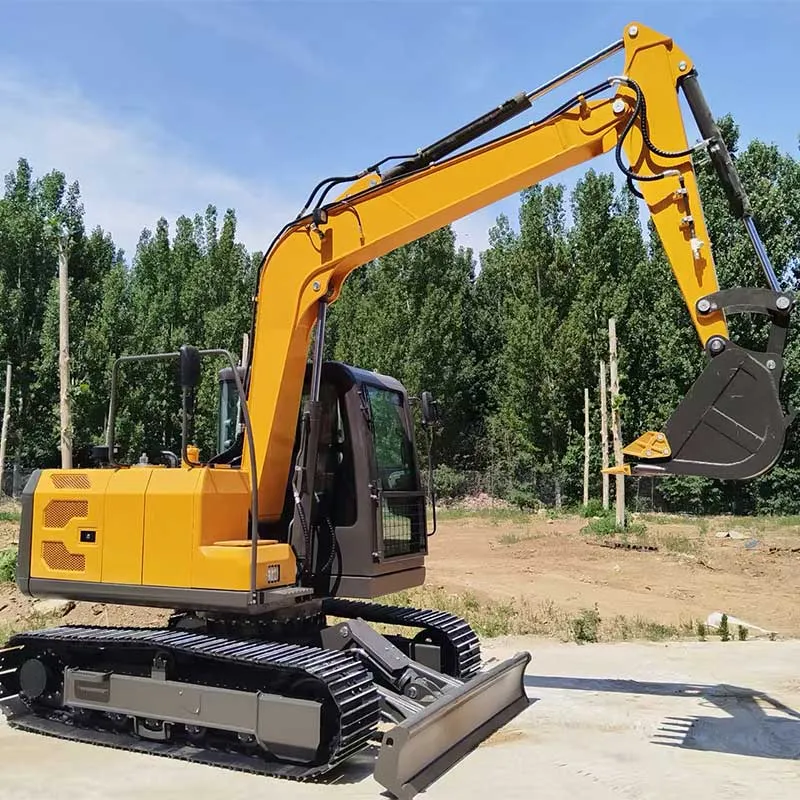

HT75 7.5T Crawler Excavator
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
7.5ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
|
Standard Bucket capacity |
0.28m³ |
|
Swing speed |
11rpm |
|
Maximum Grade ability |
35° |
|
Maximum Bucket digging force |
56KN |
|
Maximum Arm digging force |
38KN |
|
Hydraulic system pressure |
27Mpa |
|
Machine weight |
7500kg |
|
Fuel tank |
120L |
|
Hydraulic oil tank |
100L |
|
Engine |
|
|
Emission Standard |
Tier 3/ Stage III |
|
Make /Model |
KUBOTA/V2607 |
|
Power /Rotation speed |
42.4kw(58HP)@2000rpm |
|
Number of cylinder |
4 |
|
|
|
|
Track System |
|
|
Track System |
2.4/4.3 km/h |
|
Track System |
450mm |
|
Track System |
39pcs |
|
Track System |
1 |
|
Track System |
5 |
|
Machine Size |
|
|
Overall dimension (L*W*H) |
6054mm*2216mm*2672mm |
|
Height of cabin |
2672mm |
|
Track length on ground(Axle base) |
2209mm |
|
Track gauge |
1745mm |
|
Minimum Ground clearance |
375mm |
|
Swing radius at tail |
1730mm |
|
Working Range |
|
|
Maximum Digging height |
7023mm |
|
Maximum Dumping height |
5195mm |
|
Maximum Digging depth |
3898mm |
|
Maximum Vertical digging depth |
2968mm |
|
Maximum Digging radius |
6128mm |
|
Minimum swing radius |
1740mm |
|
Maximum Lifting height of blade |
382mm |
|
Maximum Cutting depth of blade |
332mm |
