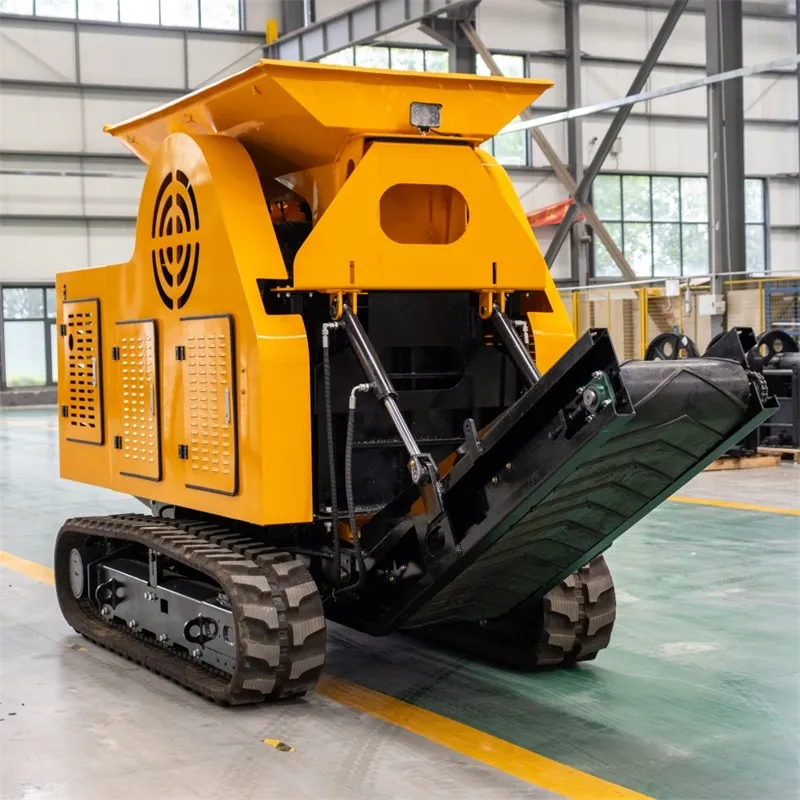

HTJC-510 Crawler Jaw Crusher
The Hightop HTJC-510 jaw crawler crusher is used in the first process of crushing various ores and can crush all kinds of ores with a compressive strength not exceeding 240mpa to medium particle size in one go.
Application scope: Sand and gravel yards, mining, coal mining, concrete mixing plants, desulfurization in power plants, etc.

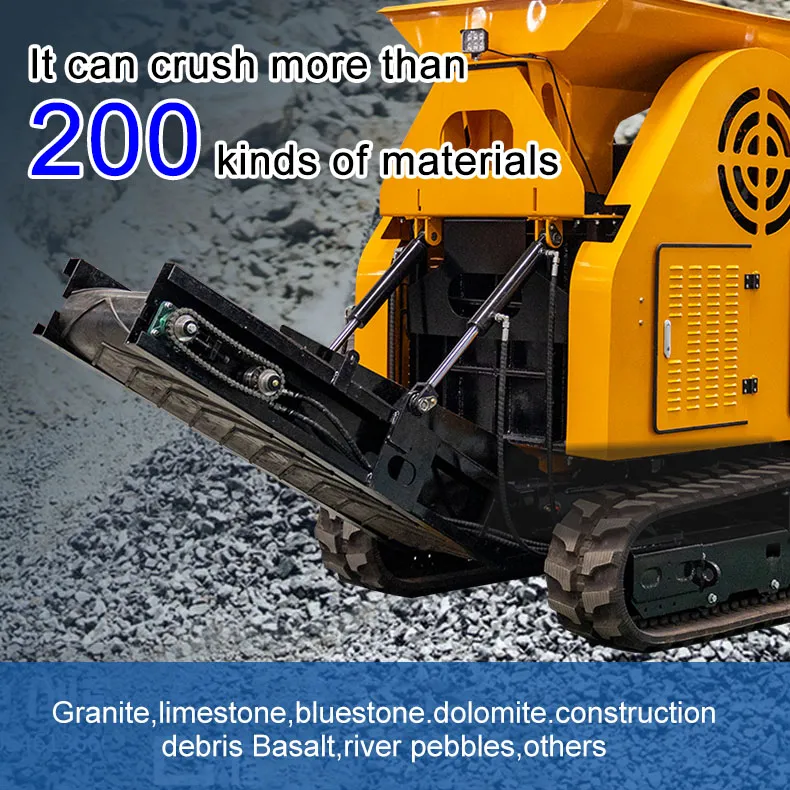

Crushed materials: bluestone, yellow stone, iron ore, limestone, construction waste, etc.
.webp)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Instruction
HTJC-510 Crawler Jaw Crusher

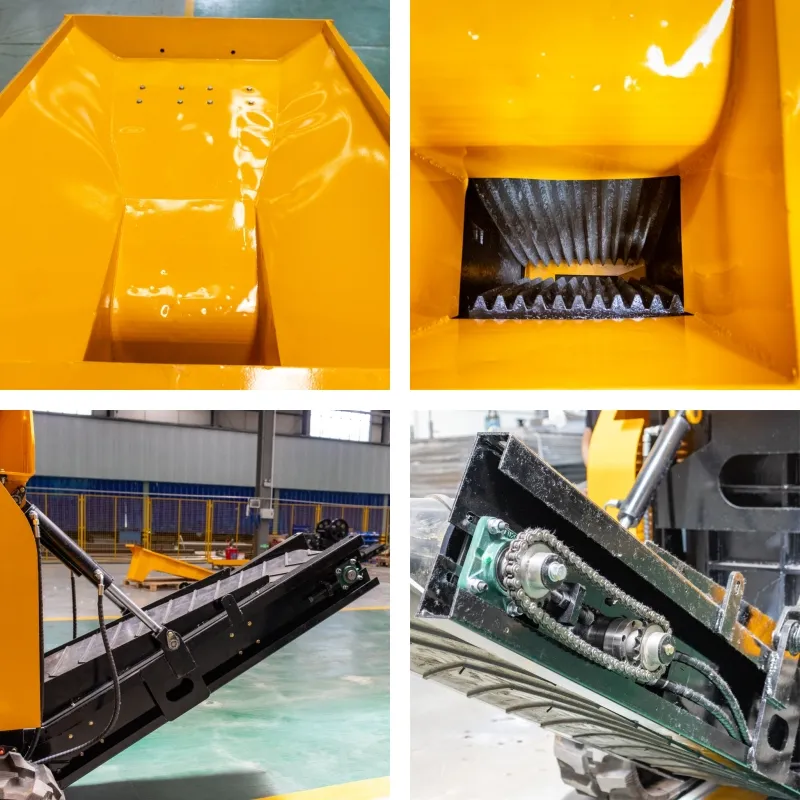

LARGE-CAPACITY & HIGH-THROUGHPUT DESIGN
Boasting a 0.4m³ storage bin, 250400mm inlet size, and 230380mm maximum feed size, it delivers a production capacity of 5-10T/h—ideal for continuous high-volume processing. The gravel range (φ20-60mm) ensures uniform medium-grain output.
.webp)

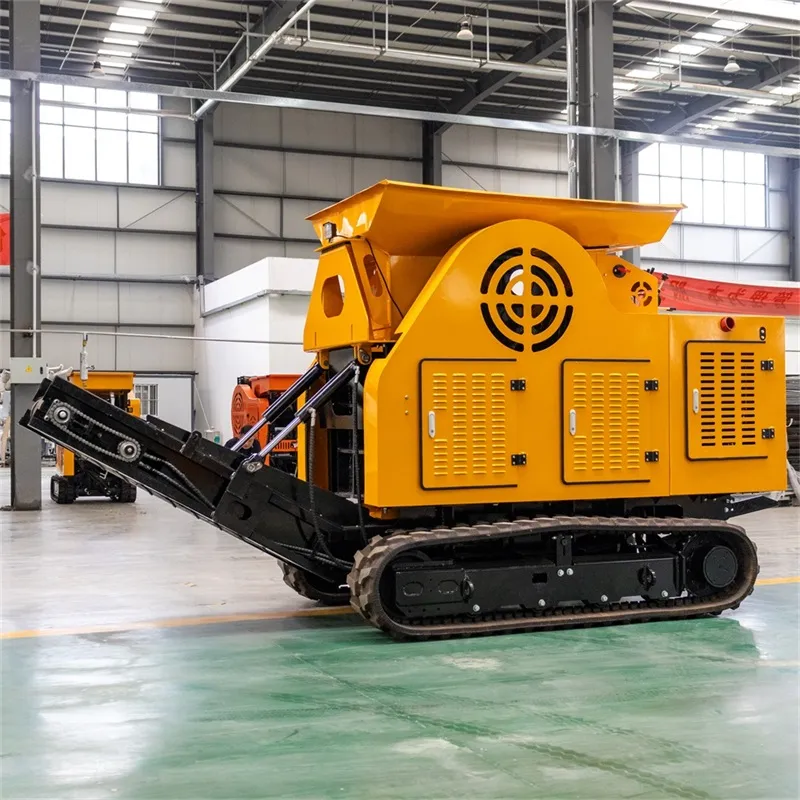

HIGH-EFFICIENCY PRIMARY CRUSHING SOLUTION

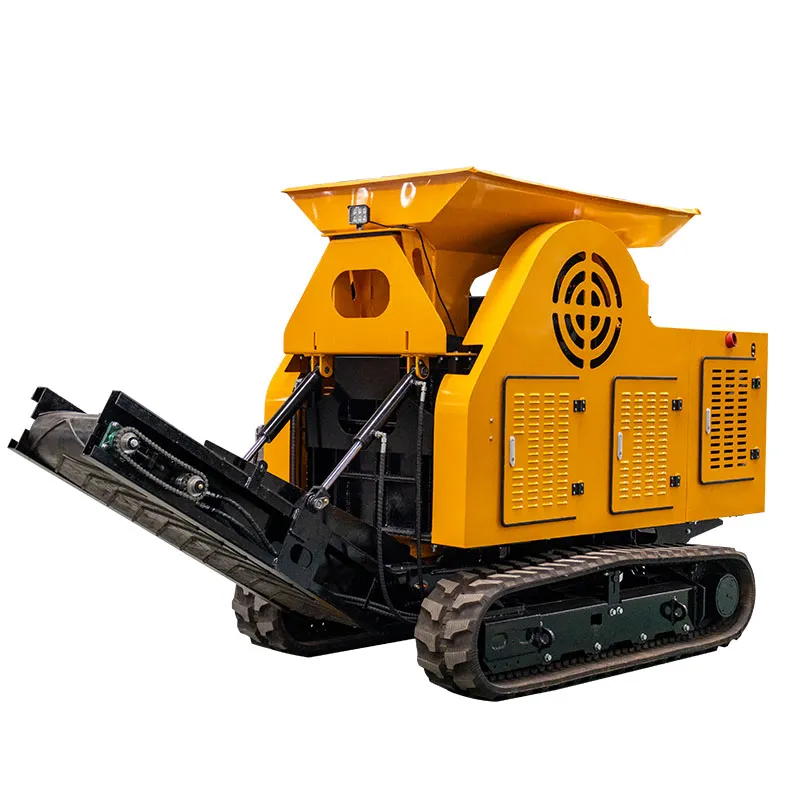

The HTJC-510 Crawler Jaw Crusher is a robust, mobile primary crushing equipment engineered to handle the first stage of ore processing. It can crush various ores (with compressive strength up to 240MPa) into medium-sized particles in one pass, combining powerful performance with flexible mobility.
SUITABLE FOR A VARIETY OF INDUSTRIES
Hightop Crawler mobile crusher can be applied to sand and concrete processing in many fields such as quarry, coal mine, municipal engineering, airport, railway and so on. Reduce the cross section or pieces of concrete, brick or stone by crushing. Different output particle sizes can be achieved by changing the number of washers and the thickness of the washers.

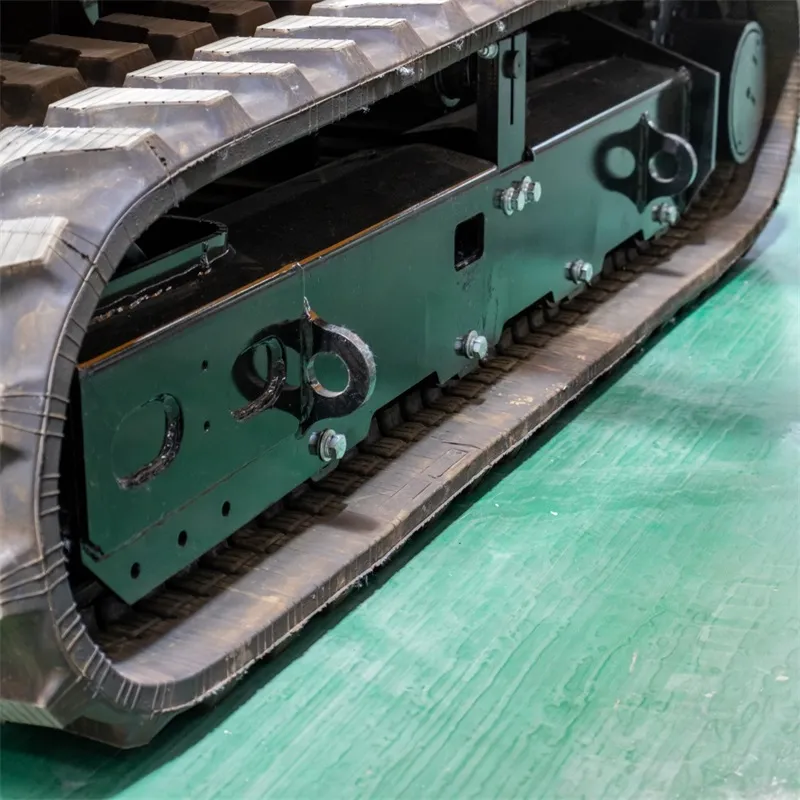

FLEXIBLE MOBILITY & STABLE OPERATION

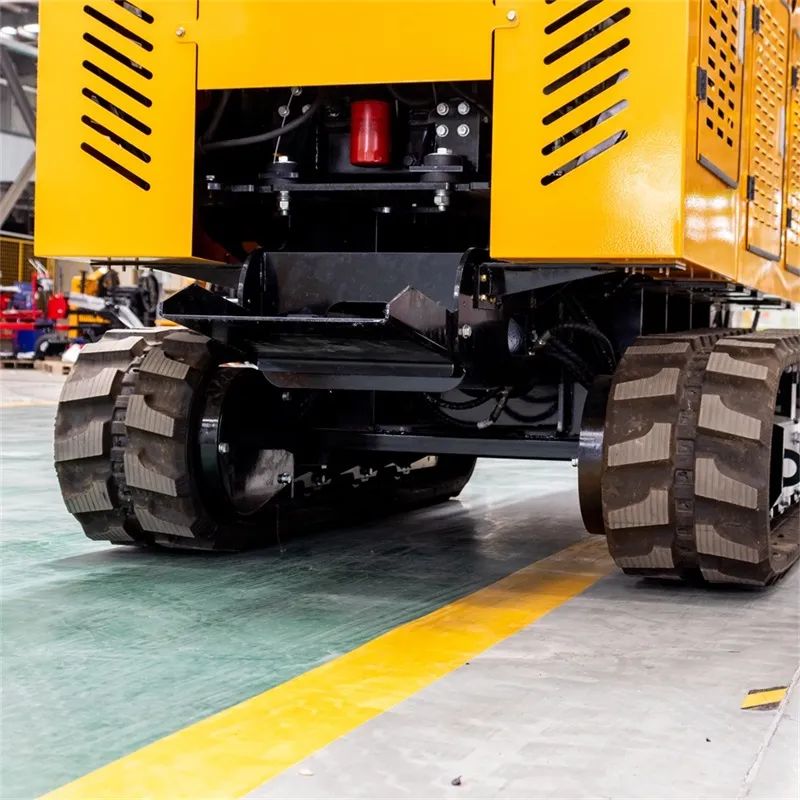

Equipped with 3008652.5mm rubber tracks (hydraulic power track-type walking) and a 0-4km/h walking speed, it adapts to diverse terrains (e.g., uneven job sites) while maintaining stability. The 405014502050mm working size (275014502050mm transport size) balances operational space and transport convenience.
.webp)

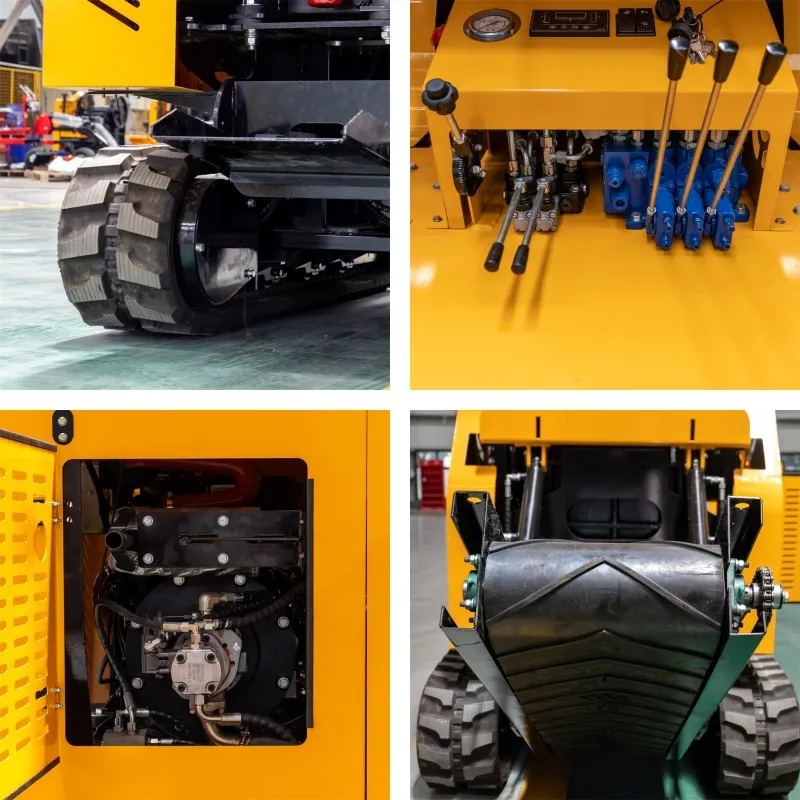

RELIABLE POWER & DURABLE COMPONENTS

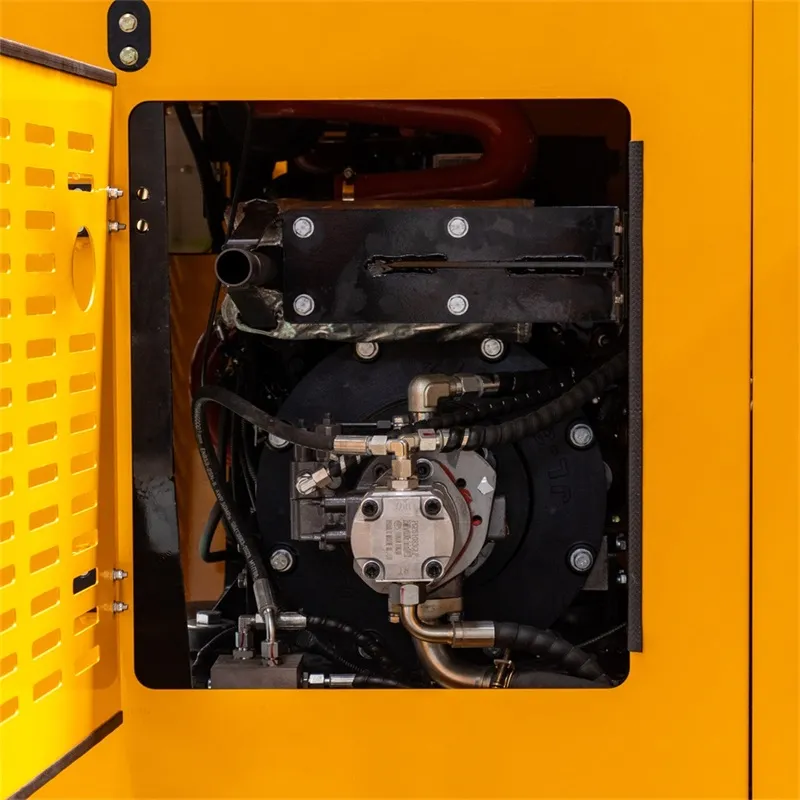

HTJC-510 Crawler Jaw Crusher Powered by a Laidong 385 (Euro V) diesel engine (19KW max output power), it features a 50L fuel tank and 50L hydraulic oil tank (32#/46# oil) for long continuous operation. Key components (e.g., jaw fracture mechanism with grease lubrication) ensure durability and low maintenance.
.webp)
HIGH YIELD, GOOD GRAIN SHAPE
Compact structure, less wearing parts, high production efficiency. Advanced technology, strong structure, impact resistance. Large feeding size, high yield, good grain shape. High strength crushing, coarse, fine crushing in one step. Needle flake (powder) less than 20%, more energy saving. Thickened material, impact resistance, strong wear resistance.
Parameter
| HTJC510 Crawler Jaw Crusher | |
| Model | HTJC525 |
| Working size (mm): | 4050*1450*2050 |
| Inner width of vertical board (mm) | 400 |
| Transport size (mm): | 2750*1450*2050 |
| Total outer width of the protective cover (mm): | 1250 |
| Track model (mm): | 300*86*52.5 |
| Inlet size (mm): | 250*400 |
| Maximum feed size (mm): | 230*380 |
| Storage bin volume (m3): | 0.4 |
| Stacking height (mm): | 950-1000 |
| Gravel range (mm): | φ20-60 |
| Walking speed (km/h): | 0-4 |
| Track specifications: | rubber track |
| Production capacity (T/h tons/hour): | 5-10T/h |
| Belt width (mm): | 400 |
| Operation form and main accessory parameters | |
| Equipment operation mode: | Manual hydraulic valve |
| Walking method: | Hydraulic power track type |
| Model of walking motor: | Piston motor FTM03C |
| Hydraulic pump specifications: | Piston pump A10VSO28 |
| E Po Power Drive Method: | Hydraulic plunger motor |
| Drive mode of conveying mechanism: | Hydraulic Cycloid Motor |
| Conveyor lifting method: | Hydraulic cylinder |
| Lubrication method for jaw fracture mechanism: | grease |
| Adjustment method for track tension: | Lubricating grease tightening |
| Power system | |
| Diesel engine standard configuration: | Laidong 385（Euro V） |
| Output power max | 19KW/2350 |
| Oil type and dosage | |
| Fuel tank capacity/L | 50L |
| Oil volume/L | 4L |
| Hydraulic oil tank capacity/L | 50L 32#/46# Hydraulic oil |
