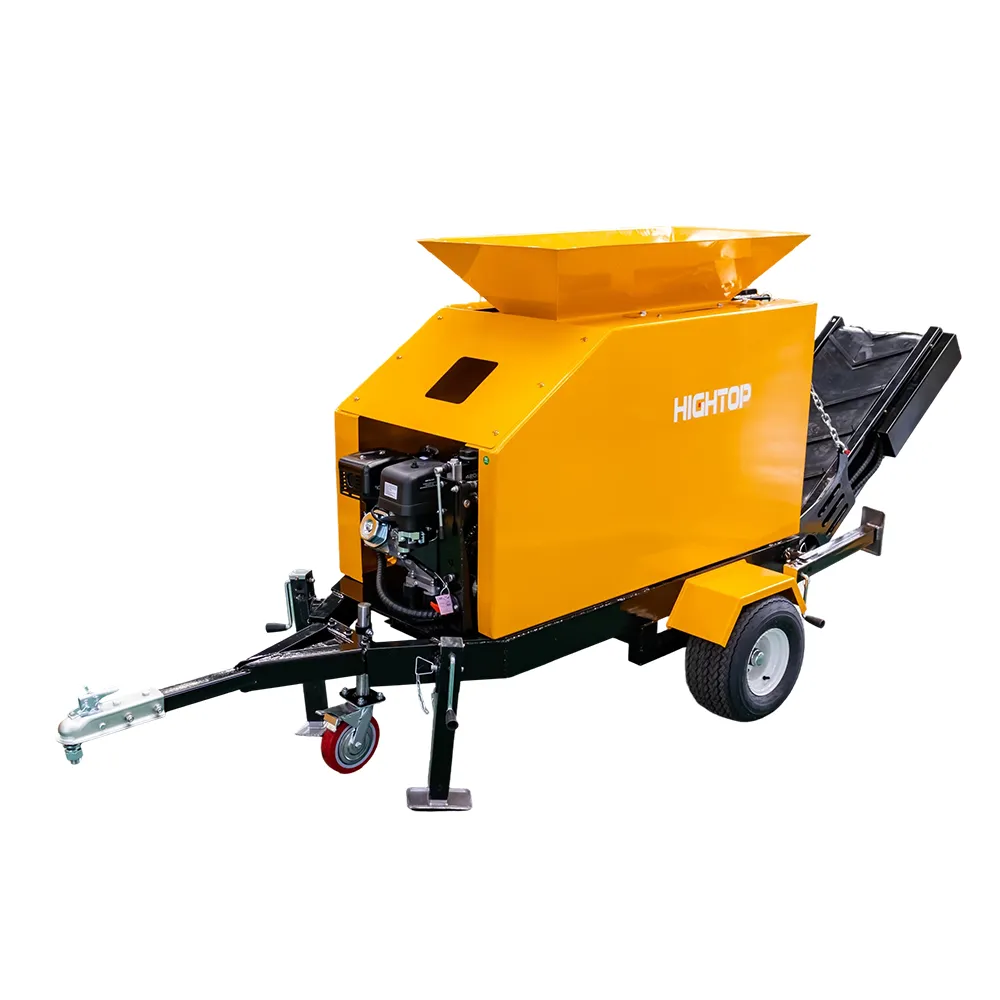

HTJC135 Mobile Trailer Crusher
HTJC135 Trailer-Mounted Jaw Crusher adopts classic jaw crushing principle.realizing primary and secondary crushing of various hardness materials throughthe extrusion and bending action of fixed and movable jaw plates.
HTJC135 Mobile Trailer Crusher Instruction
HTJC135 Mobile Trailer Crusher Parameter
| Power model | Ducar Engine |
| Type of power | Horizontal bar, EPA, four-stroke, air-cooled |
| Total displacement (ML) | 420CC |
| Rated power (KW/RPM) | 13.5 HP/3600 RPM |
| Types of fuel | 92 # |
| Fuel tank | 6L |
| Equipment operation model | Manual hydraulic valve |
| Walking style | Trailer drive |
| Feed inlet size | 150mm x250mm |
| Crushed stone range | Diameter:5mm-25mm |
| Production capacity (T/h tons/hour) | 2 to 4 tons |
| Conveyor belt width | 400mm |
| Working dimensions | 3330mm*1250mm*1600mm |
| Transportation dimensions | 2000mm*1250mm*1600mm |
| Stacking height | 700mm-1000mm |
| Overall machine weight | 988kg |
HTJC135 Trailer-Mounted Jaw Crusher adopts classic jaw crushing principle.realizing primary and secondary crushing of various hardness materials throughthe extrusion and bending action of fixed and movable jaw plates.
Integratingpower and flexibility, the equipment is equipped with a Dajiang EPA-certifiedengine and a tire-mounted trailer structure, which can be quickly transferred byfront vehicle traction. lt is widely used in mineral processing, building decorationmaterial processing, ceramic raw material treatment and other industrial scenari-os, making it an ideal choice for small and medium-sized crushing operations.
The HT-135 stone crusher is a crushing machinery that uses the squeezing and bending effects of two jaw plates on materials to roughly or moderately crush various hardness materials. The crushing mechanism consists of a fixed jaw plate and a movable jaw plate. When the two jaw plates approach, the material is crushed. When the two jaw plates leave, the material blocks smaller than the discharge port are discharged from the bottom. Its breaking action is intermittent. This type of crusher is widely used in industries such as mineral processing, building decoration materials, and ceramics due to its simple structure, reliable operation, and ability to crush hard materials.
The tire trailer structure selected for the Hightop HTJC-135 trailer crusher mainly relies on the connection device between the trailer hook at the rear of the front vehicle and the crusher, which is fixed and driven by the walking power of the front vehicle to facilitate the transition operation of the crusher.
01 Power System Equipped with a high-quality Dajiangengine, 420CC large displacement delivers13.5HP strong power. The 4-strokeair-cooled design ensures stability duringlong-time operation, and EPA certificationmeets environmental standards, suitable foruse in most regions around the world.
02 Mobility Design Tire-mounted trailer structure with tractionframe and hook can be directly connectedand fixed with the trailer hook at the rear ofthe front vehicle, achieving flexible transferrelying on the front vehicle's power. Thecompact transport dimension of2000x1250x1600mm reduces transfer diffi-culty, suitable for construction sites, minesand other multi-scene operations.
03 Crushing Performance 150x250mm large feed inlet can handle var-ious hard materials with diameter 5-25mm.The jaw crushing structure has a largecrushing ratio and uniform product particlesize.400mm wide conveyor belt with700-1000mm adjustable stacking height im-proves material conveying and stacking effi-ciency.
04 Durability Guarantee 988KG solid body design enhances operational stability. Core wearing parts are madeof high-quality materials, including Type Bbelt, jaw plate, conveyor belt, square bearing seat and engine shock pad, extendingequipment service life and reducing mainte.nance costs.
