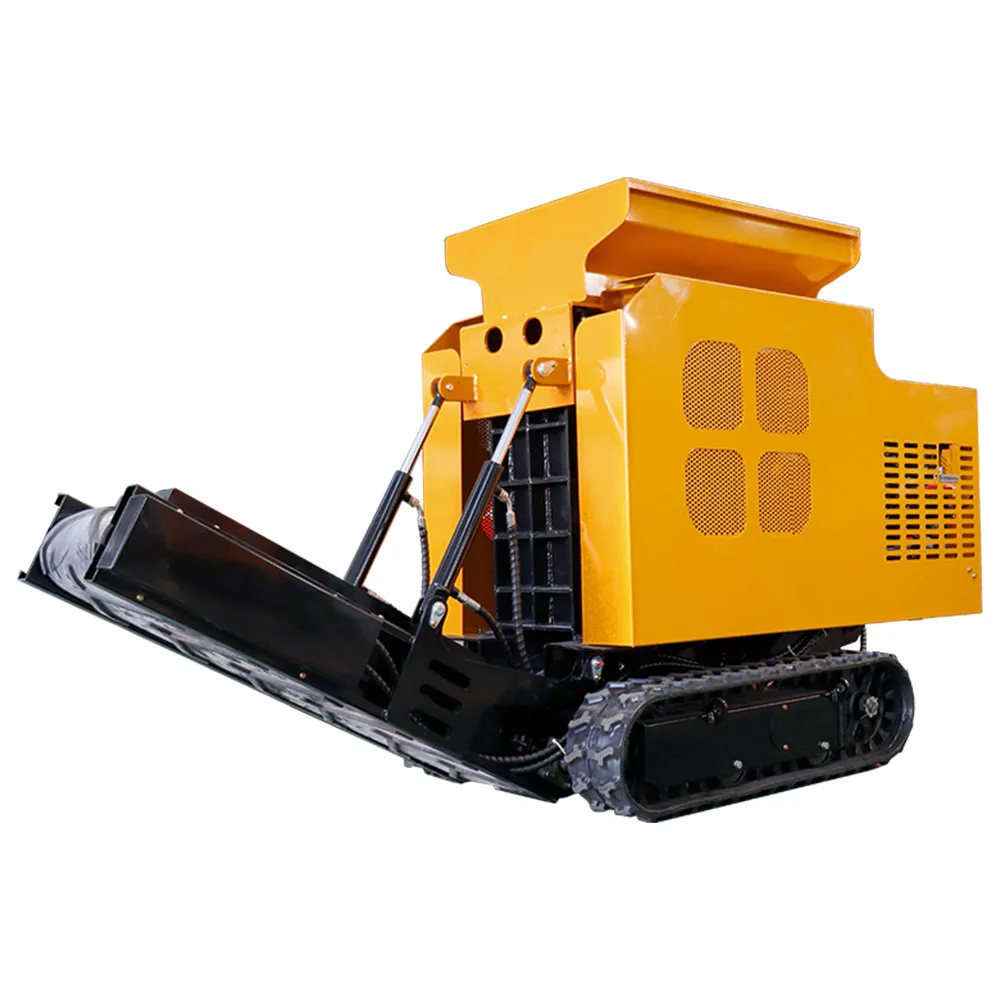

HTJC325 Jaw Crusher
The HTJC325 E-type crusher is used as the first process for crushing various ores, and can crush various ores with compressive strength not exceeding 240MPa to medium particle size in one go.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Instruction
HTJC325 Jaw Crusher Instruction
The HTJC325 E-type crusher is used as the first process for crushing various ores, and can crush various ores with compressive strength not exceeding 240MPa to medium particle size in one go.
Application scope: sand and gravel yards, mining, coal mining, concrete mixing plants, power plant desulfurization, etc.
Crushed materials: bluestone, Yellowstone, iron ore, limestone, iron ore, construction waste, etc.
Parameter
HTJC325 Jaw Crusher Parameter
| Machine Parameter | |
| Model | HTJC325 |
| Working size | 2800*930*1600mm |
| Inner width of vertical board | 280mm |
| Transport size | 1950*930*1640mm |
| Total outer width | 930mm |
| Track model | 180×72×37mm |
| Supporting wheel diameter | 126mm |
| Number of supporting wheels | 4groups |
| Inlet size | 150*250mm |
| Maximum feed size | 150mm |
| Storage bin volume | 0.15m³ |
| Stacking height | 670-1000mm |
| Feeding conveyor | 1400*300mm |
| Gravel range | Diameter 10-30mm |
| Walking speed | 0-3km/h |
| Track specifications: | rubber track |
| Production capacity | 2-4T/h tons/hour |
| Belt width | 300mm |
| Operation form and main accessory parameters | |
| Equipment operation mode: | Manual hydraulic valve |
| Walking method: | Hydraulic power track type |
| Model of walking motor: | 6K-315 |
| Continuous torque | 600N.m |
| Hydraulic pump specifications: | PGP5108 |
| Conveyor motor model: | BMER-300 |
| Conveyor lifting method: | Manually operate hydraulic lifting |
| Lubrication method for jaw fracture mechanism: | grease |
| Adjustment method for track tension: | mechanical |
| Power system | |
| Standard configuration of gasoline engine: | RATO R500-V2-18HP |
| Output power max | 13KW/3600r/min |
| Output torque max | 28N.m/2500r/min |
| Oil type and dosage | |
| Fuel tank capacity | Gasoline 6.5L |
| Oil volume | 1.0L |
| Hydraulic oil tank capacity | 20L 32#/46# Hydraulic oil |
Details
HTJC325 Jaw Crusher Images
