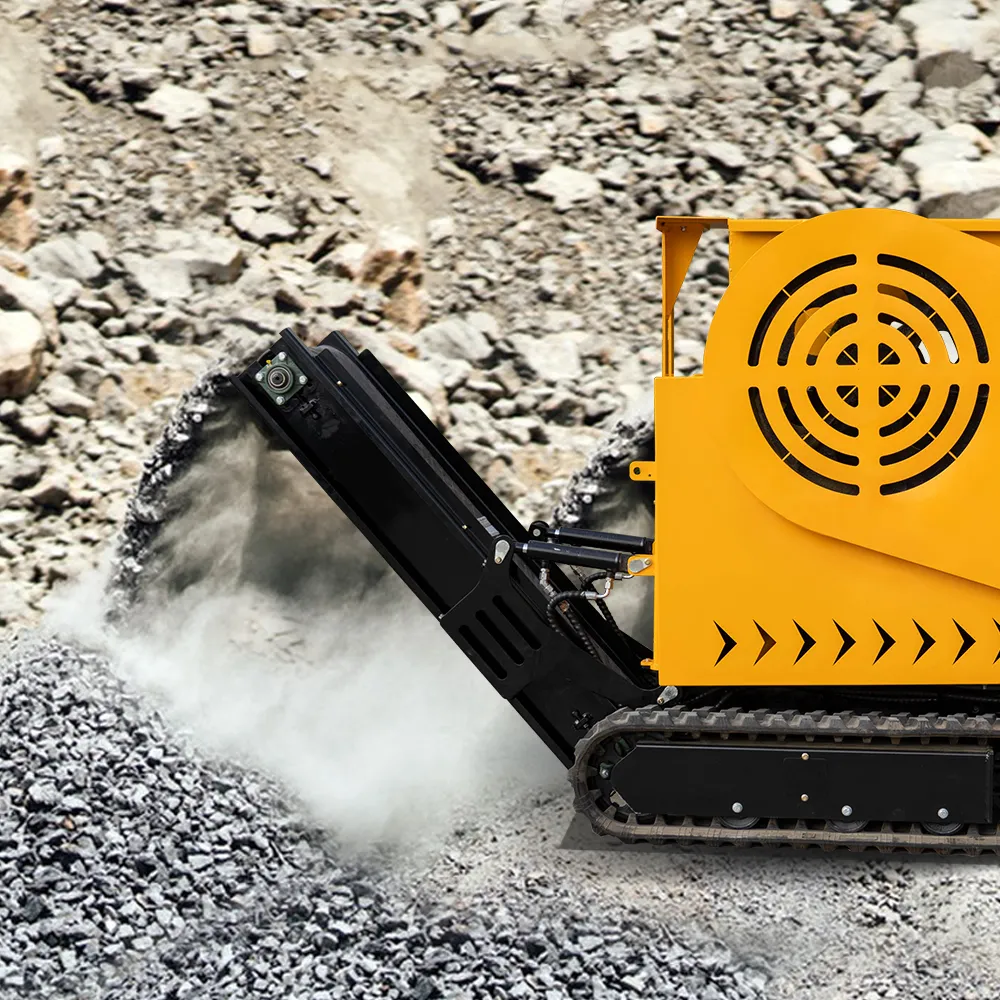

HTJC-430 Crawler Jaw Crusher
The HTJC-430 Crawler Jaw Crusher integrates crushing, conveying and feeding functions into a single compact unit, boasting exceptional adaptability for diverse working conditions. The processed materials are widely applicable across construction, mining, road building and other industries, delivering reliable performance for all your material processing needs.
HTJC-430 Crawler Jaw Crusher: All-in-One Crushing Solution for Versatile Applications
The HTJC-430 Crawler Jaw Crusher integrates crushing, conveying and feeding functions into a single compact unit, boasting exceptional adaptability for diverse working conditions. The processed materials are widely applicable across construction, mining, road building and other industries, delivering reliable performance for all your material processing needs.
Core Advantages
1. Superior Mobility & Flexible Configuration

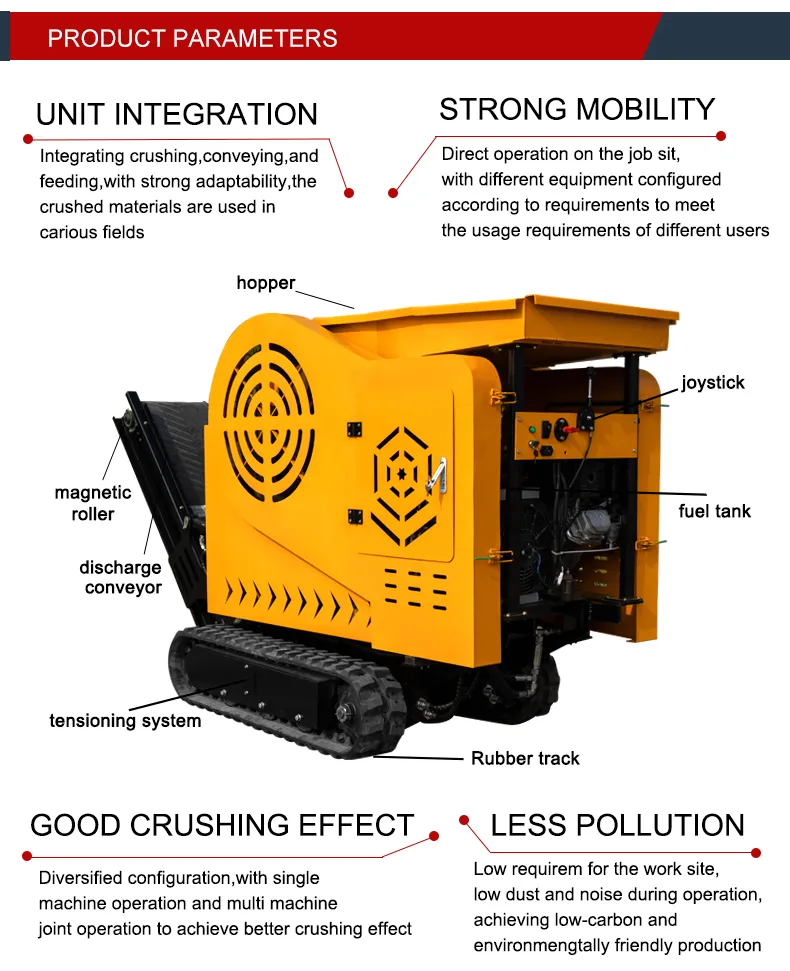

Hightop Jaw Crusher Equipped with sturdy rubber crawlers, this crusher enables direct operation on job sites without the need for complex relocation. It supports flexible customization with optional matching equipment, allowing users to tailor the setup to specific operational requirements. Key operational components including the hopper, control lever, magnetic roller, discharge conveyor, fuel tank, tensioning system and rubber crawler work in tandem to ensure smooth, efficient on-site operation.
2. High-Efficiency Crushing Performance
Featuring a deep cavity crushing structure, the HTJC-430 achieves uniform particle size of finished stone materials, meeting strict quality standards for various applications. It supports both single-machine independent operation and multi-machine joint operation, enabling collaborative workflows that maximize crushing efficiency and optimize material output quality.
3. Eco-Friendly & Low-Impact Operation
HTJC-430 jaw crusher requires minimal site preparation, making it suitable for remote or rugged work environments. With low dust and noise emissions during operation, it realizes low-carbon and environmentally friendly production, complying with strict environmental regulations while reducing the impact on surrounding ecosystems.
.webp)

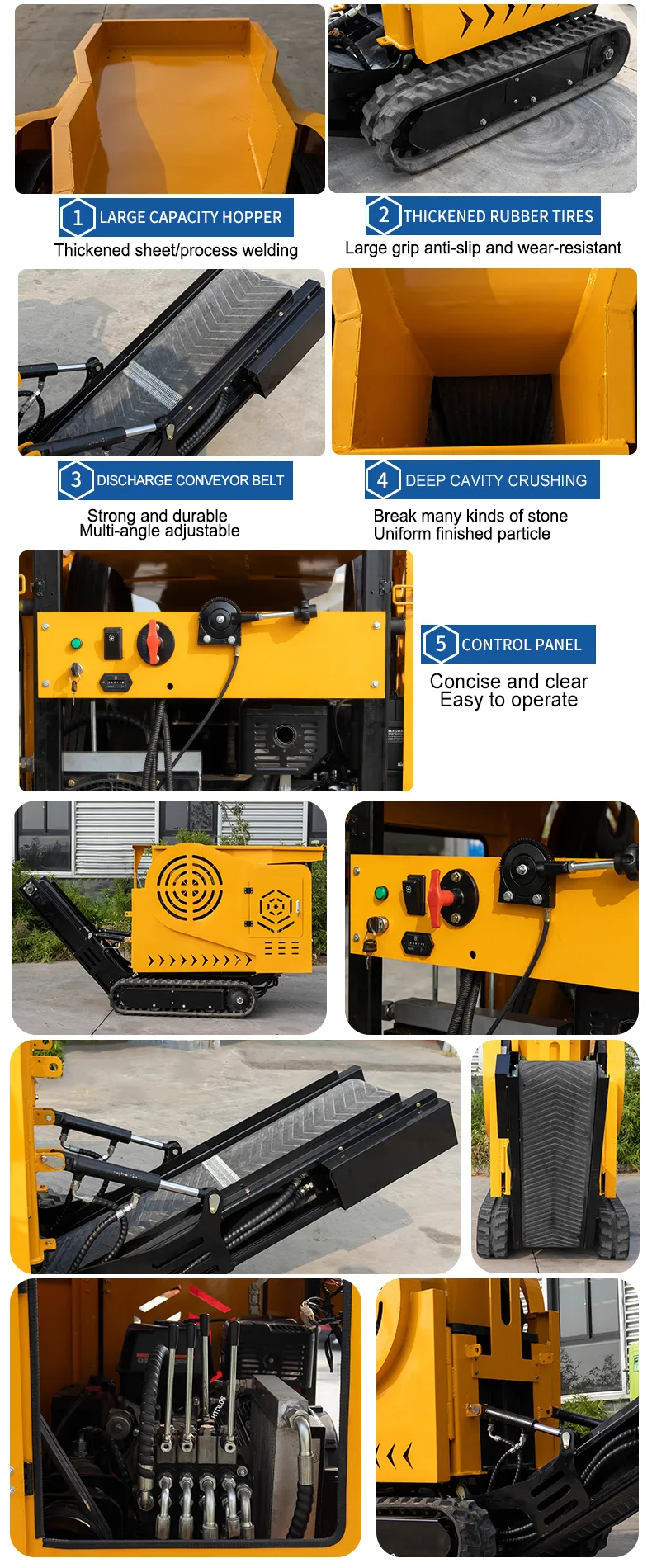

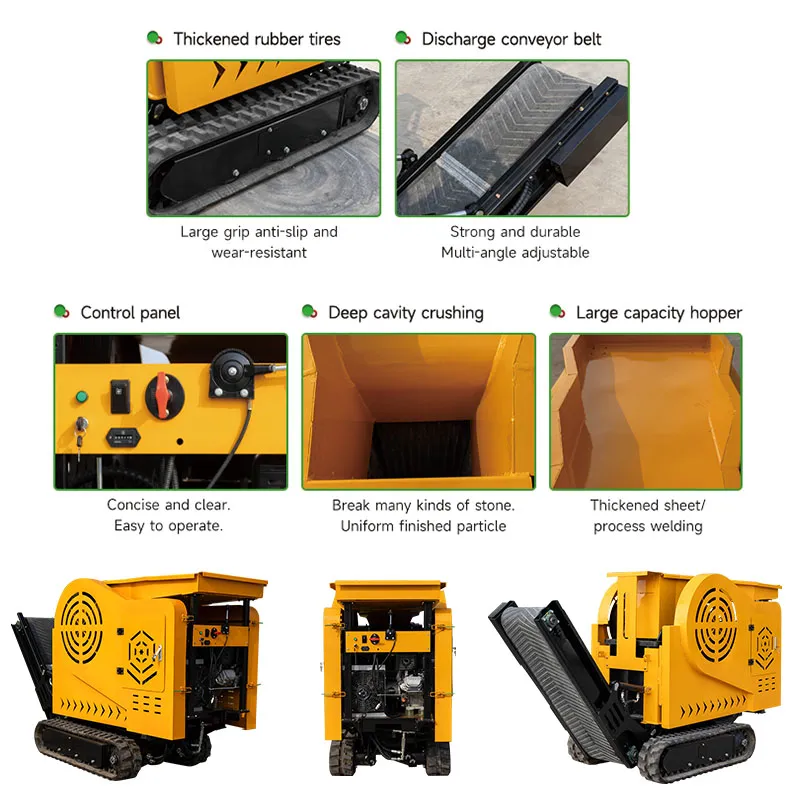

Key Features
Large-Capacity HopperCrafted with thickened steel plates and precision welding technology, the hopper ensures high structural strength and durability, capable of handling large volumes of raw materials without deformation.
Reinforced Rubber CrawlersThe thickened rubber crawlers deliver strong grip, excellent skid resistance and wear resistance, ensuring stable movement on muddy, uneven or slippery terrains.
Adjustable Discharge ConveyorBuilt to be robust and long-lasting, the discharge conveyor supports multi-angle adjustment, allowing flexible control over material discharge direction and height to match different on-site stacking or transfer needs.

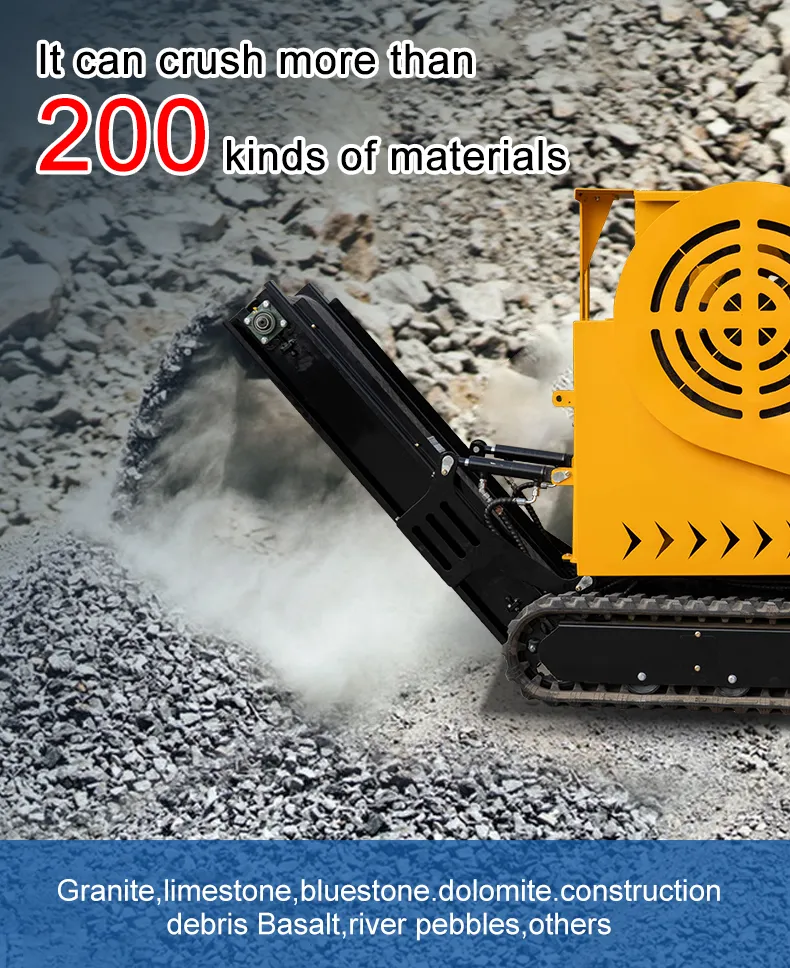

Deep Cavity Crushing DesignThe optimized deep cavity structure is engineered to crush a wide range of stone types, producing uniformly graded finished particles with consistent size, ideal for high-demand application scenarios.

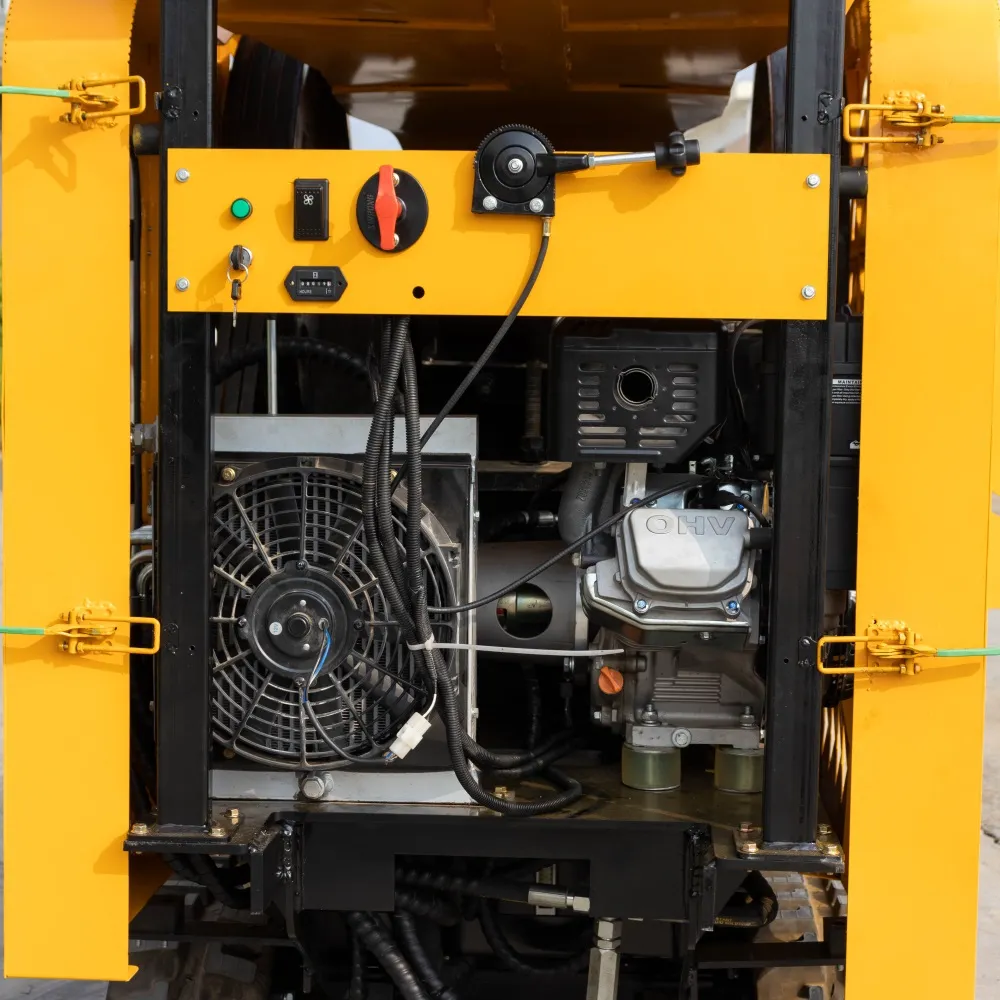

User-Friendly Control PanelThe concise, intuitive control panel features clearly labeled buttons and levers, enabling easy operation even for inexperienced operators, which effectively reduces training time and operational errors.
.webp)
|
Working size(mm): |
3200*1000*1620 |
Vertical plate inner width (mm): |
380 |
|
Shipping size (mm) : |
2100*1000*1750 |
Total outer width of cover (mm) |
960 |
|
Track type (mm): |
180*72*41 |
Bunker volume(m3): |
0.25 |
|
Weight wheel diameter (mm): |
126 |
Stacking height (mm) : |
700-1150 |
|
Number of wheels (groups) : |
6 |
Feeding conveyor(mm) |
1500*500 |
|
Feed port size (mm): |
220*350 |
Gravel range(mm): |
15-50 |
|
Maximum feed size(mm): |
200 |
Travel speed (km/h): |
0-3 |
|
Track specifications: |
Rubber track |
Conveyor belt width (mm): |
400 |
|
Production capacity(T/h tons/hour): |
|
|
|
|
Dynamic system |
Oil type and dosage |
||
|
Gasoline engine standard |
Rato R500-V2-18HP |
Fuel tank capacity /L |
6.5L |
|
Output power |
Oil volume /L |
1.0L |
|
|
6.5 |
Hydraulic tank volume /L |
35L 32#/46 |
|
|
Operating driving and main accessories parameters |
|||
|
Equipment operation mode |
Manual hydraulic valve |
||
|
Walking mode |
Hydraulically powered track type |
||
|
Travelling motor type |
6K-395 |
||
|
Continuous torque |
850 |
||
|
Hydraulic pump specifications |
PGP5108 |
||
|
Conveyor motor model |
BMER-300 |
||
|
Conveyer lifting mode |
Manual operation of hydraulic lift |
||
|
Lubrication method of jaw breaking mechanism |
grease |
||
|
Track tightening adjustment method |
mechanical |
||
