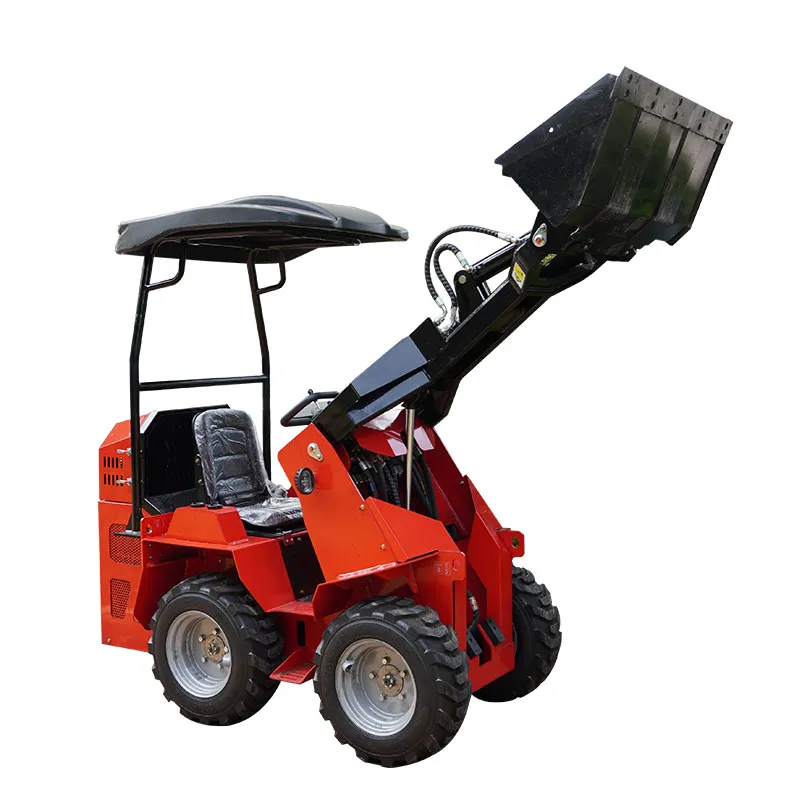

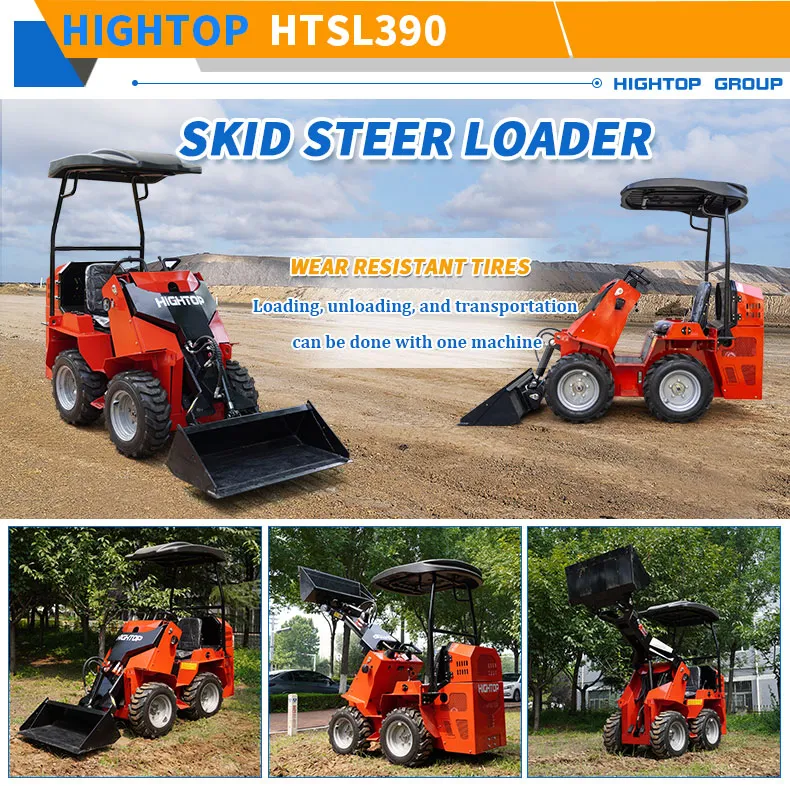

HTSL390 Skid Steer Loader
The hydraulic controllever hascompletefunctions,sensitive control arms,and is easy tooperate.
HTSL390 Skid Steer Loader Instruction

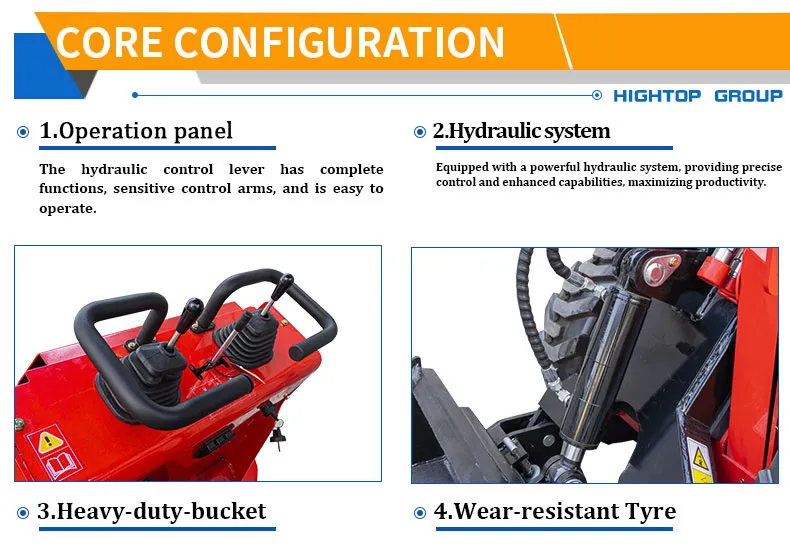

1.Operation panel
The hydraulic controllever hascompletefunctions,sensitive control arms,and is easy tooperate.
2.Hydraulic system
Equipped with a powerful hydraulic system, providing precisecontrol and enhanced capabilities, maximizing productivity.
3. Heavy-duty-bucket
Strong load-bearing capacity makes loading and unloading easy and effortless.
4. Wear-resistant Tyre
Anti-silp wear-resistant steerig fliexable Strong grip

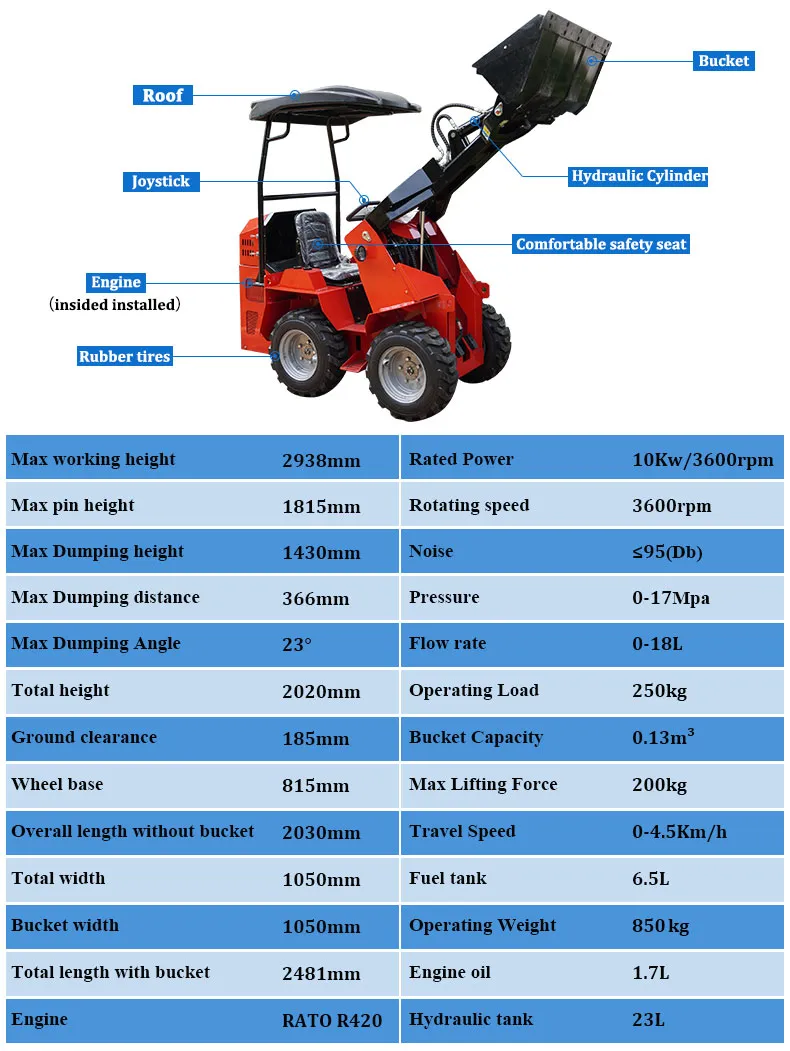

HTSL390 Skid Steer Loader Parameter
|
Max working height |
2398mm |
|
Max pin height |
1815 mm |
|
Max Dumping height |
1430mm |
|
Max Dumping distance |
366mm |
|
Max Dumping Angle |
23 |
|
Total height |
2020mm |
|
Ground clearance |
185 mm |
|
Wheel base |
815 |
|
Overall length without bucket |
2030mm |
|
Total width |
1050mm |
|
Bucket width |
1050mm |
|
Total length with bucket |
2481mm |
|
Engine |
RATO R420 |
|
Rated Power (KW) |
10Kw/3600rpm |
|
Rotating speed (rpm) |
3600 |
|
Noise (Db) |
≤95 |
|
Hydraulic System |
|
|
Pressure (Mpa) |
0-17 |
|
Flow rate |
0-18L |
|
Operating Load |
250KG |
|
Bucket Capacity |
0.13m³ |
|
Max Lifting Force |
200 Kg |
|
Travel Speed |
0-4.5Km/h |
|
Operating Weight |
850kg |
|
Oil |
|
|
Fuel tank |
6.5L |
|
Engine oil |
1.7L |
|
Hydraulic tank |
23L |

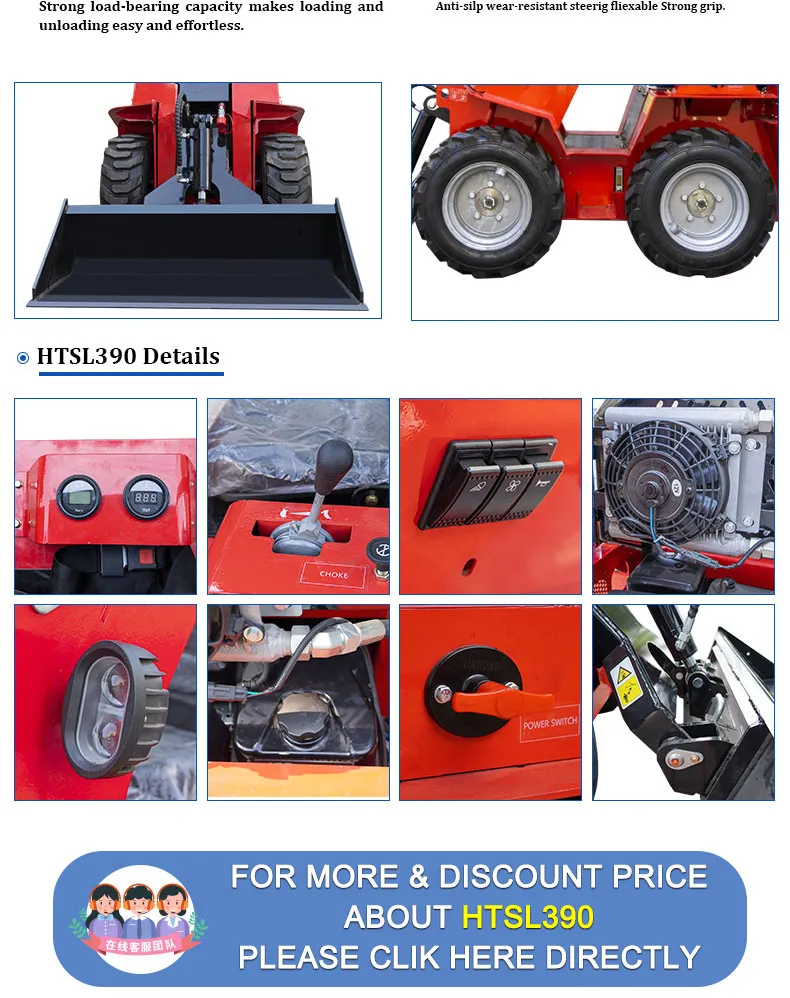

HTSL390 Skid Steer Loader Details
