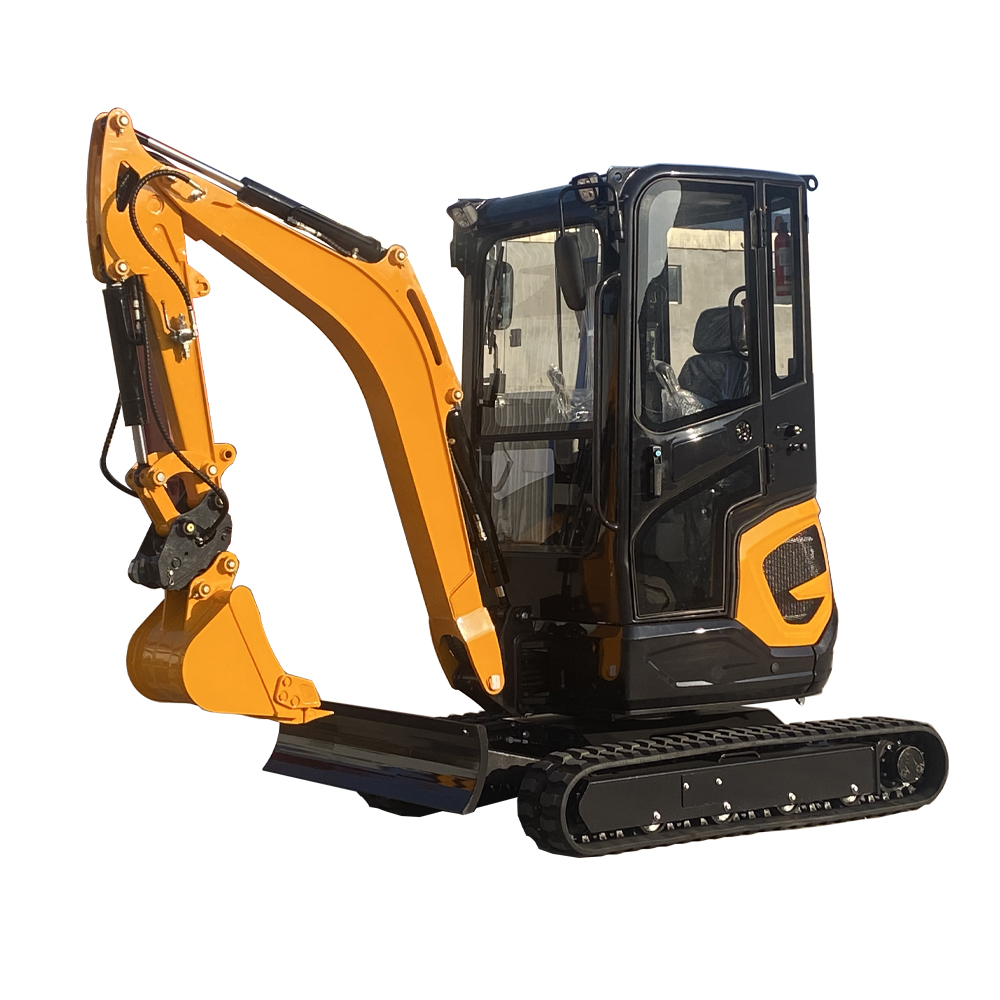

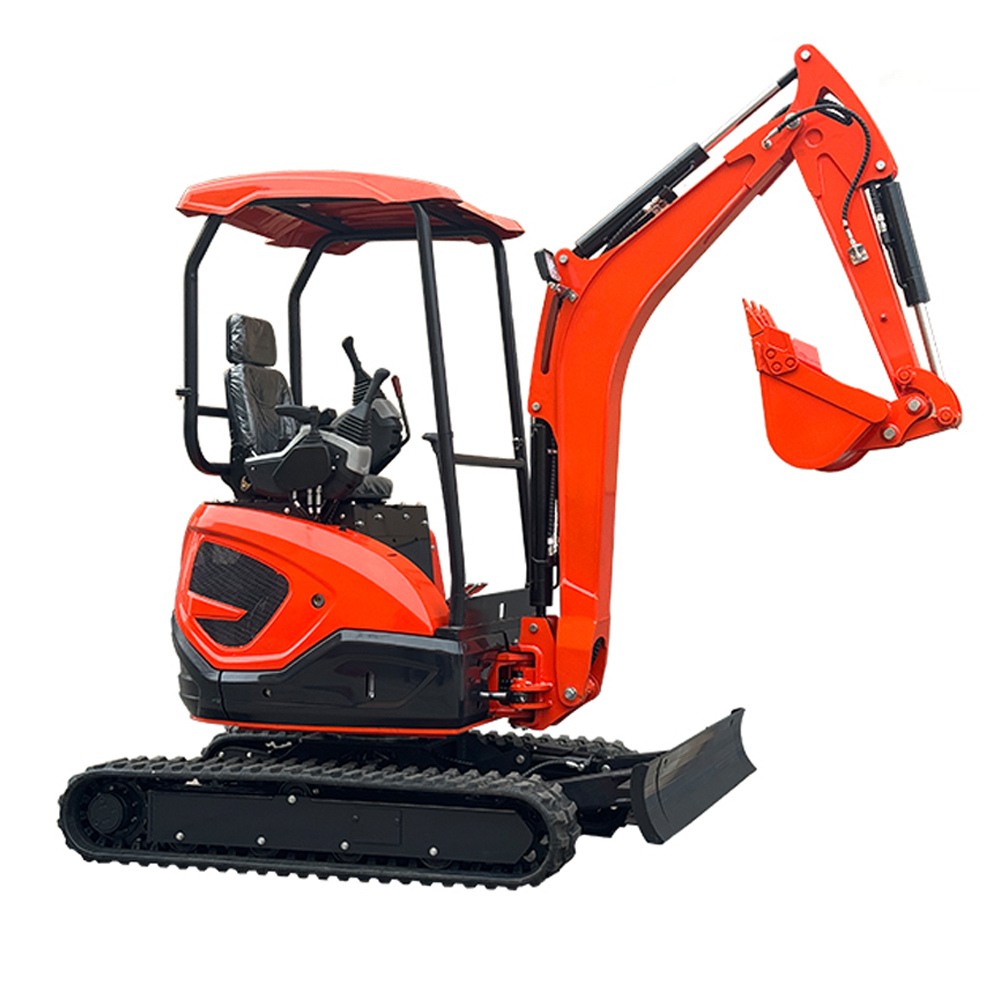

HT25-2 Mini Excavator
Model:HT25-2 |
|
Emission Standard |
Tier 5/ Stage V |
Make |
KUBOTA |
Model |
D1105 |
Power /Rotation speed |
14.1kw(20HP)@2000rpm |
Number of cylinder |
3 |
Maximum Travel speed |
3km-5.5km/h |
Width of track shoe |
250mm |
Number of track shoe per side |
38pcs |
Number of upper roller per side |
1 |
Number of bottom roller per side |
3 |
PERFORMANCE PARAMETER |
|
Standard Bucket capacity |
0.07m³ |
Swing speed |
9 .5 rpm |
Max. Grade ability |
35° |
Maximum Bucket digging force |
19.5KN |
Maximum Arm digging force |
11KN |
Hydraulic system pressure |
21.5Mpa |
Machine weight |
2480kg |
MACHINE SIZE |
|
Overall dimension (L*W*H) |
3850*1300/1500*2290mm |
Chassis Recovery |
1300mm |
Chassis Extension |
1500mm |
Axle base(Track length on ground) |
1300mm |
Min.Ground clearance |
230mm |
Swing radius at tail |
750mm |
Working Range |
|
Maximum Digging height |
3980mm |
Maximum Dumping height |
2610mm |
Maximum Digging depth |
2500mm |
Maximum Vertical digging depth |
2050mm |
Maximum Digging radius |
4130mm |
Minimum swing radius |
1850mm |
Maximum Lifting height of blade |
280mm |
Maximum Cutting depth of blade |
310mm |
Boom swing angle(Left) |
75° |
Boom swing angle(Right) |
55° |
