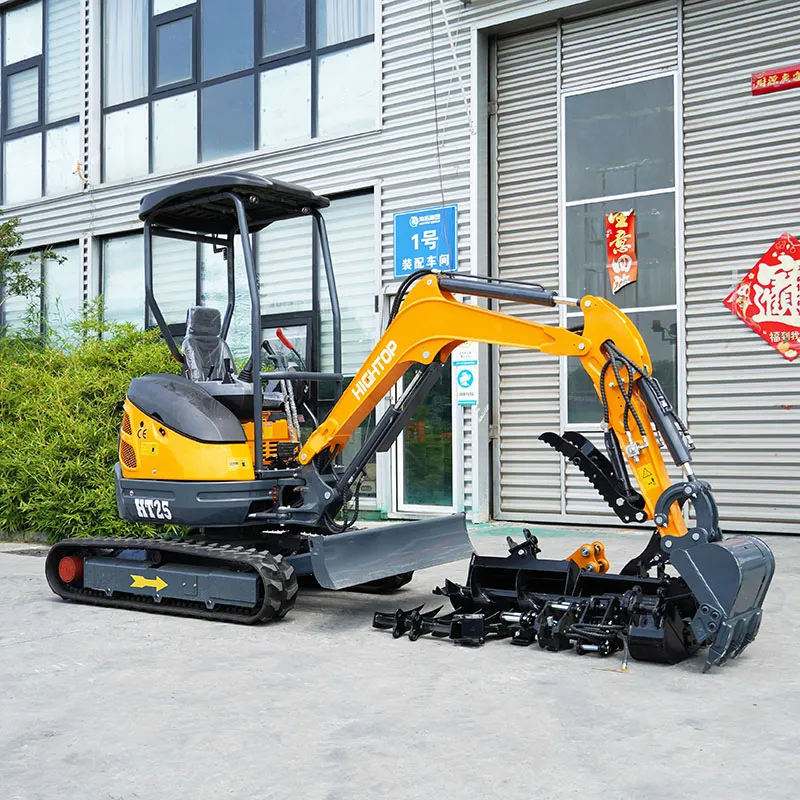

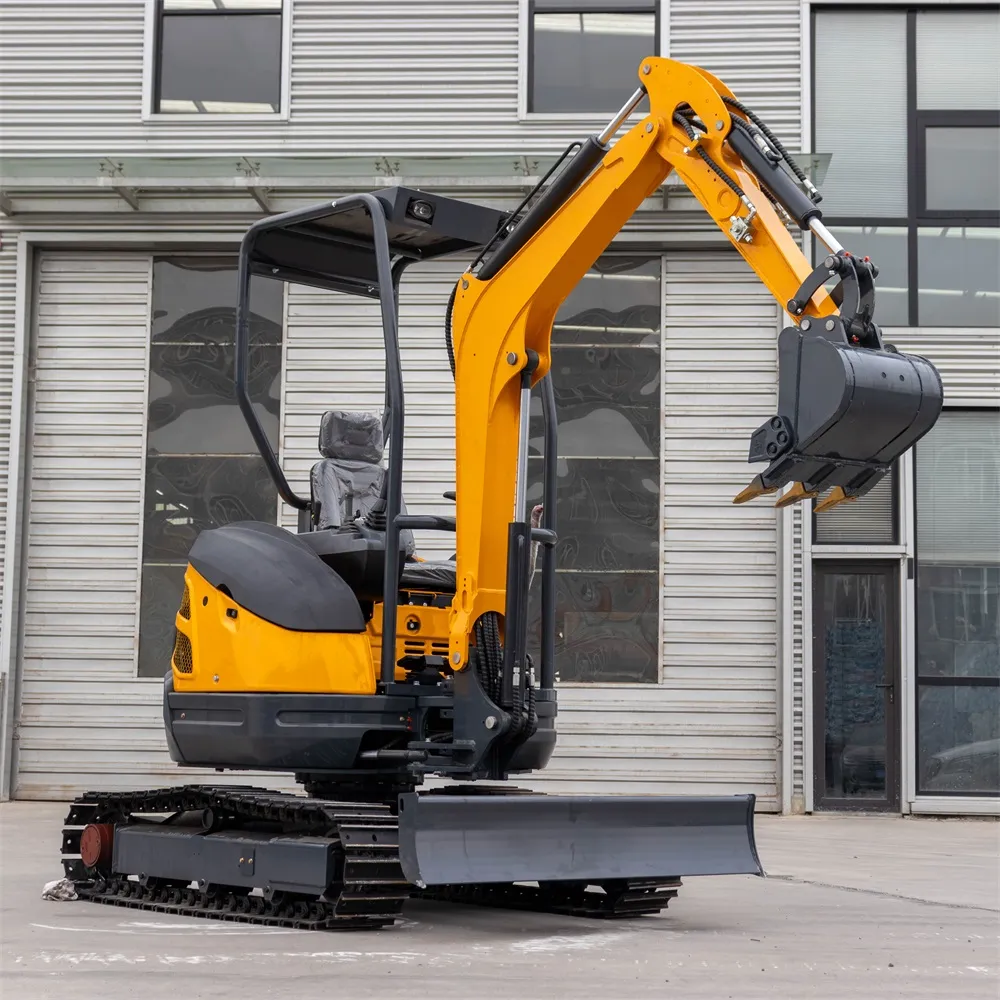

HT25 2.5T Mini Excavator
The Hightop HT25 2.5T mini excavator is a compact crawler excavator powered by a Kubota D1105 engine (14.2kW). Designed for versatility and durability, it features steel tracks, fully hydraulic pilot operation, and a hidden oil pipe structure. Optional upgrades include a cab, air conditioning, boom swing, and retractable tracks. CE and ISO certified — ready for a wide range of job sites.
The HT25 mini excavator has passed international quality certifications such as CE and ISO, and can be equipped with optional features such as a cab, air conditioning, boom deflection, and retractable tracks. It supports brand and color customization
Kubota D1105 engine
The HT25 mini excavator uses the Japanese brand Kubota D1105 three cylinder direct injection engine, with a power of up to 14.2KW

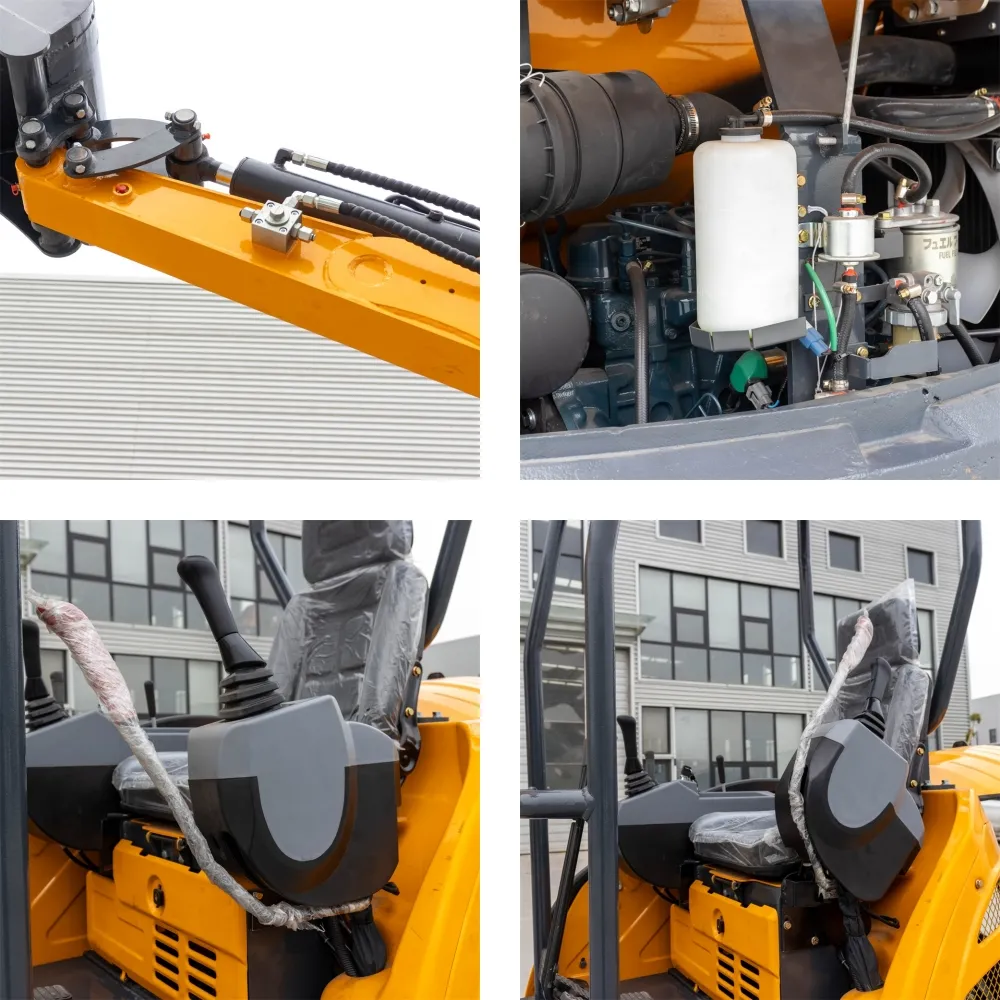

Fully hydraulic pilot operation
The fully hydraulic pilot operation includes: pilot handles on both sides, bulldozer shovel, walking operation, breaking hammer, and side swing function. When working, after the engine is started, the safety lock must be pulled down first before the entire vehicle can move, which can effectively protect the driver with an effective safety protection function.
Driving functions
The Hightop HT25 compact excavator is equipped with a key power-off function. Most models have a mechanical power-off switch. Before starting the vehicle, the main power switch must be turned on to start the engine. When turning off the vehicle, the switch needs to be turned off. If the customer does not turn it off, it will cause the battery to be depleted, and the engine will not start the next time. This key power supply can avoid this problem. After turning off the vehicle key and turning off the engine, the power supply will automatically power off.

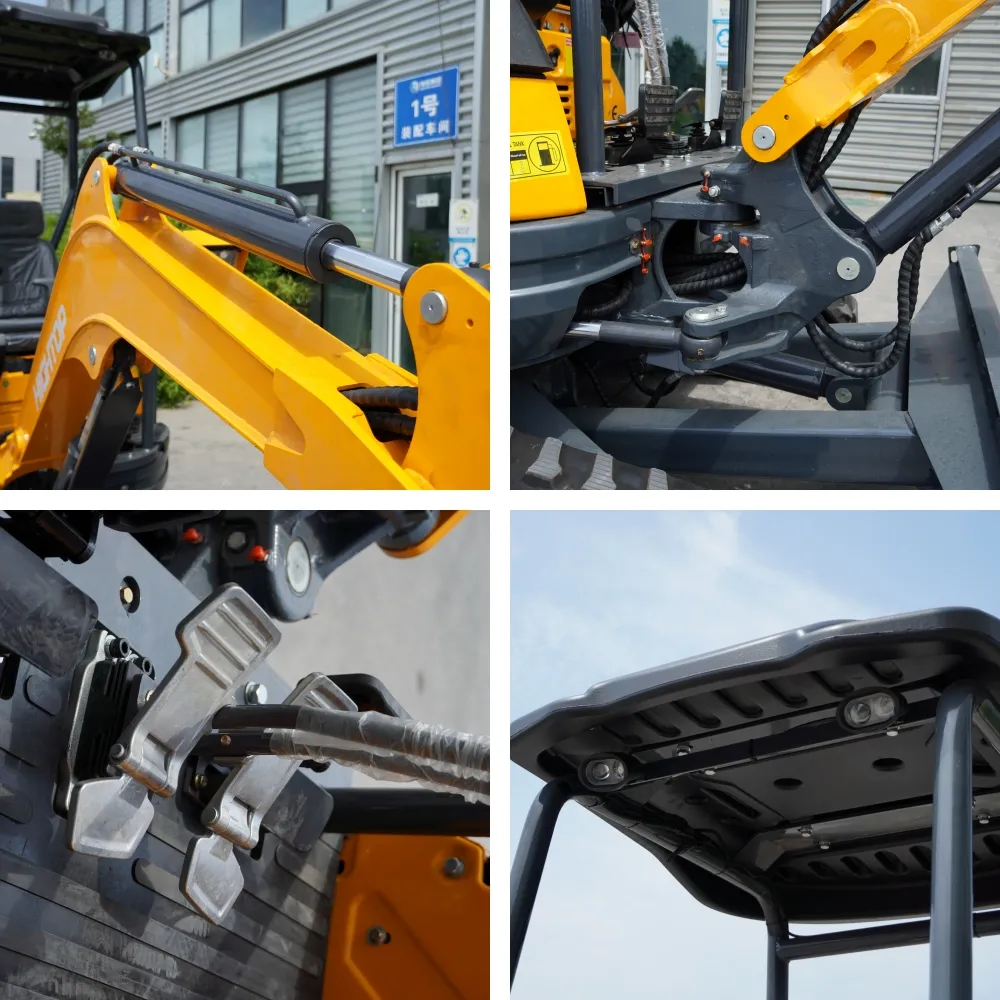

Hidden oil pipe
The oil pipe adopts a hidden structure, effectively preventing the hydraulic oil pipe from being exposed to sunlight for a long time. When working in harsh geological environments, customers can protect the pipe from wear and tear caused by interference with other components, thereby extending its service life.
The hydraulic oil pipe of the boom penetrates into the internal structure, which has the advantage over other models in that it can resist sunlight and oxidation. When it is broken, it is not easy to break the pipe and damage the hose.
| HT20Z Mini Excavator — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Total Length / Transportation Length | 2870mm |
| Total Width | 1400mm |
| Upper Width | 1320mm |
| Overall Height (Cab Roof) | 2440mm |
| Standard Track Plate Width | 250mm |
| Track Gauge | 1150mm |
| Minimum Ground Clearance | 145mm |
| Tail Turning Radius | 700mm |
| Track Ground Length | 1480mm |
| Track Length | 1858mm |
| Performance Parameters | |
| Working Mass | 2150kg |
| Bucket Capacity | 0.036m³ |
| Rated Power | 14KW/2200RPM |
| Slewing Speed | 12RMP |
| Climbing Capacity | 40° |
| Working Range (Unit: mm) | |
| Maximum Digging Height | — |
| Maximum Digging Depth | 2045mm |
| Maximum Digging Distance | 3430mm |
| Minimum Turning Radius | 1955mm |
| Maximum Height at Minimum Turning Radius | 2740mm |
| Main Components | |
| Engine | Kubota D1105 (3-cylinder direct injection) |
| Engine Rated Power | 14.2KW/2200 |
| Engine Oil Capacity | 5.1L |
| System Flow | 61.6L/min |
| Flow Sharing Main Valve | TRM10-BX-09-JNJT20-01 |
| Main Valve Pressure | 22MP |
| Hydraulic Pump | Swash plate type axial piston variable pump (TFA10VO28/53R) |
| Pump Displacement | 28ml |
| Pump Max Speed | 3000r/min |
| Traveling Motor | Axial variable piston motor |
| Motor Displacement | 6/12.5ml |
| Traveling Speed | 2.85/6.45km/h |
| Traction | 32KN |
| Fuel Tank Capacity | 30L |
| Cooling System Capacity | 5.05L |
| Hydraulic Oil Tank Capacity | 29L |
