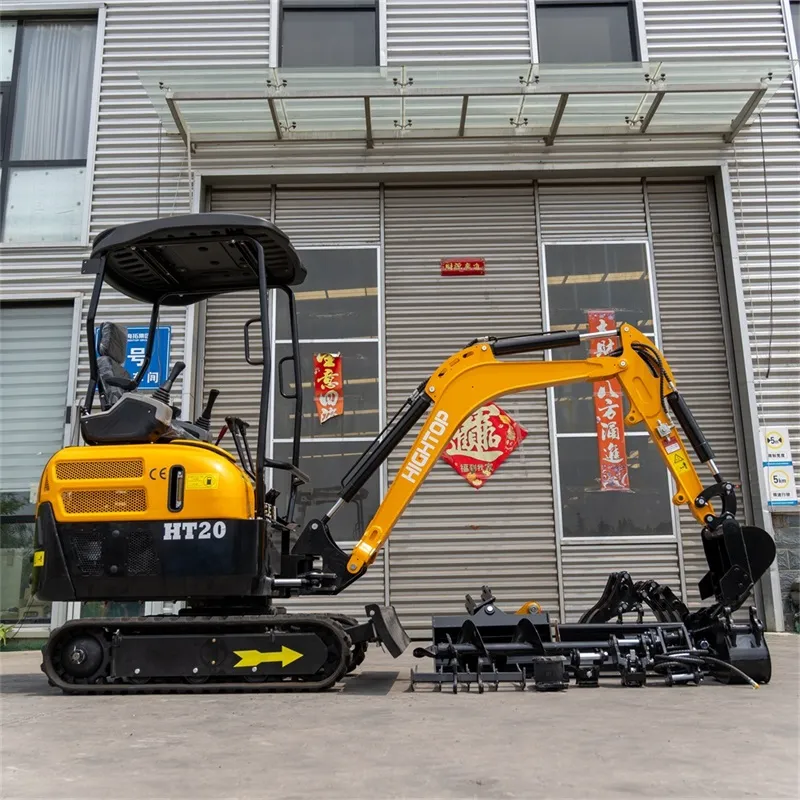

HT20-1 Mini Excavator
HT20-1 |
Specification |
||
Engine |
Laidong385 3TN25 |
Working |
2000kg |
Vavle |
Beifang |
Bucket capacity |
0.04m3 |
Overall Dimension |
Rated power |
19KW/2200RPM |
|
Total length/transportation length |
3337/2597mm |
Revolation speed |
12RMP |
Total width |
1100mm |
Gradeability |
30° |
Upper width |
1053mm |
Working range |
|
Total Height |
2325mm |
Max. Digging Height |
2580mm |
Track width |
180mm |
Max. Dumping Height |
1637mm |
Track Gauge |
920mm |
Max. digging depth |
2060mm |
Mini. ground clearance |
119mm |
Max. digging distance |
3130mm |
Tailswing Radius |
1013mm |
Min. swing Radius |
1575mm |
Track ground length |
1050mm |
Height when min. swing radius |
2075mm |
Track length |
1545mm |
