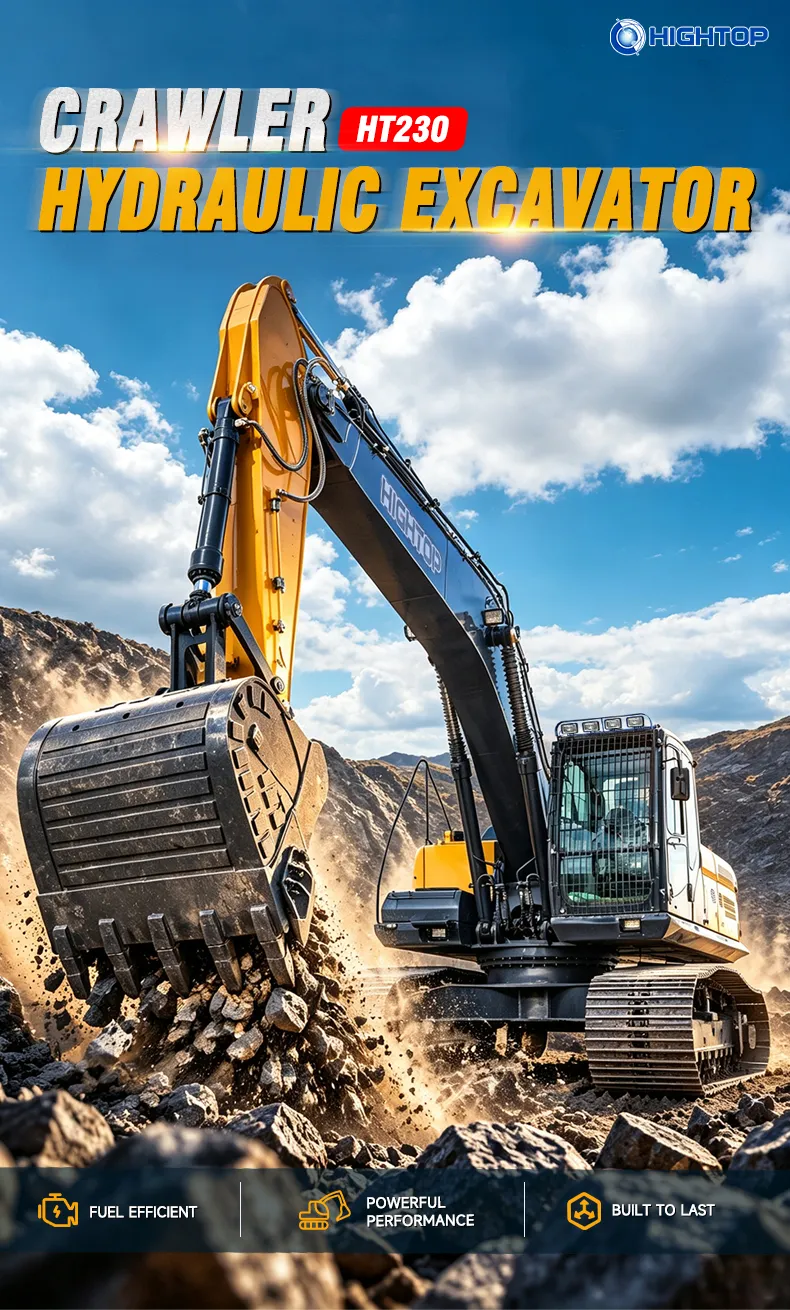

HT230 22.3-Ton Crawler Excavator — Factory-Direct
The HT230 is a 22.3-ton crawler hydraulic excavator manufactured at Hightop's Jining facility, configured with a 1.2 m³ bucket and a 128–135 kW engine available in Isuzu or Cummins. Built for trenching, quarry support and general earthmoving, and supplied factory-direct with OEM/ODM and export support.
Why Buyers Source the HT230 Direct from the Manufacturer
The 22-ton excavator class is one of the most competitive segments in the global construction equipment market. Dozens of suppliers offer machines with similar specifications. The difference for a distributor or fleet buyer often comes down to three things: who actually builds the machine, what quality process it passes through, and who stands behind it after shipment.
Hightop manufactures the HT230 at its Jining facility in Shandong Province, China. The machine is not rebranded or assembled from mixed-origin kits. Undercarriage, upper structure, hydraulic system, cab and counterweight are integrated on Hightop's own production line.
What the HT230 Is Built to Do
The HT230 is a 22.3-ton crawler hydraulic excavator configured with a 1.2 m³ bucket and a 128–135 kW engine. Its working range — 6,592 mm max digging depth, 9,873 mm max digging radius, 144.1 kN digging force — positions it for:
- Municipal and utility trenching — pipe laying, drainage, cable routes
- Quarry support work — face loading, bench preparation, material handling
- General construction earthmoving — foundation excavation, site preparation
- Rental fleet deployment — a size class with consistent demand across project types
The 22.3-ton weight class is deliberately chosen: heavy enough for production digging, transportable without the oversize permitting that 30-ton-plus machines require in many markets.
Engine Configuration — A Sourcing Decision
The HT230 offers Isuzu and Cummins engine options, both rated 128–135 kW. For distributors and fleet buyers, this is not a minor spec choice. It determines service network alignment, parts distribution and buyer acceptance in the target market.
| Factor | Isuzu | Cummins |
|---|---|---|
| Service network strength | Southeast Asia, East Asia | Africa, Middle East, CIS, Latin America |
| Parts distribution | Regional | Broader global coverage |
| Buyer preference by market | Strong in some Asian markets | Preferred in many export markets |
Hightop confirms engine selection against the destination country and buyer's service infrastructure during quotation — not as a default assumption.
Manufacturing and Quality Control
- Production at Hightop's Jining facility under ISO 9001-aligned quality management
- Pre-shipment function testing: hydraulic circuit pressure, travel system operation, digging cycle function
- Specification sheet issued matching the confirmed configuration
- Export documentation and inspection support from Qingdao port
Who Sources the HT230 from Hightop
| Buyer Profile | Why They Choose Factory-Direct |
|---|---|
| Equipment distributors | OEM/ODM options, branding support, dealer pricing tiers |
| Rental fleet operators | Consistent spec across units, dual-engine simplifies fleet service planning |
| Contractors buying for own projects | Configured to application, not off-the-shelf |
| Government and tender suppliers | Documentation support, spec compliance confirmation |
OEM / ODM and Dealer Cooperation
Hightop supports custom branding and paint schemes, attachment pre-configuration at factory, specification adjustments within the HT230 platform, and bulk order pricing with dealer territory discussion.
Request a Factory-Direct Quotation
Provide the following for an accurate quotation:
- Engine preference (Isuzu / Cummins) or destination country for recommendation
- Bucket capacity requirement
- Attachment needs at time of order
- Quantity and dealer/OEM requirements
- Destination port
Hightop's export sales team responds with specification confirmation, shipping dimensions, lead time and commercial terms.
Contact Hightop for HT230 factory-direct pricing and export cooperation.

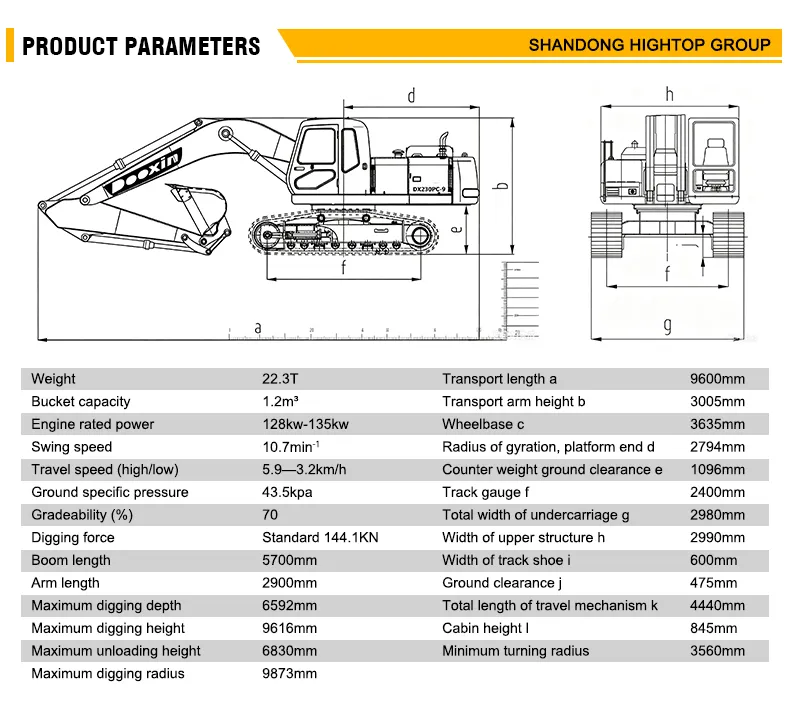

HT230 Technical Specifications
| General Specifications | |
|---|---|
| Model | HT230 |
| Operating Weight | 22.3 T |
| Bucket Capacity | 1.2 m³ |
| Engine Rated Power | 128 kW – 135 kW |
| Engine Options | Isuzu / Cummins |
| Standard Digging Force | 144.1 kN |

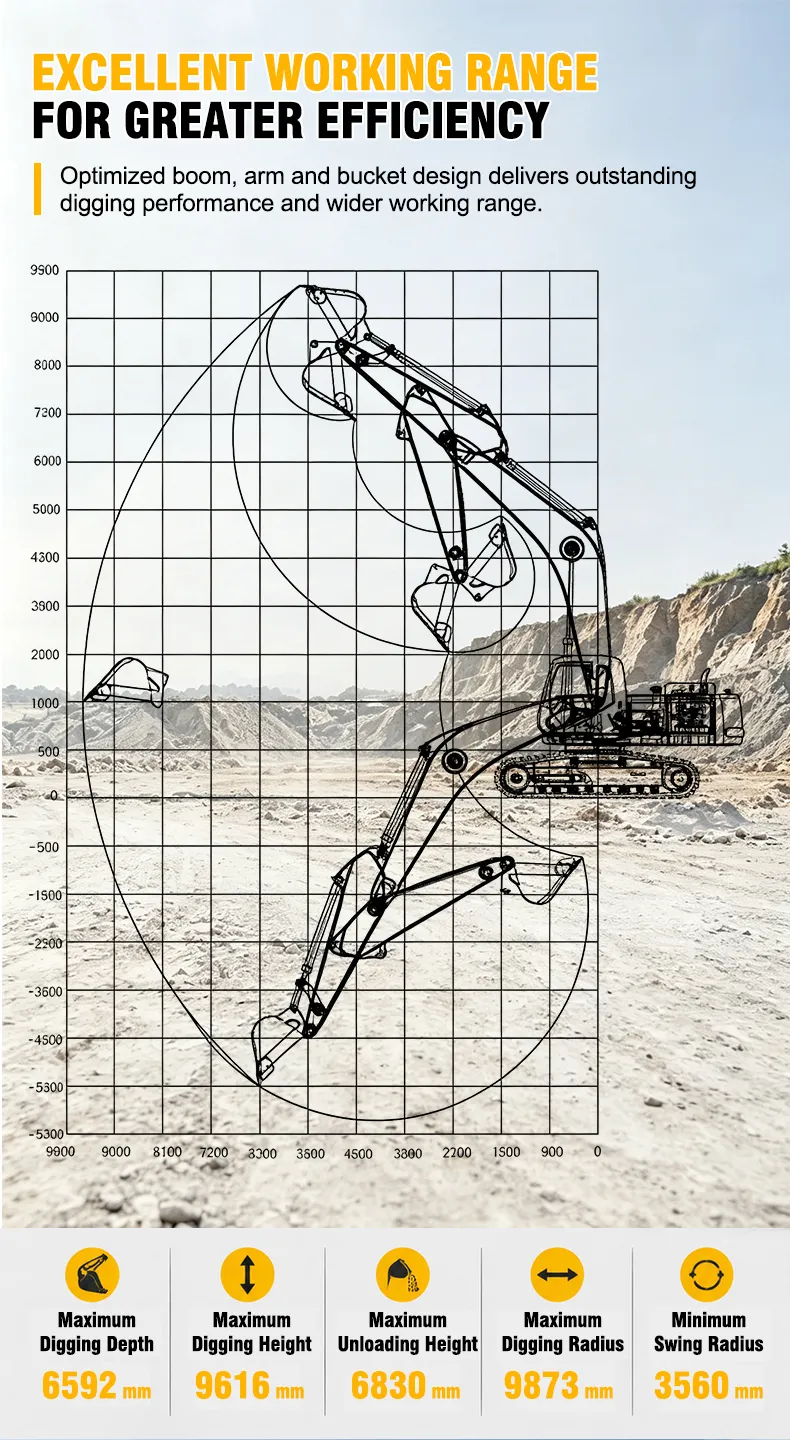

| Working Range | |
| Maximum Digging Depth | 6592 mm |
| Maximum Digging Height | 9616 mm |
| Maximum Dumping Height | 6830 mm |
| Maximum Digging Radius | 9873 mm |
| Boom Length | 5700 mm |
| Arm Length | 2900 mm |
| Travel System | |

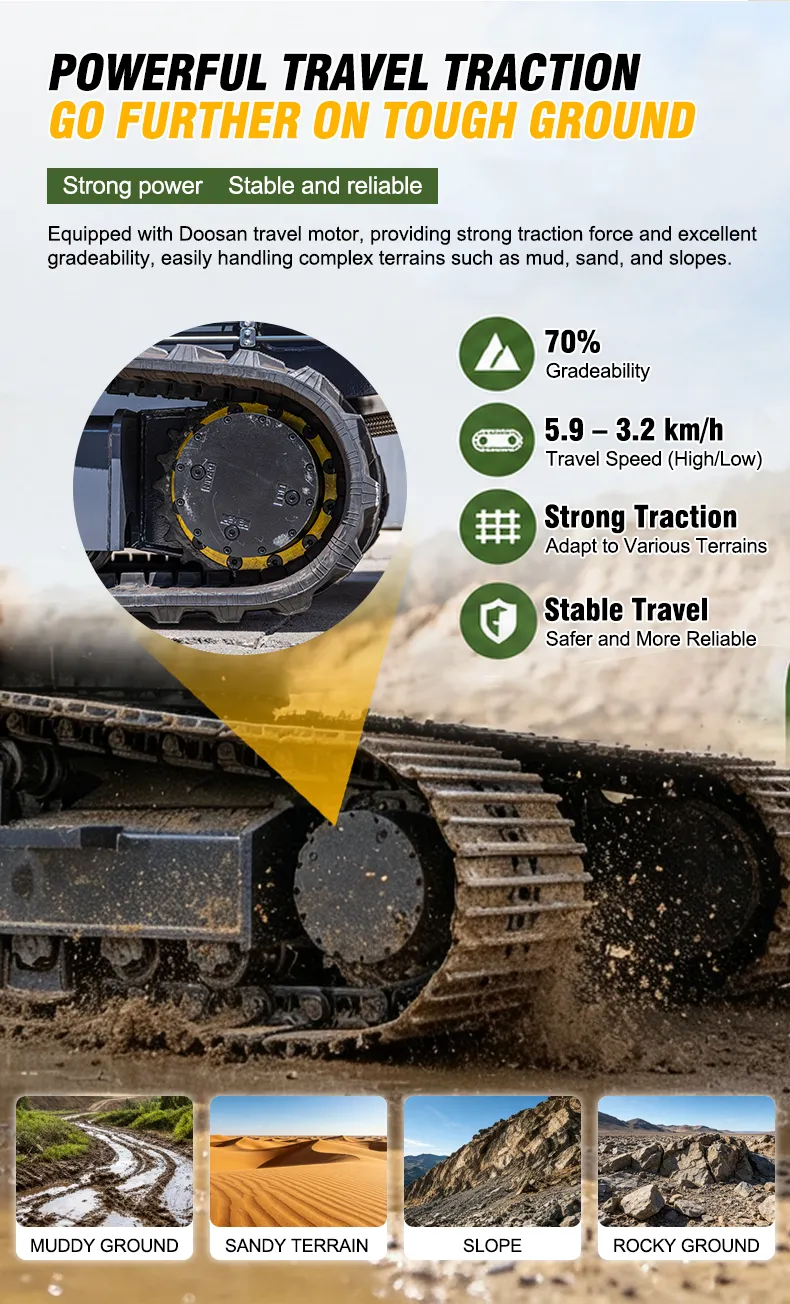

| Travel Speed (High/Low) | 5.9 – 3.2 km/h |
| Swing Speed | 10.7 min⁻¹ |
| Gradeability | 70% |
| Ground Pressure | 43.5 kPa |
| Track Shoe Width | 600 mm |
| Track Gauge | 2400 mm |
| Track Shoe Length | 4440 mm |
| Dimensions | |
| Transport Length (a) | 9600 mm |
| Transport Height (b) | 3005 mm |
| Tail Swing Radius (d) | 2794 mm |
| Counterweight Ground Clearance (e) | 1096 mm |
| Undercarriage Width (g) | 2980 mm |
| Upper Structure Full Width (h) | 2990 mm |
| Ground Clearance (i) | 475 mm |
| Cab Height (l) | 845 mm |
HT230 Sourcing & Export FAQ
Can I order the HT230 with my own brand name?
Yes. Hightop supports OEM and ODM requests on the HT230 platform, including custom branding, paint scheme and specification adjustments. Provide your brand requirements and target market during inquiry, and the export team will confirm feasibility and lead time.
What is the minimum order quantity for dealer pricing?
Dealer pricing tiers depend on order volume, configuration consistency and target market. For single-unit project purchases, standard factory-direct pricing applies. For fleet or distributor orders, contact Hightop with your planned quantity and market to discuss terms.
How long does production take after order confirmation?
Lead time depends on the confirmed configuration — engine option, bucket capacity, attachment pre-installation and branding requirements. Hightop confirms the production schedule in the quotation so buyers can plan logistics and project timelines.
Which port does Hightop ship the HT230 from?
HT230 units are shipped from Qingdao port, China. Hightop coordinates pre-shipment inspection, loading documentation and export clearance. For FCL and breakbulk options, the export team confirms the most suitable shipping method based on quantity and destination.
Can Hightop provide documentation for government tenders?
Yes. Hightop can provide specification sheets, configuration confirmation and export documentation to support tender submissions. Provide the required document list and compliance criteria during inquiry.
What spare parts support is available after shipment?
Hightop supplies spare parts for the HT230 and can discuss parts stocking arrangements for distributors and fleet operators. Contact the team with your parts requirements and service plan.
