HT260 Crawler Excavator — Cummins Power & Kawasaki Hydraulics，Factory-Direct

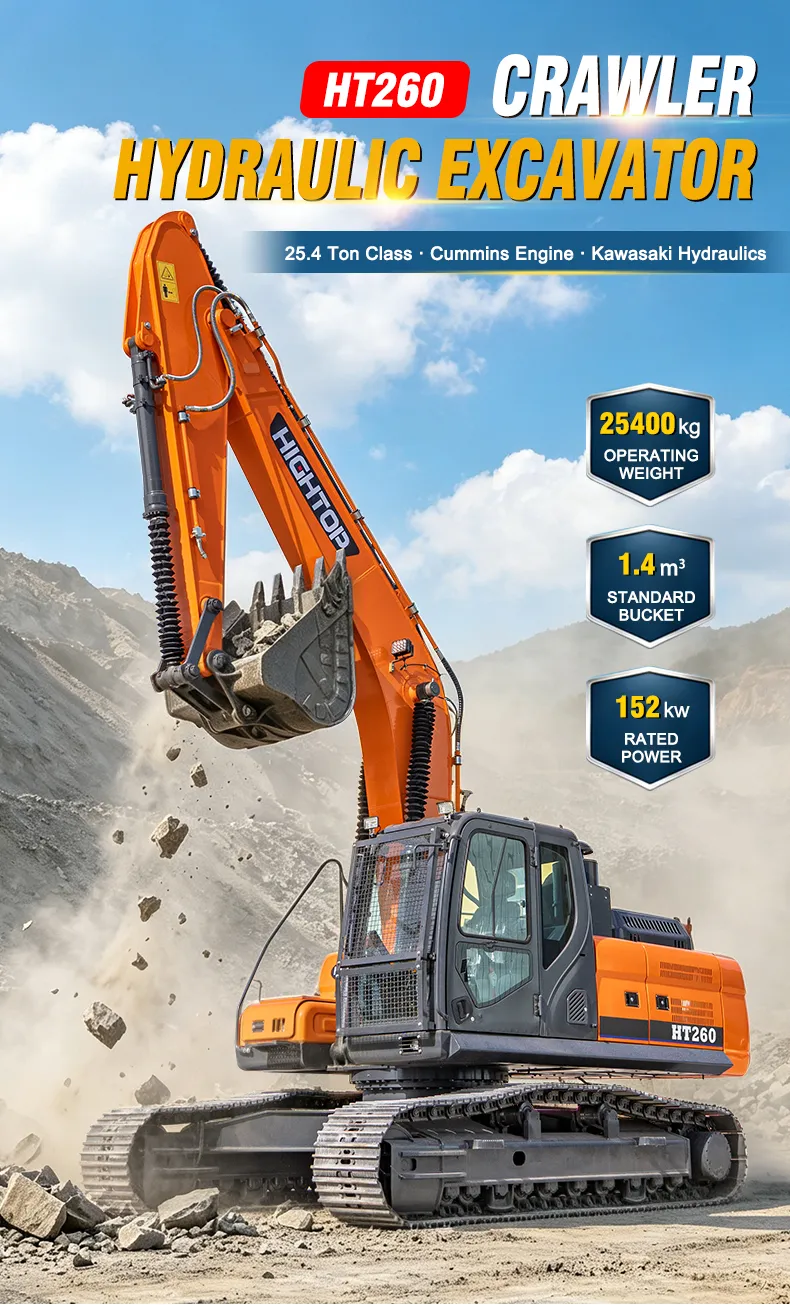

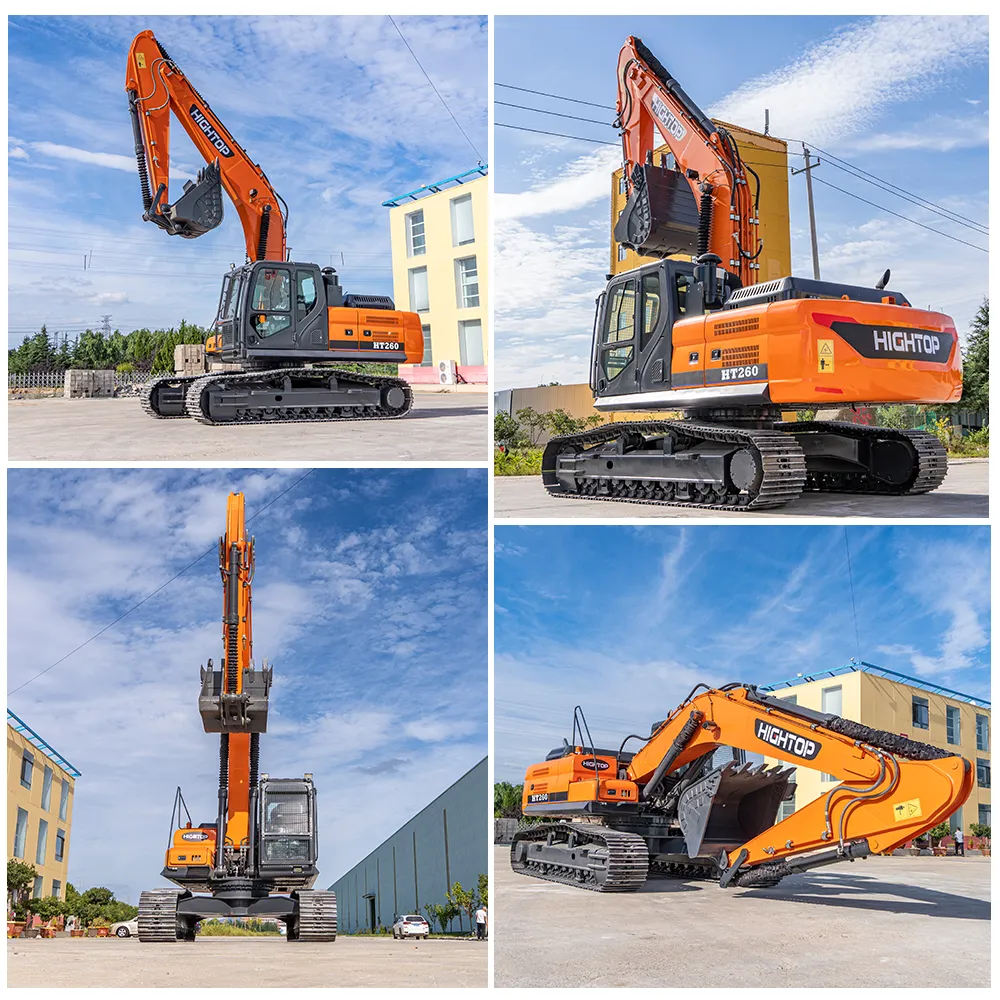

The HT260 is a 25.4-ton crawler hydraulic excavator powered by a Cummins 6BTA5.9 engine rated at 152 kW, with a full Kawasaki hydraulic system and Doosan travel motor. Configured with a 1.4 m³ bucket, 169 kN bucket digging force and 10,202 mm maximum digging reach, it is built for demanding trenching, quarry loading and road construction work.
Why the HT260 Sits Above the Standard 25-Ton Class
At 25.4 tons, the HT260 occupies a segment where buyers are no longer compromising. This is the class where contractors expect branded powertrain components, verifiable digging force and a hydraulic system that holds cycle times under continuous load. Hightop builds the HT260 at its Jining facility with that expectation in mind.
Unlike machines that mix generic hydraulic components with a branded engine, the HT260 uses a matched Cummins + Kawasaki + Doosan configuration. Each component is specified by brand because buyers in this class check.
Cummins 6BTA5.9 — The Powerplant Buyers Recognize
The HT260 is powered by a Cummins 6BTA5.9, a 6-cylinder, in-line, 4-stroke, water-cooled, turbocharged and air-to-air intercooled diesel engine rated at 152 kW at 2200 rpm, with a maximum torque of 655 Nm at 1500 rpm.
For distributors and fleet buyers, the practical value of this engine is not just output. It is:
- Global parts availability — Cummins 6BTA5.9 parts are stocked through a worldwide dealer network
- Service familiarity — most diesel mechanics in export markets have worked on this engine family
- Fuel capacity for long shifts — 420 L fuel tank supports extended operation without frequent refueling

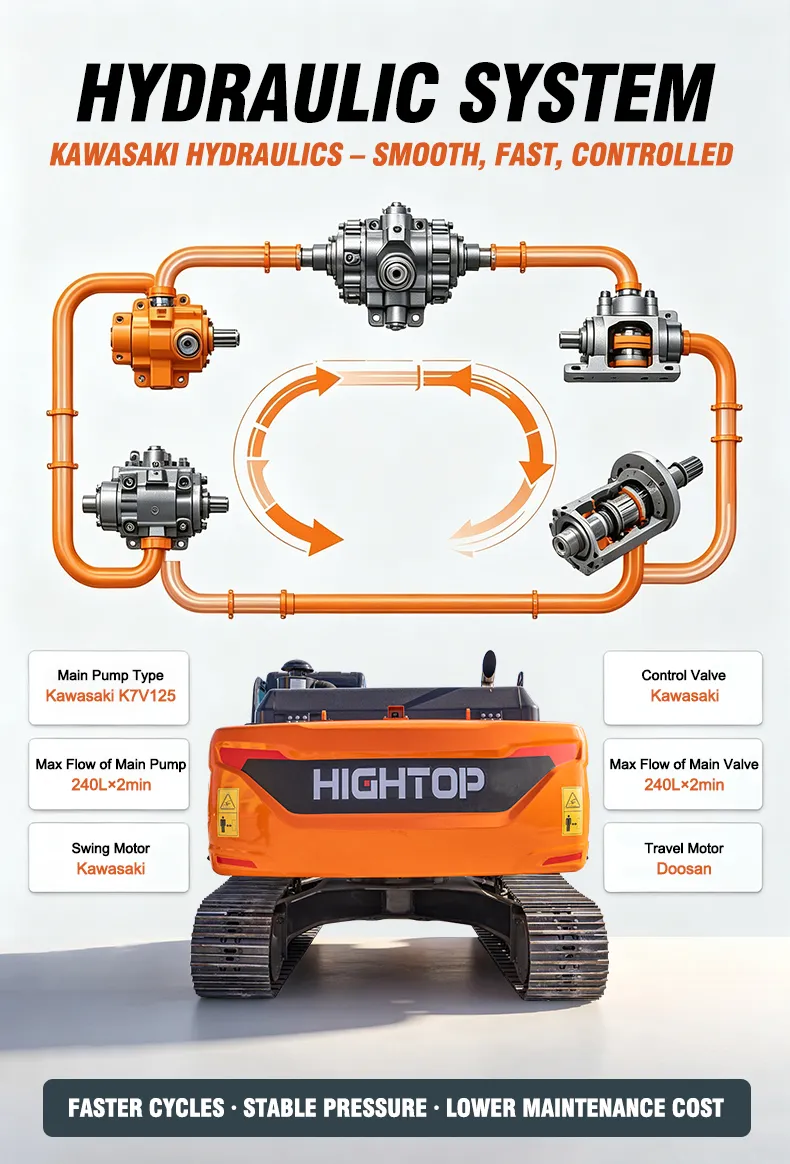

Kawasaki Hydraulics — Specified by Brand, Not by Default
The HT260 hydraulic system uses:
| Component | Brand / Model |
|---|---|
| Main Pump | Kawasaki K7V125 |
| Control Valve | Kawasaki |
| Swing Motor | Kawasaki |
| Travel Motor | Doosan |
Maximum main pump flow is 240 L/min × 2. This is the flow rate that supports the HT260's 169 kN bucket digging force and 11.1 rpm swing speed without hydraulic fade under sustained loading.
For buyers comparing 25-ton machines, the Kawasaki specification is a procurement filter. It signals that the hydraulic system is designed for continuous quarry and road construction duty, not intermittent work.

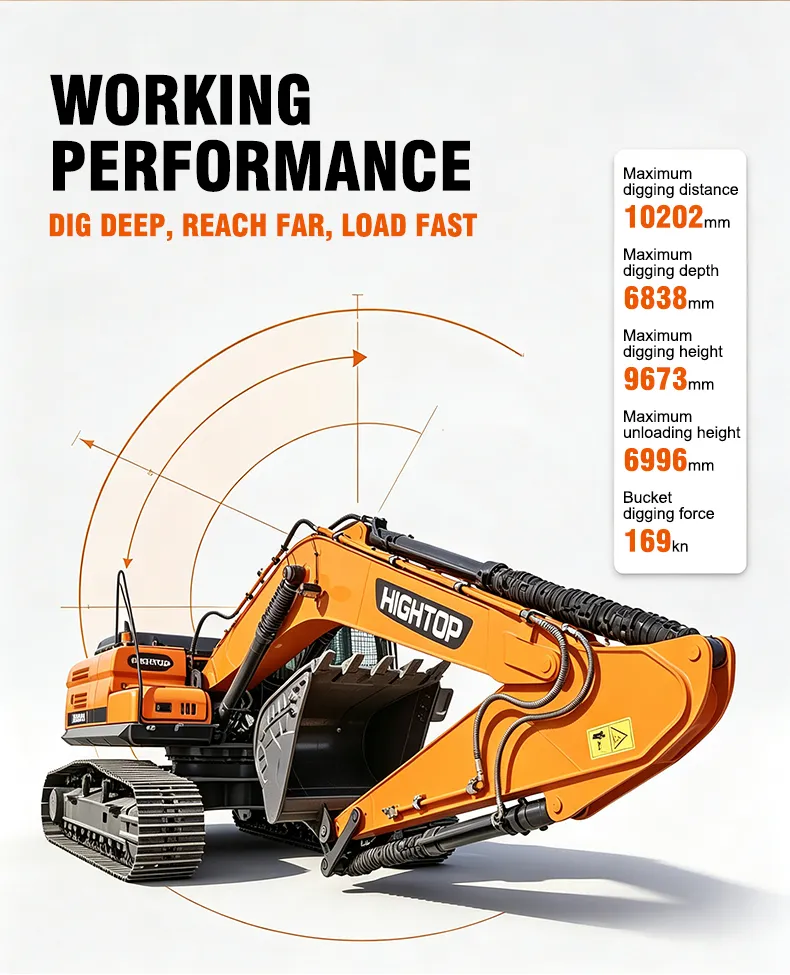

Working Performance Built for Deep Excavation
- Maximum digging depth 6838 mm — deep utility trenches, foundation work, drainage
- Maximum digging reach 10202 mm — long-reach loading and stockpiling
- Maximum digging height 9673 mm — truck loading and high-wall work
- Bucket digging force 169 kN / arm digging force 127 kN — dense and compacted ground
- Standard bucket 1.4 m³ — production-class cycle volumes
Stability, Travel and Jobsite Capability
| Parameter | Value |
|---|---|
| Maximum Traction Force | 217 kN |
| Gradeability | 16.7° |
| Travel Speed | 6.1 / 3.6 km/h |
| Ground Pressure | 52 kPa |
| Track Shoe Width | 600 mm |
| Number of Track Shoes | 51 pc |

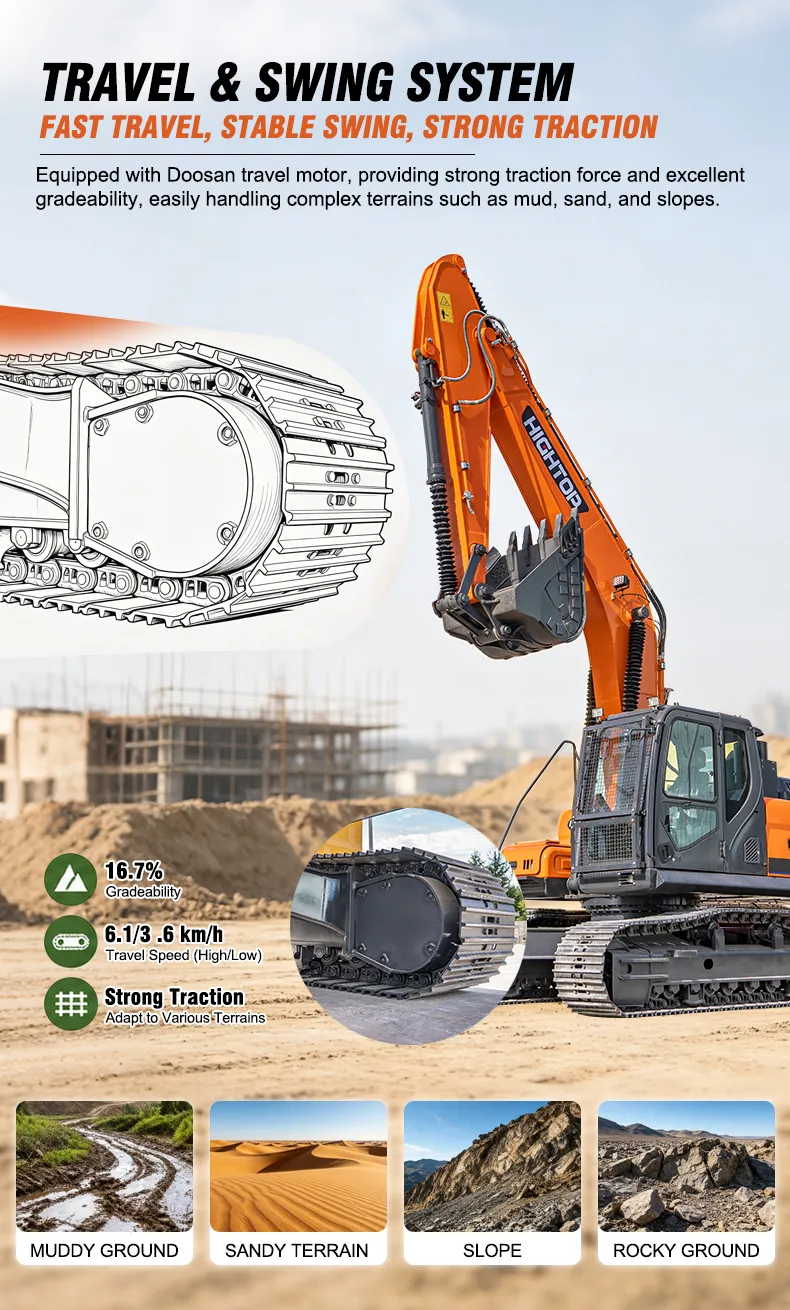

The Doosan travel motor delivers 217 kN traction force, allowing the HT260 to climb 16.7° grades — the working reality of quarry benches and unpaved access roads.

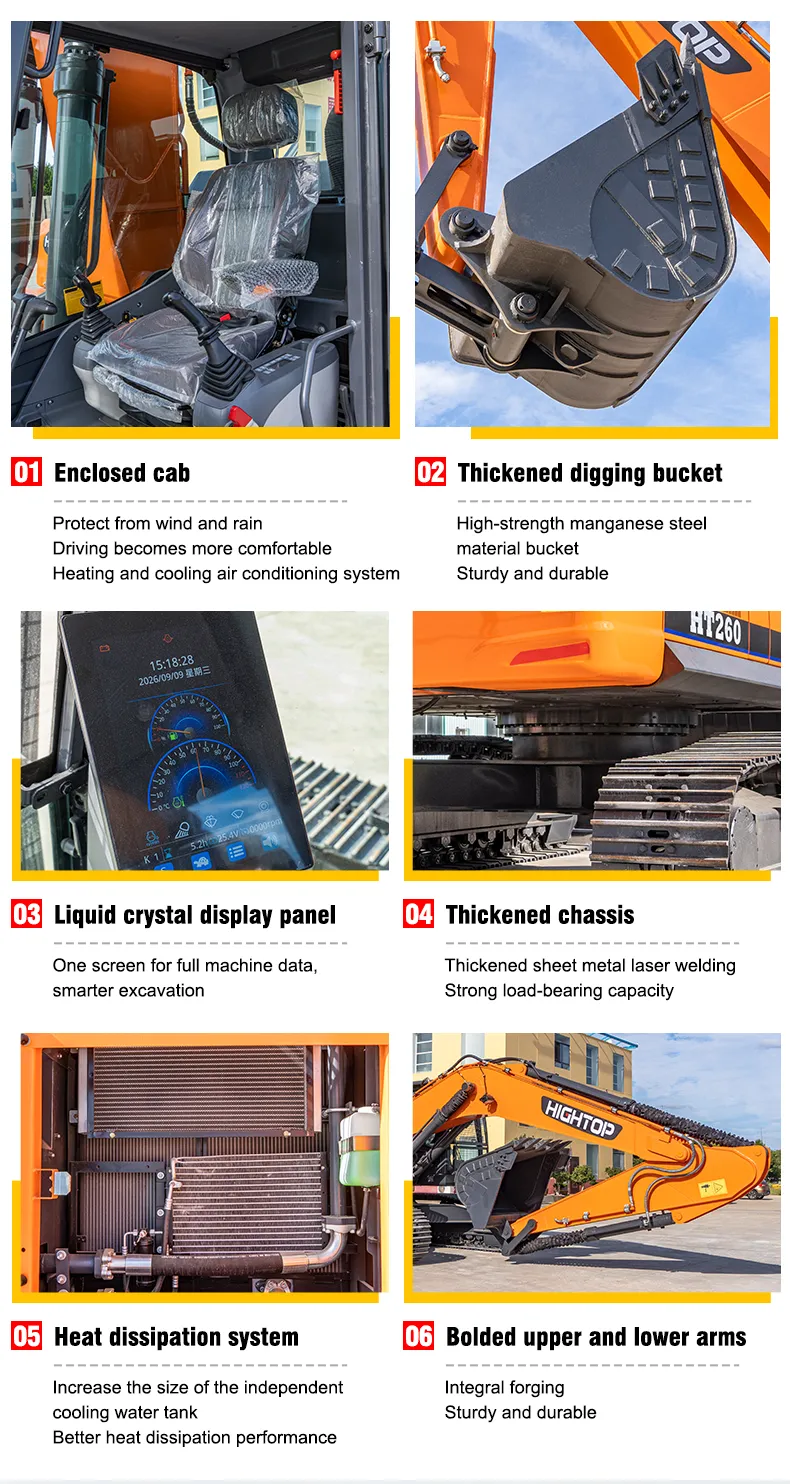

Operator Environment
- Enclosed cab with heating and cooling air conditioning
- Liquid crystal display panel consolidating machine data on one screen
- Cab top height from ground: 2995 mm
For rental fleet operators and contractors running multi-shift schedules, the climate-controlled cab reduces operator fatigue and supports consistent productivity across climates.
Who the HT260 Is Built For
| Buyer Profile | Why the HT260 Fits |
|---|---|
| Quarry operators | 169 kN digging force and 1.4 m³ bucket for face loading and bench work |
| Road construction contractors | 10,202 mm reach and 9673 mm digging height for loading and cut work |
| Rental fleet operators | Cummins and Kawasaki components simplify service planning across markets |
| Equipment distributors | Branded component configuration is easier to market to end users |
| Trenching and utility contractors | 6838 mm digging depth with 1.4 m³ production cycle |
Transport and Logistics
At 25.4 tons and 10,082 mm transport length, the HT260 requires logistics planning before order confirmation. Hightop provides:
- Full transport dimensions (10082 × 3200 × 3235 mm)
- Tail swing radius (3040 mm) for site access planning
- Shipping coordination from Qingdao port
- Export documentation and pre-shipment inspection support
OEM / ODM and Dealer Cooperation
Hightop supports custom branding, attachment pre-configuration, specification adjustments within the HT260 platform, and bulk order pricing with dealer territory discussion.
Request a Factory-Direct HT260 Quotation
Provide the following for an accurate quotation:
- Bucket capacity requirement (standard 1.4 m³ or alternative)
- Attachment needs at time of order
- Quantity and dealer/OEM requirements
- Destination port
- Transport constraints if site access is restricted
Hightop's export sales team responds with specification confirmation, shipping dimensions, lead time and commercial terms.
Contact Hightop for HT260 factory-direct pricing and export cooperation.

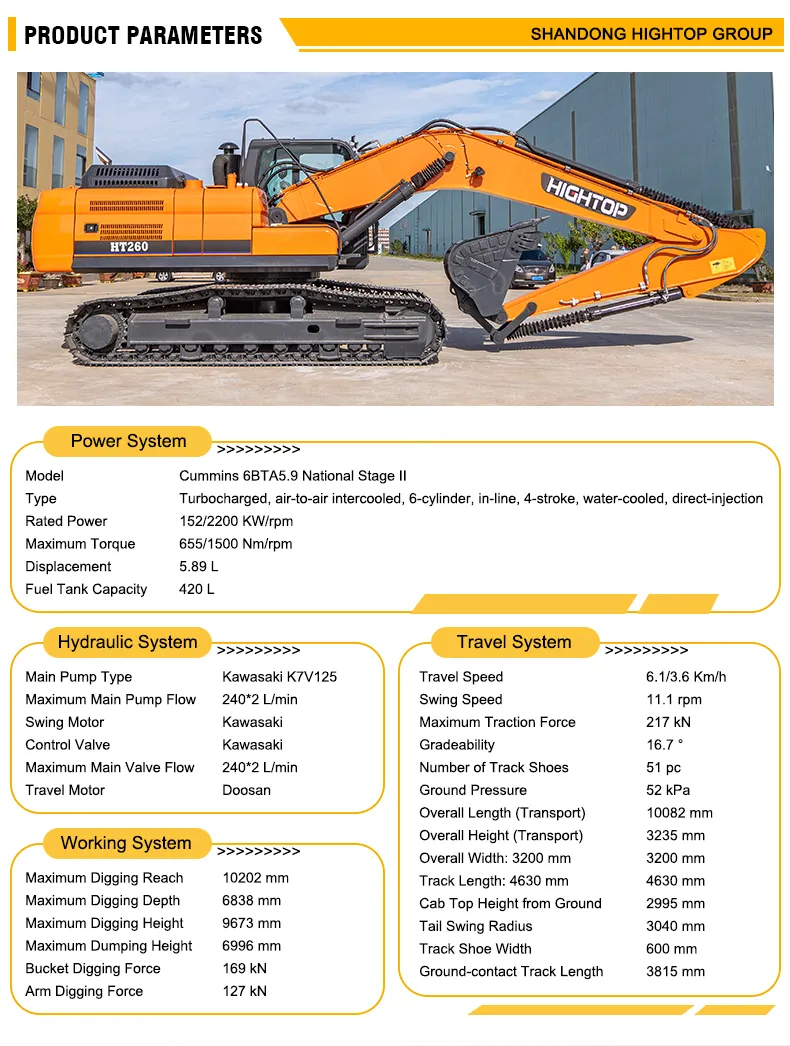

HT260 Technical Specifications
| General Specifications | |
|---|---|
| Model | HT260 |
| Operating Weight | 25400 kg (25.4 T) |
| Standard Bucket Capacity | 1.4 m³ |
| Power System | |
| Engine Model | Cummins 6BTA5.9 |
| Engine Type | Turbocharged, air-to-air intercooled, 6-cylinder, in-line, 4-stroke, water-cooled, direct-injection |
| Rated Power | 152 kW / 2200 rpm |
| Maximum Torque | 655 Nm / 1500 rpm |
| Displacement | 5.89 L |
| Fuel Tank Capacity | 420 L |
| Hydraulic System | |
| Main Pump Type | Kawasaki K7V125 |
| Maximum Main Pump Flow | 240 L/min x 2 |
| Swing Motor | Kawasaki |
| Control Valve | Kawasaki |
| Maximum Main Valve Flow | 240 L/min x 2 |
| Travel Motor | Doosan |
| Working System | |
| Maximum Digging Reach | 10202 mm |
| Maximum Digging Depth | 6838 mm |
| Maximum Digging Height | 9673 mm |
| Maximum Dumping Height | 6996 mm |
| Bucket Digging Force | 169 kN |
| Arm Digging Force | 127 kN |
| Travel System | |
| Travel Speed | 6.1 / 3.6 km/h |
| Swing Speed | 11.1 rpm |
| Maximum Traction Force | 217 kN |
| Gradeability | 16.7° |
| Number of Track Shoes | 51 pc |
| Ground Pressure | 52 kPa |
| Track Shoe Width | 600 mm |
| Track Length | 4630 mm |
| Ground-contact Track Length | 3815 mm |
| Dimensions | |
| Overall Length (Transport) | 10082 mm |
| Overall Height (Transport) | 3235 mm |
| Overall Width | 3200 mm |
| Cab Top Height from Ground | 2995 mm |
| Tail Swing Radius | 3040 mm |
HT260 Sourcing & Export FAQ
Why does the HT260 use only a Cummins engine instead of dual options?
The HT260 is built around the Cummins 6BTA5.9 — a 6-cylinder, 152 kW engine with global parts distribution and service familiarity. In the 25-ton class, buyers typically prioritize verified powertrain performance and parts availability over multiple engine choices. The single-engine configuration keeps the hydraulic system matched to one power curve.
What is the advantage of the Kawasaki hydraulic system?
Kawasaki K7V125 main pump, control valve and swing motor are specified components with proven service life in quarry and road construction duty. Maximum main pump flow of 240 L/min × 2 supports the 169 kN bucket digging force and 11.1 rpm swing speed under continuous load without hydraulic fade.
Can the HT260 be ordered with my own brand name?
Yes. Hightop supports OEM and ODM requests on the HT260 platform, including custom branding, paint scheme and specification adjustments. Provide your brand requirements and target market during inquiry, and the export team will confirm feasibility and lead time.
What is the lead time for HT260 production?
Lead time depends on the confirmed configuration — bucket capacity, attachment pre-installation and branding requirements. Hightop confirms the production schedule in the quotation so buyers can plan transport and project timelines.
How is the HT260 shipped given its 25.4-ton weight?
HT260 units are shipped from Qingdao port, China. Transport dimensions are 10082 × 3200 × 3235 mm, with a tail swing radius of 3040 mm. Hightop coordinates pre-shipment inspection, loading documentation and export clearance, and confirms FCL or breakbulk shipping based on quantity and destination.
Can Hightop provide documentation for government or tender projects?
Yes. Hightop can provide specification sheets, configuration confirmation and export documentation to support tender submissions. Provide the required document list and compliance criteria during inquiry.
What spare parts support is available for the HT260?
Hightop supplies spare parts for the HT260 and can discuss parts stocking arrangements for distributors and fleet operators. Cummins and Kawasaki components benefit from established global parts distribution channels. Contact the team with your parts requirements and service plan.
