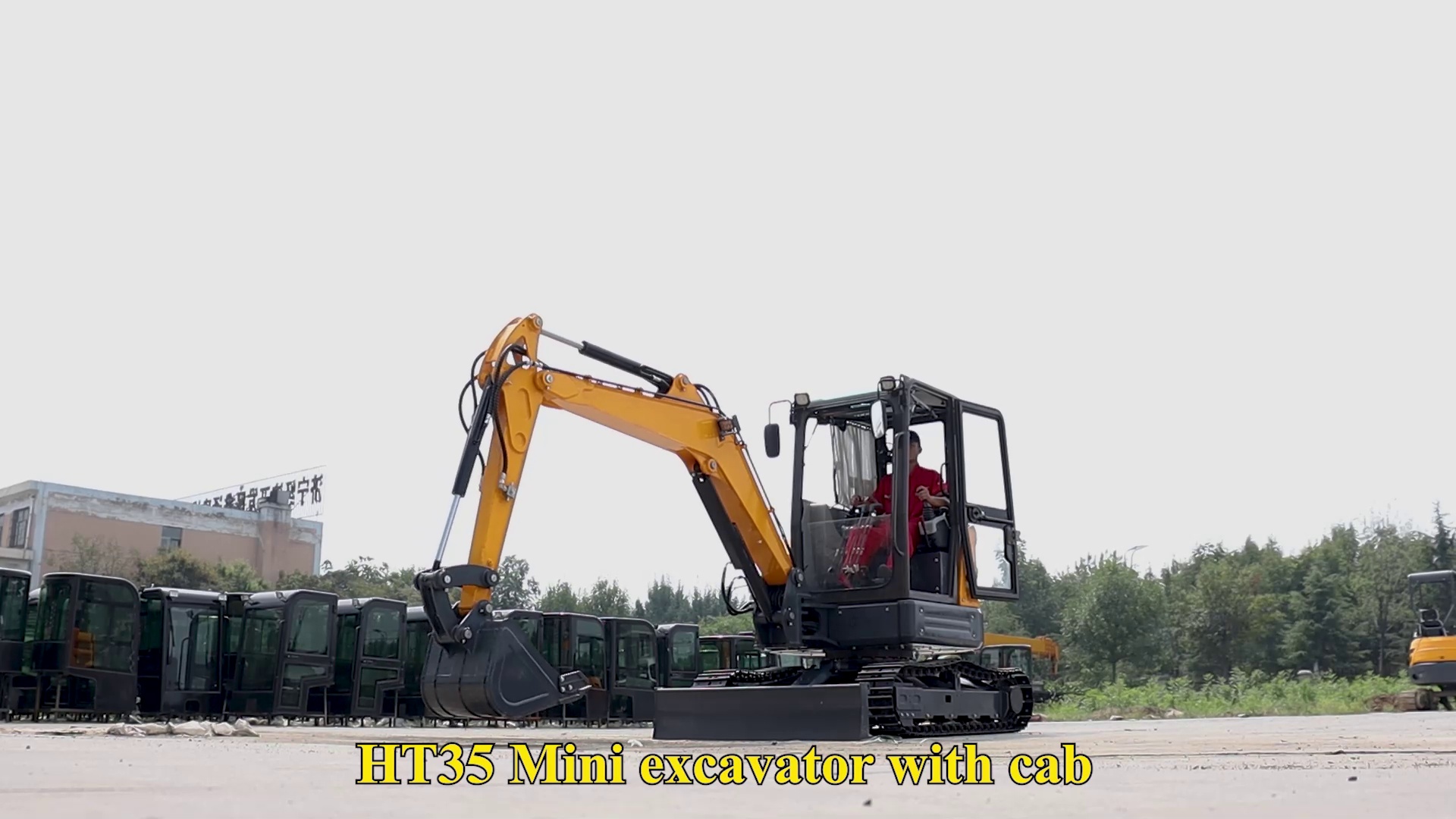

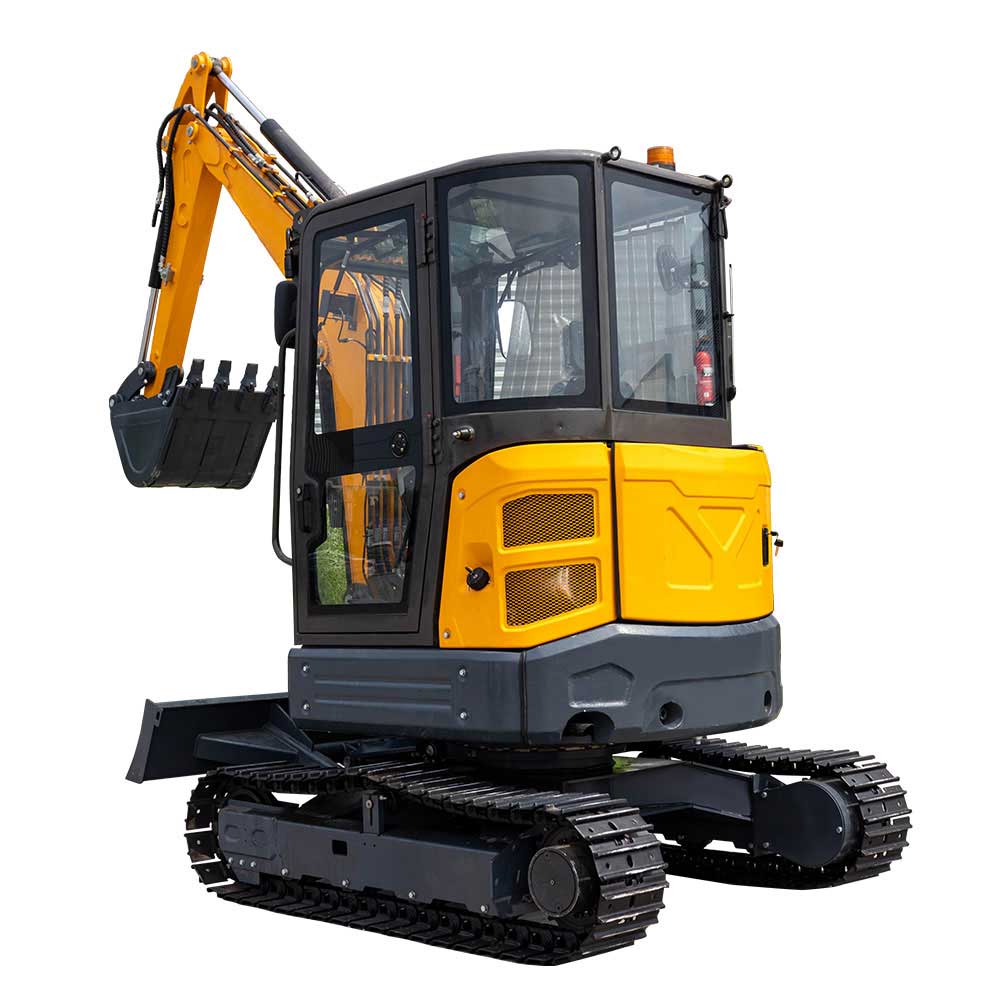

HT35 3500kg Mini Excavator
3.5 ton mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
3.5 ton mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions
Machine size |
|
Total length/transportation length(A): |
5029mm |
Total width(B) |
1720mm |
Upper width(D): |
1554mm |
Total height (shed roof/cab roof)(C): |
2580mm |
Standard track shoe width(F): |
300mm |
Minimum ground clearance(H): |
319mm |
Tail turnina radius(l): |
885mm |
Track ground length(J): |
1645mm |
Track length(K): |
2150mm |
Bulldozer Ground height(R) |
393mm |
Bulldozer digging depth(T): |
461mm |
Operating range |
|
Maximum digging height (a): |
4938mm |
Maximum unloading height(b) |
3376mm |
Maximum digging depth(c): |
3106mm |
Maximum digging distance(d): |
5175mm |
Minimum radius of turn(e): |
2634mm |
Max. Height @ Min. Rotation Radius(f) |
3716mm |
Performance parameter |
|
Operating weight (kG) |
3500kg |
SuCKetcaoaCw |
0.12m³ |
Rated power : |
18.5KW/2200rpm |
Turning speed : |
9r/min |
Climbing ability : |
58% |
Bucket digging force : |
30.4KN |
Bucket rod digging force : |
18.2KN |
Main parts |
|
Engine :Kubota D1703 |
Valve pressure:24MP |
Flow sharing main valve :HVSE-09-09-P270-BE212 |
Pump displacement:40cc |
Swash plate axial plunger variable pump :HP5V45/AV10RB2S2MGA-L1/1-HT1 |
Travel speed :4.2/2.4km/h |
Travel motor :Variable plunger motor |
Enqine oil capacity :5.1L |
Fuel tank :Capacity 50L |
Valve svstem flow :79.2L/min |
Cooling system :Capacity 5.05L |
Pump Max.speed :3250r/min |
Hydraulic oil tank :Capacity 55L |
