HT15KS Mini Excavator
HT15KS Mini Excavator Instruction
The HT15KS mini excavator is a compact yet highly practical engineering tool, with specifications that highlight its unique advantages in confined spaces.
In terms of overall dimensions, it has a transport length of just 2,270 mm, a total width of 1,000 mm, an upper width of 940 mm, and a total height (cab top) of 2,290 mm. This compact design allows it to maneuver effortlessly through narrow sites. The standard track plate width is 180mm, with a track gauge of 820mm, a track ground contact length of 890mm, and a track length of 1235mm. Combined with a 30-degree climbing ability, it ensures stable operation across various terrains. The blade lift height is 95 mm, the digging depth is 220 mm, and the tail swing radius is 870 mm, further enhancing its operational flexibility in confined spaces.
In terms of operational range, this excavator performs exceptionally well. The maximum digging height reaches 2620mm, and the maximum unloading height is 1760mm, meeting the needs of different height requirements; the maximum digging depth is 1750mm, and the maximum digging distance is 2900mm, enabling it to handle various digging tasks; the minimum swing radius is 1400mm, and the maximum height at the minimum swing radius is 2055mm, allowing for smooth maneuvering in narrow areas.
In terms of performance parameters, it has an operating weight of 1000 kg, a bucket capacity of 0.02 m³, and adopts a backhoe working device configuration, making it suitable for small-scale earthwork operations and similar scenarios.
Key components are selected from reliable products, with the engine being the Kop KD2V80 and the main valve from Tengfei, ensuring stable operation of the entire machine. Whether for small-scale construction projects, garden renovations, or agricultural work, the HT15KS mini excavator can serve as a reliable assistant thanks to its flexible and efficient characteristics.
| HT15KS Mini Excavator — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Transportation Length | 2270mm |
| Total Width | 1000mm |
| Upper Width | 940mm |
| Total Height (Cab Top) | 2290mm |
| Standard Track Width | 180mm |
| Track Gauge | 820mm |
| Height of Bulldozer from the Ground | 95mm |
| Excavation Depth of Bulldozer | 220mm |
| Tail Turning Radius | 870mm |
| Ground Length of Track | 890mm |
| Track Length | 1235mm |
| Working Range (Unit: mm) | |
| Maximum Digging Height | 2620mm |
| Maximum Unloading Height | 1760mm |
| Maximum Digging Depth | 1750mm |
| Maximum Digging Distance | 2900mm |
| Minimum Turning Radius | 1400mm |
| Maximum Height at Minimum Turning Radius | 2055mm |
| Performance Parameters | |
| Working Mass | 1000kg |
| Bucket Capacity | 0.02m³ |
| Climbing Capacity | 30° |
| Main Components | |
| Engine | KOOP KD2V80 12Kw, Water Cooling |
| Main Valve | TENGFEI |

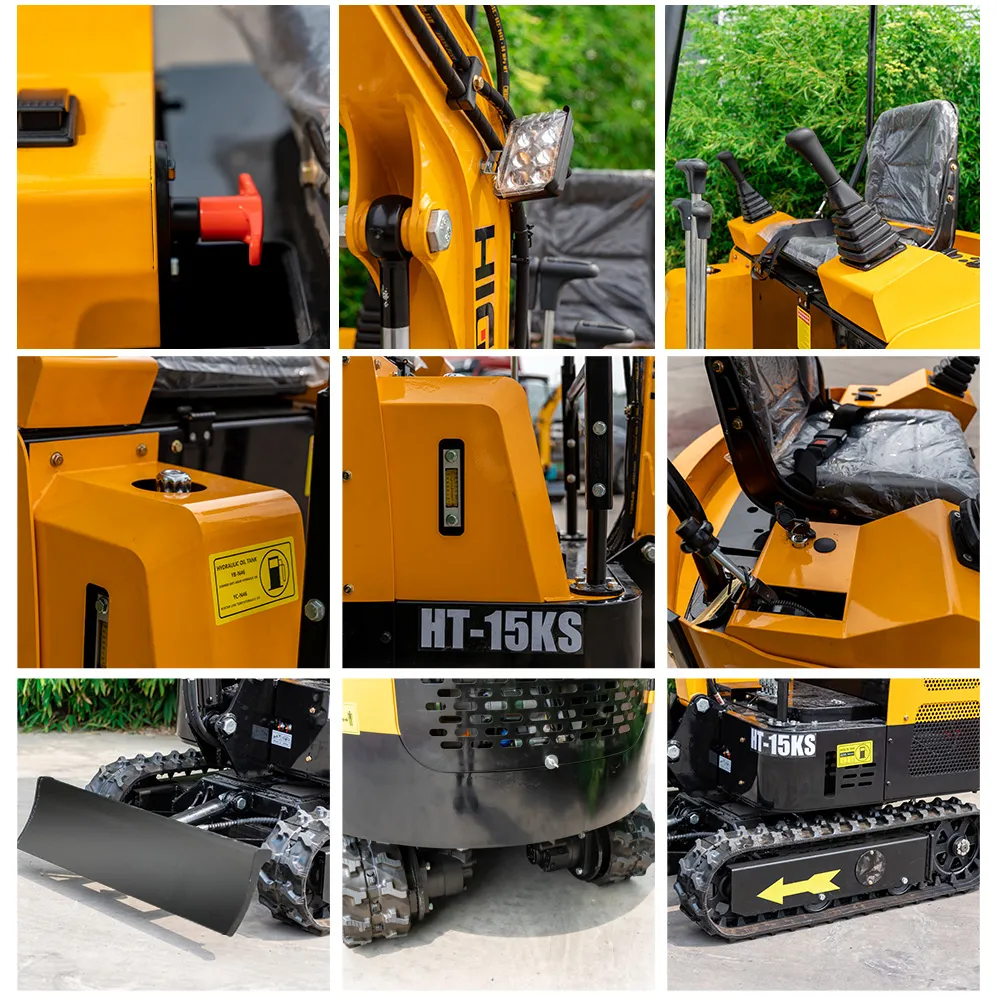

HT15KS Mini Excavator Detail
