HT18-1 1.8T Mini Excavator
The HT18-1 1.8-ton mini excavator for sale is a versatile compact digger featuring a retractable track system and a Kubota engine for high-precision utility works in narrow spaces. Engineered for superior breakout force and stability, this small hydraulic excavator ensures maximum efficiency and a high ROI for rental fleets and professional contractors. Inquire today for factory-direct wholesale pricing and professional B2B support on our durable mini crawler excavator range.
.jpg)
description1
Parameter
| HT18 Mini Excavator – Technical Specifications | |
|---|---|
| Dimensions (mm) | |
| Transport Length (A) | 2450 mm |
| Overall Width (B) | 1120 mm |
| Upper Structure Width (D) | 990 mm |
| Overall Height (to Cab Top) (C) | 2280 mm |
| Standard Track Width (F) | 200 mm |
| Track Length (K) | 1350 mm |
| Undercarriage (mm) | |
| Track Gauge (E) | 920 mm |
| Ground Clearance (with Dozer) (G) | 105 mm |
| Tail Swing Radius (I) | 795 mm |
| Track Ground Contact Length (J) | 1050 mm |
| Dozer Digging Depth (H) | 270 mm |
| Working Range (mm) | |
| Max. Digging Height (a) | 2785 mm |
| Max. Dumping Height (b) | 1860 mm |
| Max. Digging Depth (c) | 2050 mm |
| Max. Digging Reach (d) | 3130 mm |
| Min. Swing Radius (e) | 1655 mm |
| Max. Height at Min. Swing Radius (f) | 2205 mm |
| Performance Specifications | |
| Operating Weight | 1425 kg |
| Bucket Capacity | 0.02 m³ |
| Working Device Type | Backhoe |
| Gradeability | 30° |
| Key Components | |
| Engine | Kubota |
| Main Control Valve | North (Beifang) |

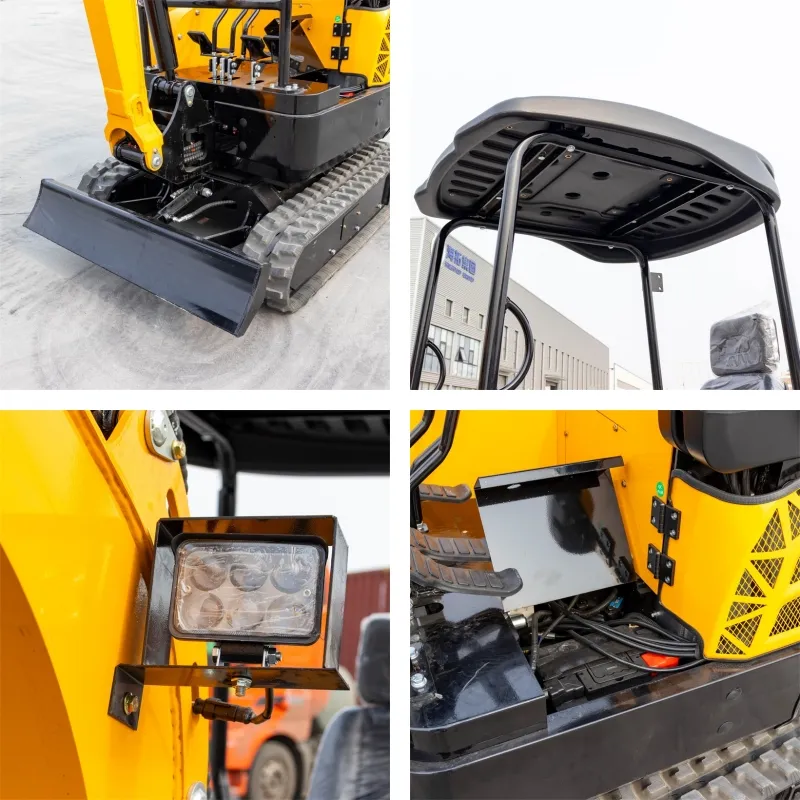

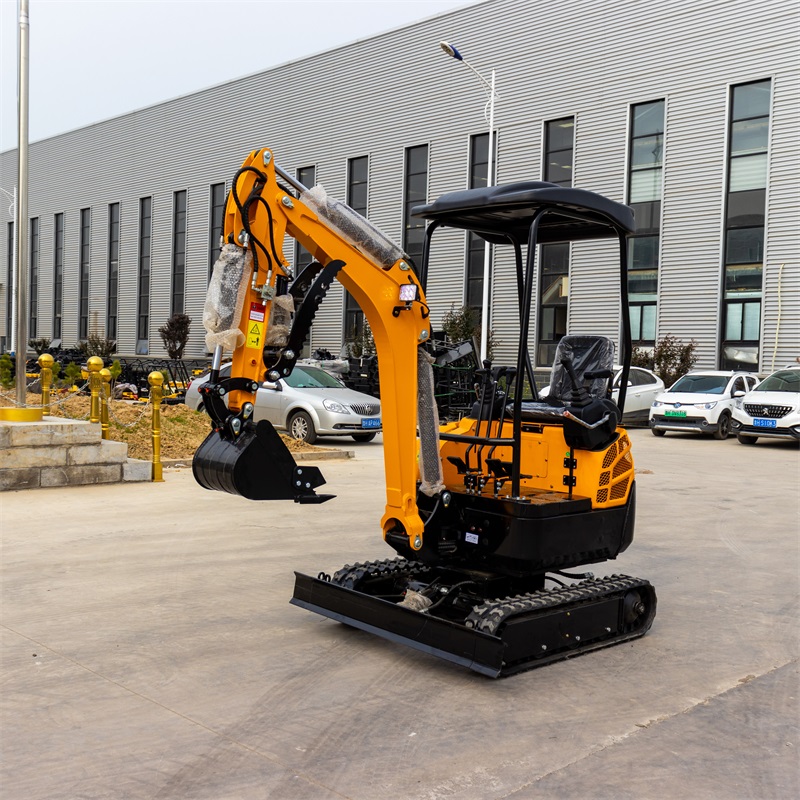

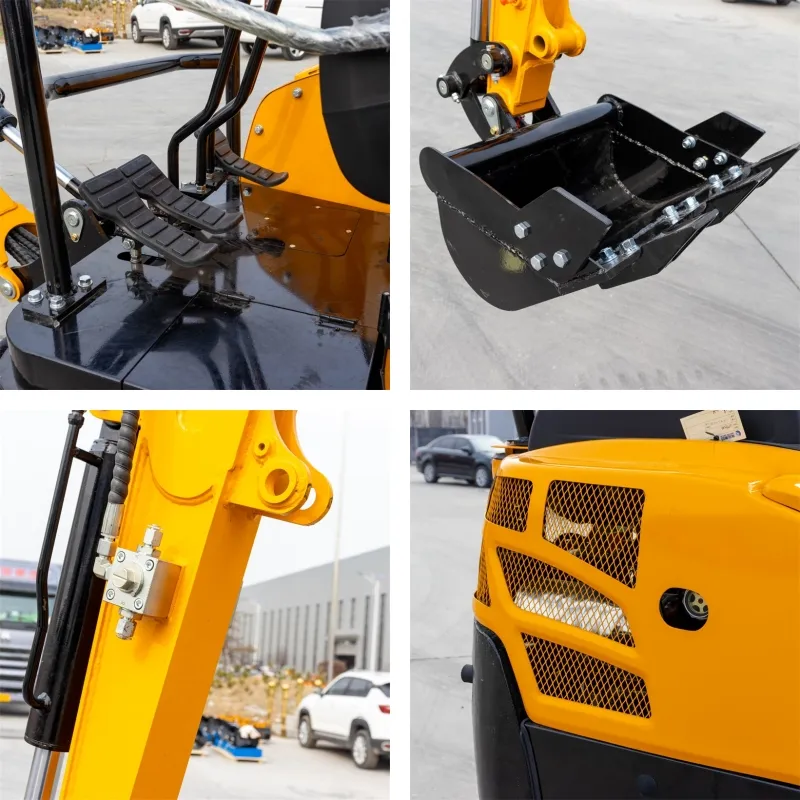

HT18-1 Mini Excavator images
.webp)
.webp)
